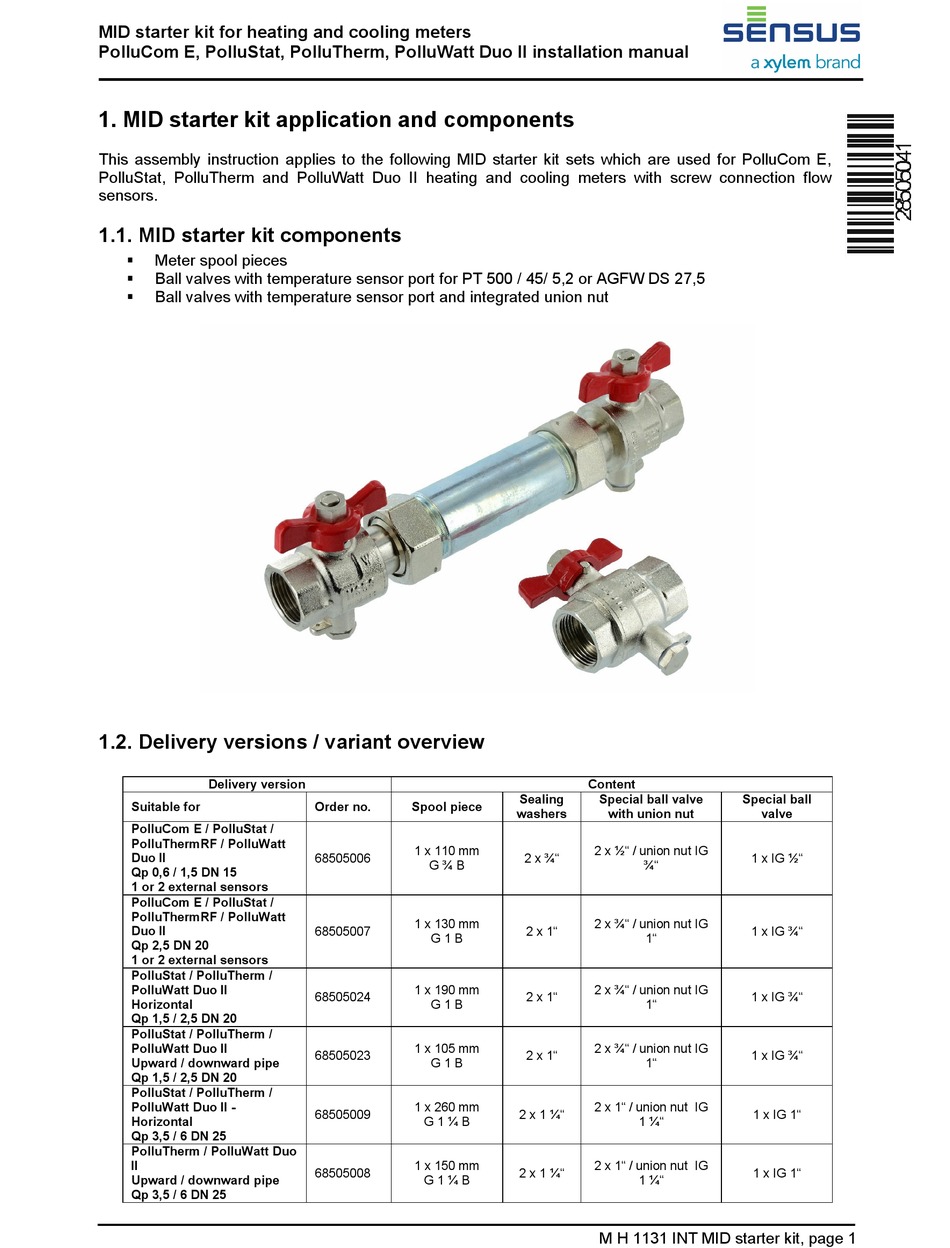

Xylem SENSUS MID Bedienungsanleitung Seite 5

MID starter kit for heating and cooling meters
PolluCom E, PolluStat, PolluTherm, PolluWatt Duo II installation manual
1. MID starter kit application and components
This assembly instruction applies to the following MID starter kit sets which are used for PolluCom E,
PolluStat, PolluTherm and PolluWatt Duo II heating and cooling meters with screw connection flow
sensors.
1.1. MID starter kit components
 Meter spool pieces
 Ball valves with temperature sensor port for PT 500 / 45/ 5,2 or AGFW DS 27,5
 Ball valves with temperature sensor port and integrated union nut
1.2. Delivery versions / variant overview
Delivery version
Suitable for
PolluCom E / PolluStat /
PolluThermRF / PolluWatt
Duo II
Qp 0,6 / 1,5 DN 15
1 or 2 external sensors
PolluCom E / PolluStat /
PolluThermRF / PolluWatt
Duo II
Qp 2,5 DN 20
1 or 2 external sensors
PolluStat / PolluTherm /
PolluWatt Duo II
Horizontal
Qp 1,5 / 2,5 DN 20
PolluStat / PolluTherm /
PolluWatt Duo II
Upward / downward pipe
Qp 1,5 / 2,5 DN 20
PolluStat / PolluTherm /
PolluWatt Duo II -
Horizontal
Qp 3,5 / 6 DN 25
PolluTherm / PolluWatt Duo
II
Upward / downward pipe
Qp 3,5 / 6 DN 25
Order no. Spool piece
1 x 110 mm
68505006
G ¾ B
1 x 130 mm
68505007
G 1 B
1 x 190 mm
68505024
G 1 B
1 x 105 mm
68505023
G 1 B
1 x 260 mm
68505009
G 1 ¼ B
1 x 150 mm
68505008
G 1 ¼ B
Content
Sealing Special ball valve
washers with union nut
2 x ½" / union nut IG
2 x ¾"
¾"
2 x ¾" / union nut IG
2 x 1"
1"
2 x ¾" / union nut IG
2 x 1"
1"
2 x ¾" / union nut IG
2 x 1"
1"
2 x 1" / union nut IG
2 x 1 ¼"
1 ¼"
2 x 1" / union nut IG
2 x 1 ¼"
1 ¼"
M H 1131 INT MID starter kit, page 1
Special ball
valve
1 x IG ½"
1 x IG ¾"
1 x IG ¾"
1 x IG ¾"
1 x IG 1"
1 x IG 1"
