Avantree BTHT-4186 Bedienungsanleitung

Bluetooth Transmitter and
Headphone set
Model No: BTHT-4186
IMPORTANT NOTICE
step-by-step video tutorial
*Please watch
from avantree.com/ht4186/video
No need to pair! Units auto-reconnect each time they're turned on!
Any questions? Contact:
Support@avantree.com
(Response Time: 1 working day)
Self-service Support:
•
More FAQs on support.avantree.com
• 100+ Step by step video Guide – youtube.com/avantree/playlists
Telephone Support (Mon-Fri):
• USA / CANADA +1 800 232 2078 (EN, PST 9am-5pm)
• EU / Asia telephone No. refer to http: //www.avantree.com/contact-us
What's in the box.
1 2 3 4

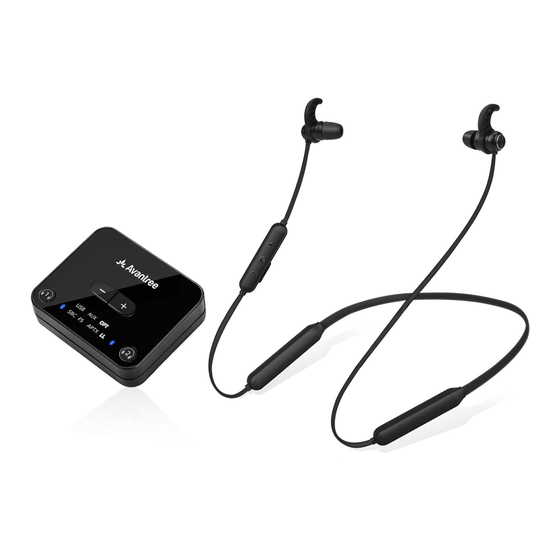

HT 4186 Audikast Plus Optical 3.5mm
BT Headphones BT Transmitter Audio Cable Audio Cable
Product overview
Audio input indicators
Codec indicators
USB AUX OPT
for HT4186 headphone for 2nd headphone
SBC FS APTX LL LL
Bluetooth status
Bluetooth status
indicator for
indicator for
How to use
EN
NOTE: How do I wear these earphones? Please search for "HT4186" on support.avantree.com
User Manual EN
Bedienungsanleitung DE
Check your TV/Audio Source output options
1
Mode d'emploi FR
Manuale di Istruzioni
I T
Manual de Usuario
ES
Jack
Options
Natively
Supported?
Please refer
before installation.
to Point:
2
Turn on Transmitter and Headphones
2.1 Powering up transmitter
Powering up the transmitter with the USB cable provided. Connect it to a TV USB
port or any other USB charger that supports 5V/500mA-2A.
2.2 Turn on both devices
Turn on the transmitter - Slide on/off switch to "ON" position,
BLUE
Model No:BTHT-4186-BLK
Turn on the headphones - Press and hold
Dispose of the packaging and
sight of
this product in accordance with
the latest provisions. They will auto-reconnect, indicators are: 1) Headphones say " Your device is
connected". 2)
Z-PKQG-4186-F-V2
BLUE.
Connect Transmitter to your TV/audio source
3
NOTE: How to use these with my PC? Please search for "HT4186" on support.avantree.com
5 6
3.1 Optical Audio Out
3.5mm to RCA Micro USB
Audio Cable Power Cable
Now, you should be able to hear sound from headphones, if no sound:
a. Ensure your TV Speaker is set to"External Speaker"
b. Ensure TV Audio Format is set to"PCM"or turn o "Dolby/DTS"(This is IMPORTANT)
C. Ensure the sampling rate of audio source is not more than 16bit/48KHz.
O FF
O N/
Fig 3-2 Set TV speaker to "External Speaker"
X
AU
A L
IN TI C
DC O P
ON/OFF
Note: Unplug any devices from the 3.5mm AUX jack while using the OPTICAL output.
for FAQ and video guides.
RCA jacks Other RCA
Optical
AUX/3.5mm
labeled jacks (usually
OUT
"AUDIO OUT" audio IN)
R L
3.1 3.2 3.3 N/A
Fig 1-1 Output options
once per 2 seconds.
for 3 seconds until you see the first
BLUE light.
close to on the transmitter and LED on headphones turn SOLID
for FAQ and video guides.
Micro USB power cable
OPTICAL
Optical audio cable
Fig 3-1 Set up Audikast Plus using optical audio out
Speakers Settings
Internal speakers
PCM
External speakers Dolby Digital
Audio Format
DTS
Headset
DTS Neo 2:5
Fig 3-3 Set TV Audio Format to "PCM" (IMPORTANT)
3
3.2 AUX/3.5mm Audio Out
Micro USB power cable
Big Phone
Jack
Speakers
Internal speakers
External speakers
Headset
3.4
3.3 RCA Audio Out (Red/White ports labeled "AUDIO OUT ")
close to flashes
AUX/3.5 mm audio cable
Now, you should be able to hear sound from headphones, if no sound:
a. Ensure use TV Red/White ports labeled "AUDIO OUT", other Red/White ports are
incorrect.
b. Ensure your TV Speaker is set to "External Speaker"
Fig 3-7 Use the right RCA ports
3.4 Receiver with 6.35mm Phone Jack at Front
Micro USB power cable
Note: Do NOT use the RCA ports on the back of an AV receiver. These are not suitable
and will not work or could even permanently damage your Audikast product!
AUX/3.5mm
AUX/3.5 mm audio cable
Fig 3-4 Set up Audikast Plus using AUX/3.5mm audio out
Now, you should be able to hear sound from headphones,
if no sound, ensure your TV speaker is set to "Headset".
Fig 3-5 Set TV speaker to "Headset"
AUDIO OUT
Micro USB power cable
AUDIO OUT
3.5mm to RCA audio cable
Fig 3-6 Set up Audikast Plus using RCA audio out
Speakers
Internal speakers
External speakers
Headset
Fig 3-8 Set TV speaker to "External Speaker"
PHONES
PHONES
6.35mm to
3.5mm Converter (purchase separately)
3.5mm audio cable
Fig 3-9 Set up Audikast Plus using 6.35mm phone jack
