1
EN
3

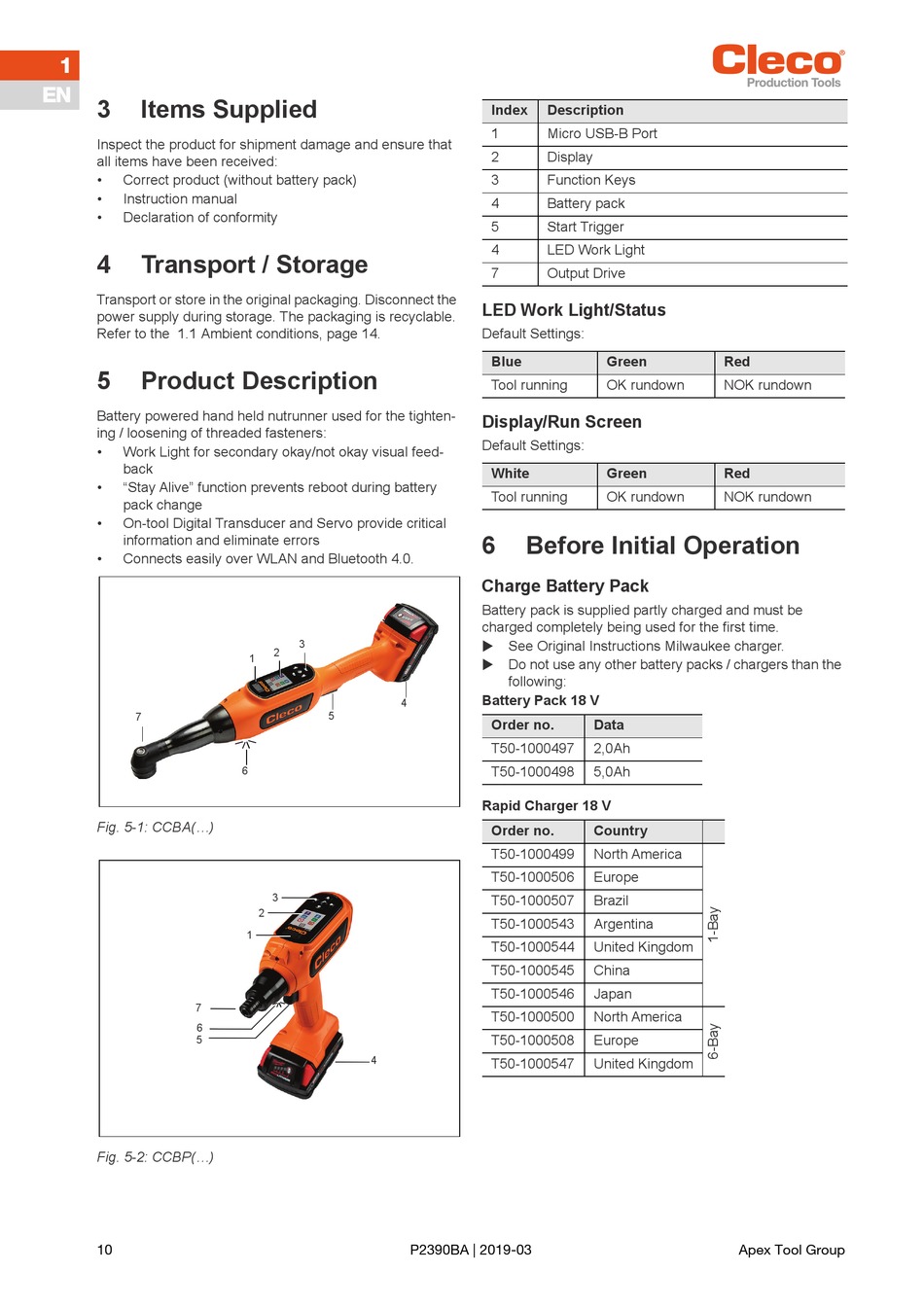

Items Supplied
Inspect the product for shipment damage and ensure that
all items have been received:
•
Correct product (without battery pack)
•
Instruction manual
•
Declaration of conformity
4
Transport / Storage
Transport or store in the original packaging. Disconnect the
power supply during storage. The packaging is recyclable.
Refer to the 1.1 Ambient conditions, page 14.
5
Product Description
Battery powered hand held nutrunner used for the tighten-
ing / loosening of threaded fasteners:
•
Work Light for secondary okay/not okay visual feed-
back
•
"Stay Alive" function prevents reboot during battery
pack change
•
On-tool Digital Transducer and Servo provide critical
information and eliminate errors
•
Connects easily over WLAN and Bluetooth 4.0.
7
Fig. 5-1: CCBA(...)
7
6
5
Fig. 5-2: CCBP(...)
10
3
2
1
4
5
6
3
2
1
4
P2390BA | 2019-03
Index
Description
1
Micro USB-B Port
2
Display
3
Function Keys
4
Battery pack
5
Start Trigger
4
LED Work Light
7
Output Drive
LED Work Light/Status
Default Settings:
Blue
Green
Tool running
OK rundown
Display/Run Screen
Default Settings:
White
Green
Tool running
OK rundown
6
Before Initial Operation
Charge Battery Pack
Battery pack is supplied partly charged and must be
charged completely being used for the first time.
See Original Instructions Milwaukee charger.
Do not use any other battery packs / chargers than the
following:
Battery Pack 18 V
Order no.
Data
T50-1000497
2,0Ah
T50-1000498
5,0Ah
Rapid Charger 18 V
Order no.
Country
T50-1000499
North America
T50-1000506
Europe
T50-1000507
Brazil
T50-1000543
Argentina
T50-1000544
United Kingdom
T50-1000545
China
T50-1000546
Japan
T50-1000500
North America
T50-1000508
Europe
T50-1000547
United Kingdom
Red
NOK rundown
Red
NOK rundown
Apex Tool Group
