V-TAC VT-ST42 Installationsanleitung

INSTALLATION INSTRUCTION
TECHNICAL DATA:
Model
LED Chip
Solar Panel
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please
read these instructions carefully before starting the installation and keep this manual handy
for future reference. If you have any another query, please contact our dealer or local
vendor from whom you have purchased the product. They are trained and ready to serve
you at the best. The warranty is valid for 3 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The
company gives no warranty against damage to any surface due to incorrect removal and
installation of the product. This product is warranted for manufacturing defects only.
WARNING
1
before starting the installation.
2. The light source of this luminaire is not
replaceable, when the light source reaches
its end of life the whole luminaire should
be replaced.
3. Installation must be performed by a
This marking indicates that this
product should not be disposed
of with other household wastes.

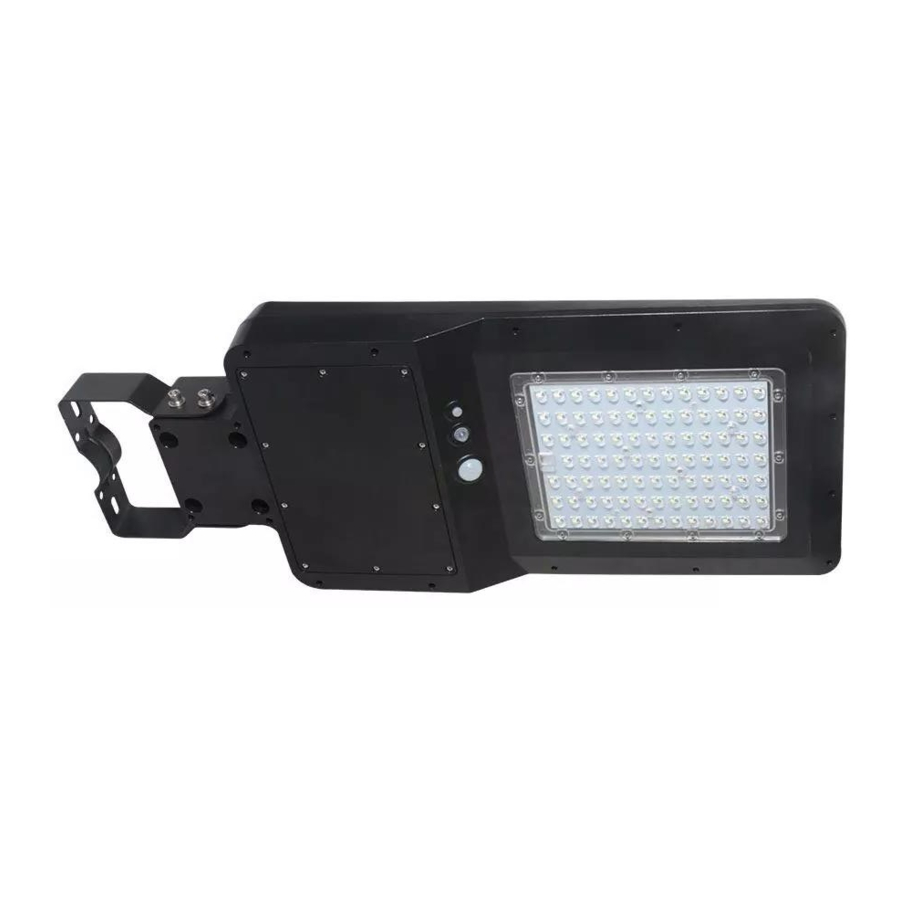

LED SOLAR STREETLIGHT
VT-ST42
40W
4800LM
SMD2835*90PCS
21W / 13.5V , Mono-crystalline silicone
material
32700 / 9.6V / 12000mAh, replaceable
IP65
140 x 70°-TPIII
120°
8 - 12 Meters
706.1 x 289.7 x 73.6mm
3 - 6 Meters
35,000 Hours
WEEE Number: 80133970
3
WARRANTY
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
*
