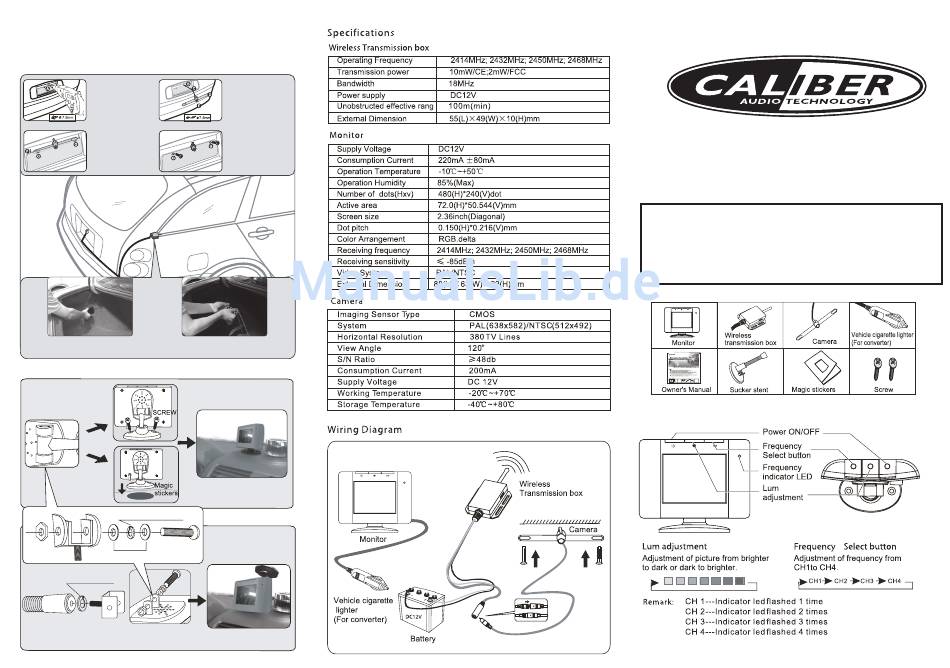

Caliber CAM202 Schnellstartanleitung

ENGLISH
Camera and transmission box installation
1. Drill a hole with
7.5mm ø in the center
of the topside of
licenseplate A
3. Place the bracket F
behind the license
plate
Wireless transmission box
Choose a suitable place in te Securely connect the back-up
trunk to install the box light wire and insulate the wiring
Display installation
Screw
Or
Sticker
lock rings
Screw pads
lock rings
2.Take cable B, pull it
trough the hole.When
the camera E is near to
the hole mount ring C
to seal off the hole
4. Screw G and fix the
bracket to the original
license plate
Fix the monitor on the
dashboard
Fix the monitor below the
windshield
CAM202
Rear view camera with monitor and
wireless transmitter
Note!
This wireless car parking system is only a parking aid, the
manufacturer is in no way responsible for any damage
or accidents caused.This is the full responsibility of the
driver. No claims will be accepted.
