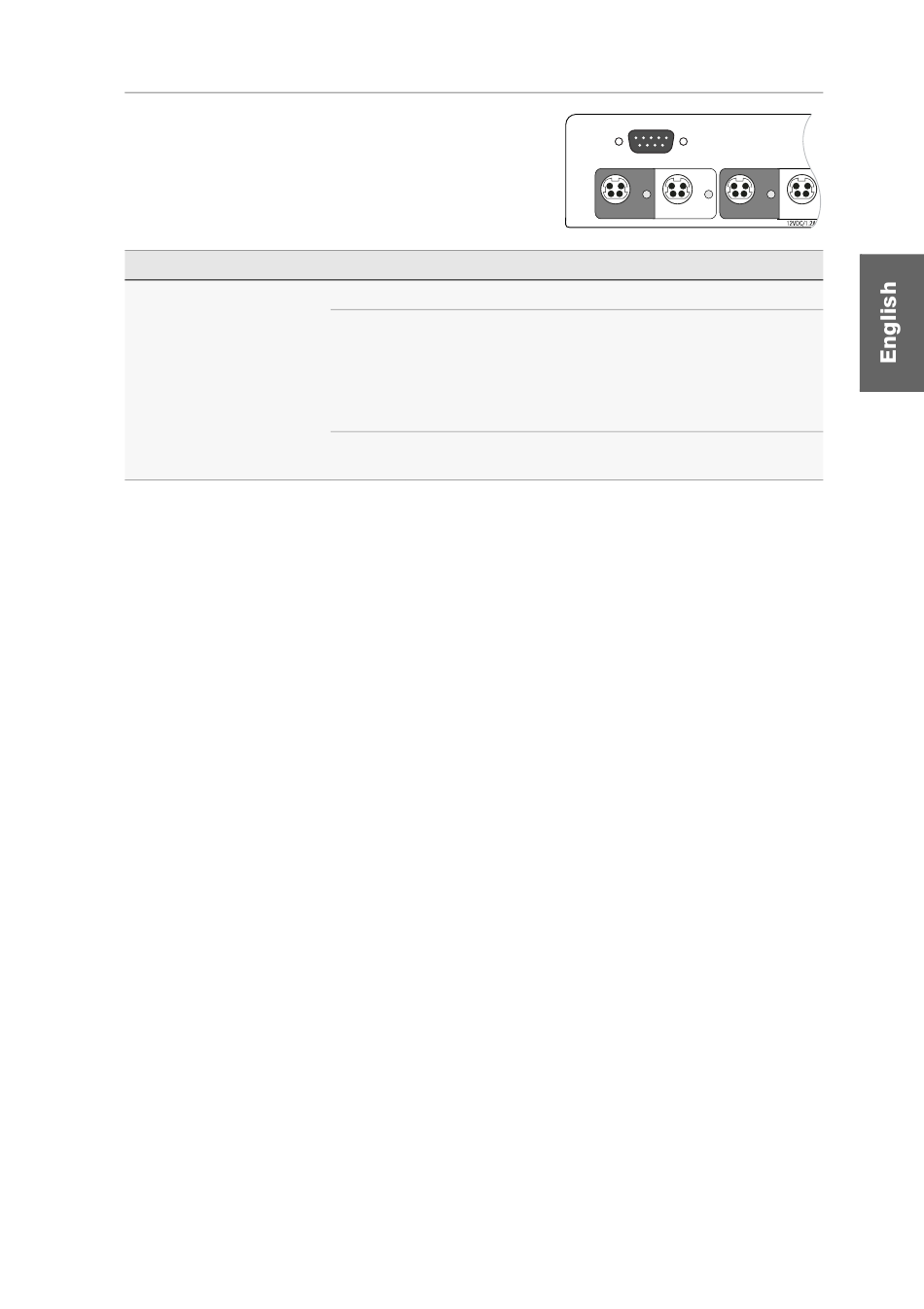

The LED next to each
panel shows the status of the socket.
Section LED
Power Out [x] Status
Power Out socket on the back
Status Meaning
green Voltage available at this output.
red No voltage available at this output.
The socket has been switched off by the user or by the
device.
Note: In case of an overload or a short circuit, the output is
disabled but becomes active after 10 seconds.
green+ High power voltage is available at this output.
red
Status displays
Power Status
1 Power Out 2 3 Power Out
Status Status Status
12VDC/2.4A 12VDC/2.4A
12VDC/1.2A 12VDC/1.2A 12VDC/1.2A
G&D MultiPower-12-HP · 9
