Caliber mcc 100 Bedienungsanleitung

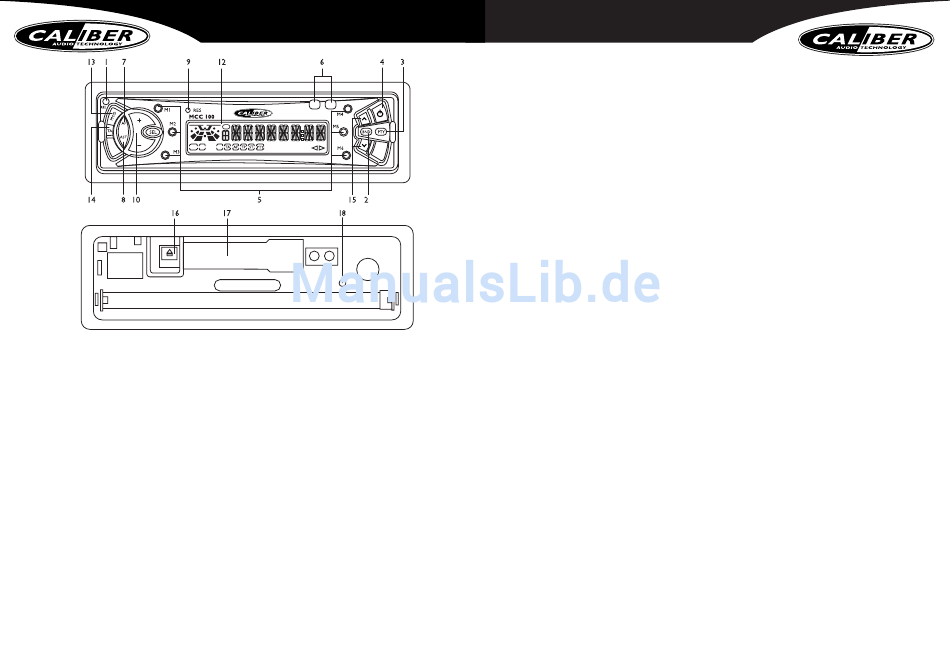

LOCATION AND FUNCTION OF CONTROLS
1. RELEASE BUTTON
Press it to flip down the front panel from the unit, then you can take away the front panel, insert
the tape into the compartment or press EJECT button to eject tape.
2. BAND BUTTON
Press it to change into RADIO mode from TAPE mode, then press it repeatedly to select your
desired radio band.
3. PTY(PROGRAM TYPE) BUTTON
Press it to turn on or off PTY mode.
While selecting PTY TYPE, its selection is made by preset buttons as described in preset key
item.
When PTY is selected, the radio starts to search corresponding PTY information, and stops if the
corresponding PTY information is detected.
If corresponding PTY information does not exist any more, PTY type is automatically exit to
normal mode.
4. POWER BUTTON
Press it to turn on or off the unit.
The unit has the function of previously playing TAPE: In spite of any previous playing mode
(RADIO OR TAPE) , press it to turn on the unit to always begin to play the tape(If there is a tape
in the compartment) after turning off the unit.
GB 1
USER MANUAL
USER MANUAL
5. PRESET STATION [ 1-6 ] BUTTONS
In normal radio mode:
A).If you press one of the preset buttons more than one second, the current station is stored in
the preset memory bank.
B].To recall a preset memory, press one of the preset buttons [1-6].
In PTY radio mode, the function of preset buttons is assigned according to the following list:
DIGITAL BUTTON PROGRAM
1 NEWS
2 INFO
3 SPORT
4 POP M
5 ROCK M
6 CLASSICS M
6. RW/FF PROGRAM BUTTONS
When in TAPE mode, press RW or FF button to fast rewind or forward the tape, and press one
of them again to stop the fast forward or rewind.
When in TAPE mode, press them together at the same time to switch from one side of the tape
to the other side.
7. AF [ALTERNATIVE FREQUENCIES]
When pressed short, AF switching mode is selected and the state of AF switching mode is
displayed by AF segment in display.
Segment off: AF switching mode off.
Segment on: AF switching mode on, and has RDS information.
Segment flashing: AF switching mode is selected, but no RDS information is received yet.
When AF switching mode is selected, the radio checks the signal strength of AF constantly.The
interval of checking time of each AF depends on the signal strength of current station, from a few
minutes for a strong station to a few seconds for a weak station. Every time that a new AF is
stronger than current station, it switches over to that frequency for very short time, and NEW
FREQUENCY is displayed for 1-2 seconds. Because the mute time of AF switching or checking
time is very short, it is almost inaudible in case of normal program.
When pressed long, regional mode ON/OFF is activated.
REGIONAL MODE ON:
AF switching or PI SEEK is implemented to the station from which all PI codes are similar to the
current station. REG of individual segment is turned on also, together with displaying REG ON
on numeric display for a few seconds.
* In this double displaying mode, the some type may not be dislayed in case of not enough-space
type of display.
REGIONAL MODE OFF:
The regional code in the format of PI code is ignored when AF switching or PI SEEK is
implemented. REG of individual segment is turned off together with displaying REG OFF on
numeric display for a few seconds.
8.AUTO SEARCH TUNING(AS/PS) BUTTON
Press it to display all stations memory for 5 seconds each time, while memory digital and
frequency will flash on LCD. If the button is pressed for more than 2 seconds, it will seek station
on current band, then write to the preset memories.
When the auto-storage operation is completed, it will automatically display for 5
GB 2
