6262 INFINIUM/6262-212 INFINIUM/6260 INFINIUM/6260-212 INFINIUM
6262 INFINIUM/6262-212 INFINIUM/6260 INFINIUM/6260-212 INFINIUM Controls

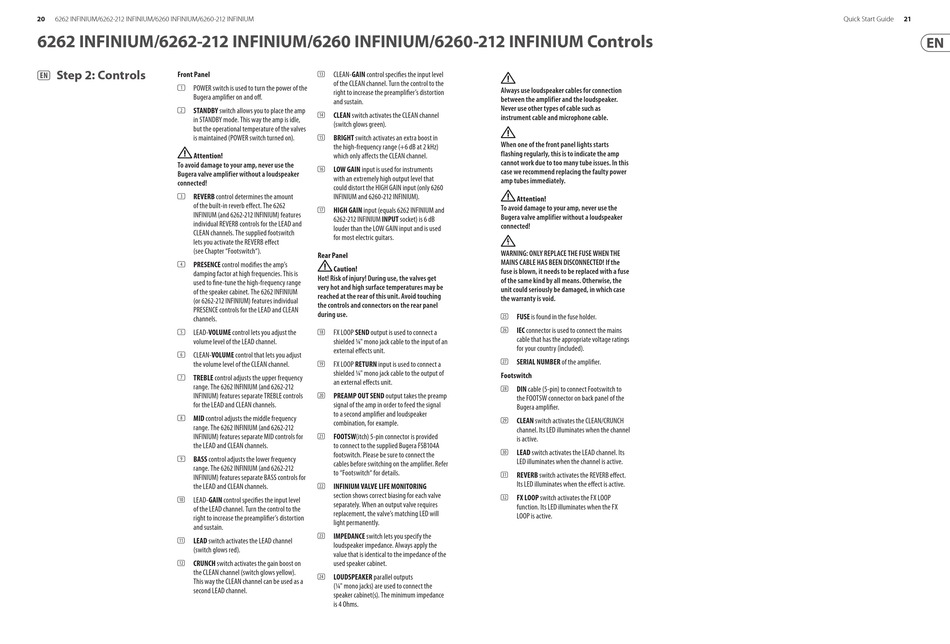

(EN) Step 2: Controls
Front Panel
(1) POWER switch is used to turn the power of the
Bugera amplifier on and off.
(2) STANDBY switch allows you to place the amp
in STANDBY mode. This way the amp is idle,
but the operational temperature of the valves
is maintained (POWER switch turned on).
!
Attention!
To avoid damage to your amp, never use the
Bugera valve amplifier without a loudspeaker
connected!
(3) REVERB control determines the amount
of the built-in reverb effect. The 6262
INFINIUM (and 6262-212 INFINIUM) features
individual REVERB controls for the LEAD and
CLEAN channels. The supplied footswitch
lets you activate the REVERB effect
(see Chapter "Footswitch").
(4) PRESENCE control modifies the amp's
damping factor at high frequencies. This is
used to fine-tune the high-frequency range
of the speaker cabinet. The 6262 INFINIUM
(or 6262-212 INFINIUM) features individual
PRESENCE controls for the LEAD and CLEAN
channels.
(5) LEAD-VOLUME control lets you adjust the
volume level of the LEAD channel.
(6) CLEAN-VOLUME control that lets you adjust
the volume level of the CLEAN channel.
(7) TREBLE control adjusts the upper frequency
range. The 6262 INFINIUM (and 6262-212
INFINIUM) features separate TREBLE controls
for the LEAD and CLEAN channels.
(8) MID control adjusts the middle frequency
range. The 6262 INFINIUM (and 6262-212
INFINIUM) features separate MID controls for
the LEAD and CLEAN channels.
(9) BASS control adjusts the lower frequency
range. The 6262 INFINIUM (and 6262-212
INFINIUM) features separate BASS controls for
the LEAD and CLEAN channels.
LEAD-GAIN control specifies the input level
(10)
of the LEAD channel. Turn the control to the
right to increase the preamplifier's distortion
and sustain.
LEAD switch activates the LEAD channel
(11)
(switch glows red).
CRUNCH switch activates the gain boost on
(12)
the CLEAN channel (switch glows yellow).
This way the CLEAN channel can be used as a
second LEAD channel.
CLEAN-GAIN control specifies the input level
(13)
of the CLEAN channel. Turn the control to the
right to increase the preamplifier's distortion
and sustain.
CLEAN switch activates the CLEAN channel
(14)
(switch glows green).
BRIGHT switch activates an extra boost in
(15)
the high-frequency range (+6 dB at 2 kHz)
which only affects the CLEAN channel.
LOW GAIN input is used for instruments
(16)
with an extremely high output level that
could distort the HIGH GAIN input (only 6260
INFINIUM and 6260-212 INFINIUM).
HIGH GAIN input (equals 6262 INFINIUM and
(17)
6262-212 INFINIUM INPUT socket) is 6 dB
louder than the LOW GAIN input and is used
for most electric guitars.
Rear Panel
!
Caution!
Hot! Risk of injury! During use, the valves get
very hot and high surface temperatures may be
reached at the rear of this unit. Avoid touching
the controls and connectors on the rear panel
during use.
FX LOOP SEND output is used to connect a
(18)
shielded ¼" mono jack cable to the input of an
external effects unit.
FX LOOP RETURN input is used to connect a
(19)
shielded ¼" mono jack cable to the output of
an external effects unit.
PREAMP OUT SEND output takes the preamp
(20)
signal of the amp in order to feed the signal
to a second amplifier and loudspeaker
combination, for example.
FOOTSW(itch) 5-pin connector is provided
(21)
to connect to the supplied Bugera FSB104A
footswitch. Please be sure to connect the
cables before switching on the amplifier. Refer
to "Footswitch" for details.
INFINIUM VALVE LIFE MONITORING
(22)
section shows correct biasing for each valve
separately. When an output valve requires
replacement, the valve's matching LED will
light permanently.
IMPEDANCE switch lets you specify the
(23)
loudspeaker impedance. Always apply the
value that is identical to the impedance of the
used speaker cabinet.
LOUDSPEAKER parallel outputs
(24)
(¼" mono jacks) are used to connect the
speaker cabinet(s). The minimum impedance
is 4 Ohms.
!
Always use loudspeaker cables for connection
between the amplifier and the loudspeaker.
Never use other types of cable such as
instrument cable and microphone cable.
!
When one of the front panel lights starts
flashing regularly, this is to indicate the amp
cannot work due to too many tube issues. In this
case we recommend replacing the faulty power
amp tubes immediately.
!
Attention!
To avoid damage to your amp, never use the
Bugera valve amplifier without a loudspeaker
connected!
*
WARNING: ONLY REPLACE THE FUSE WHEN THE
MAINS CABLE HAS BEEN DISCONNECTED! If the
fuse is blown, it needs to be replaced with a fuse
of the same kind by all means. Otherwise, the
unit could seriously be damaged, in which case
the warranty is void.
FUSE is found in the fuse holder.
(25)
IEC connector is used to connect the mains
(26)
cable that has the appropriate voltage ratings
for your country (included).
SERIAL NUMBER of the amplifier.
(27)
Footswitch
DIN cable (5-pin) to connect Footswitch to
(28)
the FOOTSW connector on back panel of the
Bugera amplifier.
CLEAN switch activates the CLEAN/CRUNCH
(29)
channel. Its LED illuminates when the channel
is active.
LEAD switch activates the LEAD channel. Its
(30)
LED illuminates when the channel is active.
REVERB switch activates the REVERB effect.
(31)
Its LED illuminates when the effect is active.
FX LOOP switch activates the FX LOOP
(32)
function. Its LED illuminates when the FX
LOOP is active.
21
