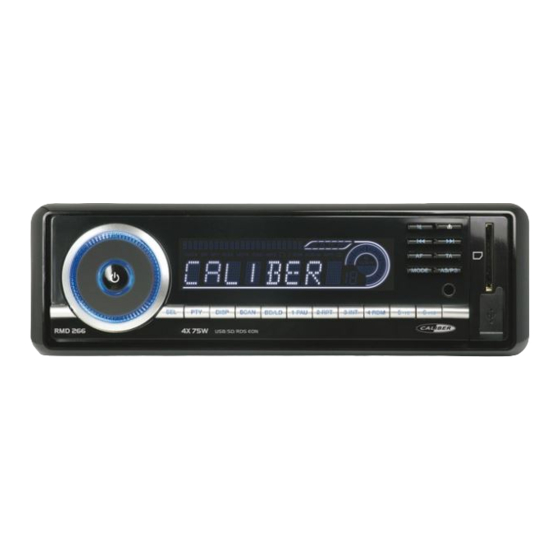

Caliber RMD 266 Schnellstartanleitung

6 2
4X 75W
4
SYSTEM
KEY
Short press
Mute
1
Power on/off
2
3
Audio menu
4
Mode
5
Rotay volume
6
7
8
9
10
11
12
13
14
15
16
17
Display
18
19
20
21
22
Panel release Push this button to release the frontpanel
Power Power function to activate or deactivate the unit.
Band Band selection allows you to select different reception bands, f.i. FM1, FM2, FM3
Mute Push this button to turn off the sound, push again to return to the last volume level.
OK Push this button to confirm the option you have selected.
AF AF stands for Alternative frequencies; the tuner will return to alternative frequencies whenever the reception signal is getting worse
TA stands for Traffic announcement which means that it will give you information about the traffic (if broadcasted) no matter what mode you are in
TA
(USB, SD) it will automatically interrupt the music and give the information, after that it automatically switches back to the selected mode.
The PTY function allows you to search for stations with a particular program type like NEWS group and POP group both of these groups are divided in
PTY
different subjects. PTY "POP", pop/rock, easy/light, classics/others, jazz/country, nation/oldies. PTY "NEWS", news/info, sport/educatie, culture/science,
weather/finance, social/religion
Tune up/down Press to move the radio frequency number up/down step by step.
Info View played track information
EQ Hold button for 3 seconds to open the menu.
The Audio menu button gives you the possibility to adjust your sound system with the following options Bass, Treble, Balance and Fader. These options
Audio menu
can be used to fine tune your sound.
Mode The mode button allows you to go from one source to another source (f.i. Tuner) by pushing the button as many times as needed.
Scan (tuner) Each found station will be played for 5 seconds
AS AS stands for Autostore; in tuner mode it will automatically store the 6 strongest stations (M1-M6). Note: all previous stored stations are lost
PS stands for Preset stations this means that when you push this button in tuner mode it will automatically switches to the first preset (M1) then it will go
PS
to the next and so on.
Rotary volume
This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears
M1-M6 These are the preset stations where you can store your favorite radio stations if in tuner mode
Pause/Play This button allows you in USB or SD mode to play or to pause the music.
INT INT will play 10 seconds of each song on the USB or SD. If the preferred song is playing, push again and it will play that song
Repeat
Repeat will play a selected song or album continuously. Available in USB and SD mode
Random
Shuffle will play all the songs random. Available in USB and SD mode
Track down/up
In MP3 mode press this button to go up or down one track.
Fast forward/backward
Long press to fast forward to the USB or SD
Seek up/down
Long press to move to the next station automatically
3,5mm AUX in Jack To connect an external audio system
USB input When inserting a USB stick the unit will switch to USB mode.
SD card input When inserting a SD card the unit will switch to SD mode.
Reset Use a non-metal pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default.
(behind panel)
5 8 20 1
USB/SD/RDS EON
10 18 22 19 12 13 14
Long press Short press
EQ
AF
TA
PTY
PS
M1
M2
M3
M4
M5
M6
Loud Band
Tune down
Tune up
Scan
Description of the functions
Note! Do not operate the unit while driving
3 21 9 11
15 16 17 7
TUNER
Long press
Panel release button
3,5mm AUX in Jack
AS
Store M1
Store M2
Store M3
Store M4
Store M5
Store M6
Seek down
Seek up
MP3/WMA
Short press Long press
Ok
Play / Pause
Repeat track / Repeat all
INT
Random
10 tracks down
10 tracks up
Info
Track down Fast backward
Track up Fast forward
