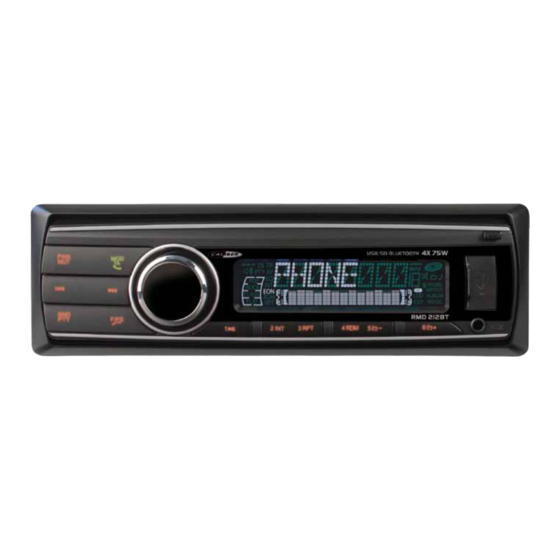

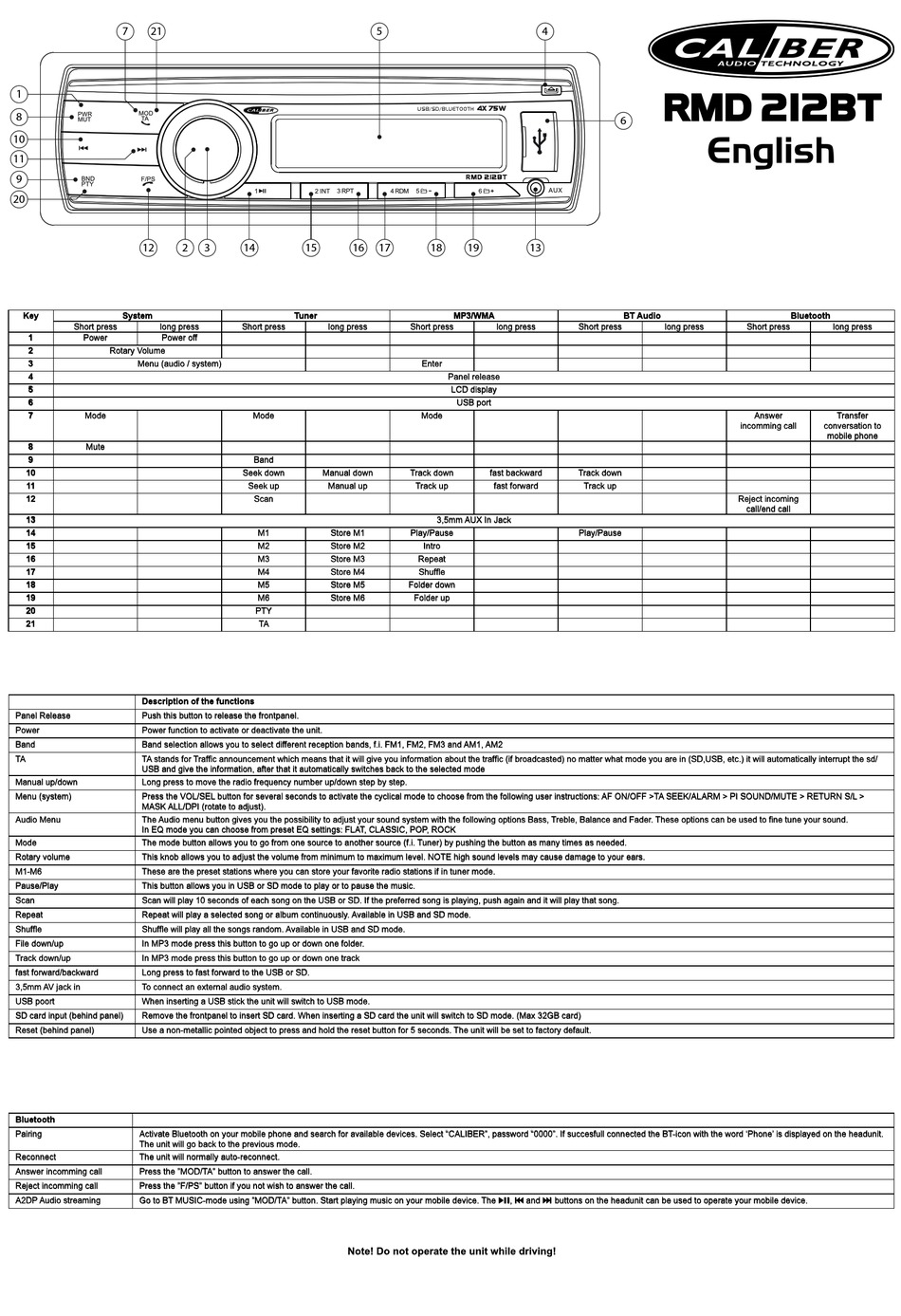

Caliber RMD 212BT Schnellstartanleitung

7 21
1
8
10
11
9
20
12 2
Key System
Short press long press
1 Power Power off
2
Rotary Volume
3 Menu (audio / system)
4
5
6
7 Mode
8 Mute
9
10
11
12
13
14
15
16
17
18
19
20
21
Description of the functions
Panel Release Push this button to release the frontpanel.
Power Power function to activate or deactivate the unit.
Band Band selection allows you to select different reception bands, f.i. FM1, FM2, FM3 and AM1, AM2
TA TA stands for Traffic announcement which means that it will give you information about the traffic (if broadcasted) no matter what mode you are in (SD,USB, etc.) it will automatically interrupt the sd/
USB and give the information, after that it automatically switches back to the selected mode
Manual up/down Long press to move the radio frequency number up/down step by step.
Menu (system) Press the VOL/SEL button for several seconds to activate the cyclical mode to choose from the following user instructions: AF ON/OFF >TA SEEK/ALARM > PI SOUND/MUTE > RETURN S/L >
MASK ALL/DPI (rotate to adjust).
Audio Menu The Audio menu button gives you the possibility to adjust your sound system with the following options Bass, Treble, Balance and Fader. These options can be used to fine tune your sound.
In EQ mode you can choose from preset EQ settings: FLAT, CLASSIC, POP, ROCK
Mode The mode button allows you to go from one source to another source (f.i. Tuner) by pushing the button as many times as needed.
Rotary volume This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears.
M1-M6 These are the preset stations where you can store your favorite radio stations if in tuner mode.
Pause/Play This button allows you in USB or SD mode to play or to pause the music.
Scan Scan will play 10 seconds of each song on the USB or SD. If the preferred song is playing, push again and it will play that song.
Repeat Repeat will play a selected song or album continuously. Available in USB and SD mode.
Shuffle Shuffle will play all the songs random. Available in USB and SD mode.
File down/up In MP3 mode press this button to go up or down one folder.
Track down/up In MP3 mode press this button to go up or down one track
fast forward/backward Long press to fast forward to the USB or SD.
3,5mm AV jack in To connect an external audio system.
USB poort When inserting a USB stick the unit will switch to USB mode.
SD card input (behind panel) Remove the frontpanel to insert SD card. When inserting a SD card the unit will switch to SD mode. (Max 32GB card)
Reset (behind panel) Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default.
Bluetooth
Pairing Activate Bluetooth on your mobile phone and search for available devices. Select "CALIBER", password "0000". If succesfull connected the BT-icon with the word 'Phone' is displayed on the headunit.
The unit will go back to the previous mode.
Reconnect The unit will normally auto-reconnect.
Answer incomming call Press the "MOD/TA" button to answer the call.
Reject incomming call Press the "F/PS" button if you not wish to answer the call.
A2DP Audio streaming Go to BT MUSIC-mode using "MOD/TA" button. Start playing music on your mobile device. The 12, 7 and 8 buttons on the headunit can be used to operate your mobile device.
3 14 15 16
Tuner
Short press long press
Mode
Band
Seek down Manual down
Seek up Manual up
Scan
M1 Store M1
M2 Store M2
M3 Store M3
M4 Store M4
M5 Store M5
M6 Store M6
PTY
TA
5 4
4X 75W
USB/SD/BLUETOOTH
RMD 21 2 BT
17 18 19 13
MP3/WMA
Short press long press
Enter
Panel release
LCD display
USB port
Mode
Track down fast backward
Track up fast forward
3,5mm AUX In Jack
Play/Pause
Intro
Repeat
Shuffle
Folder down
Folder up
6
BT Audio
Short press long press Short press
incomming call
Track down
Track up
Reject incoming
call/end call
Play/Pause
Bluetooth
long press
Answer Transfer
conversation to
mobile phone
