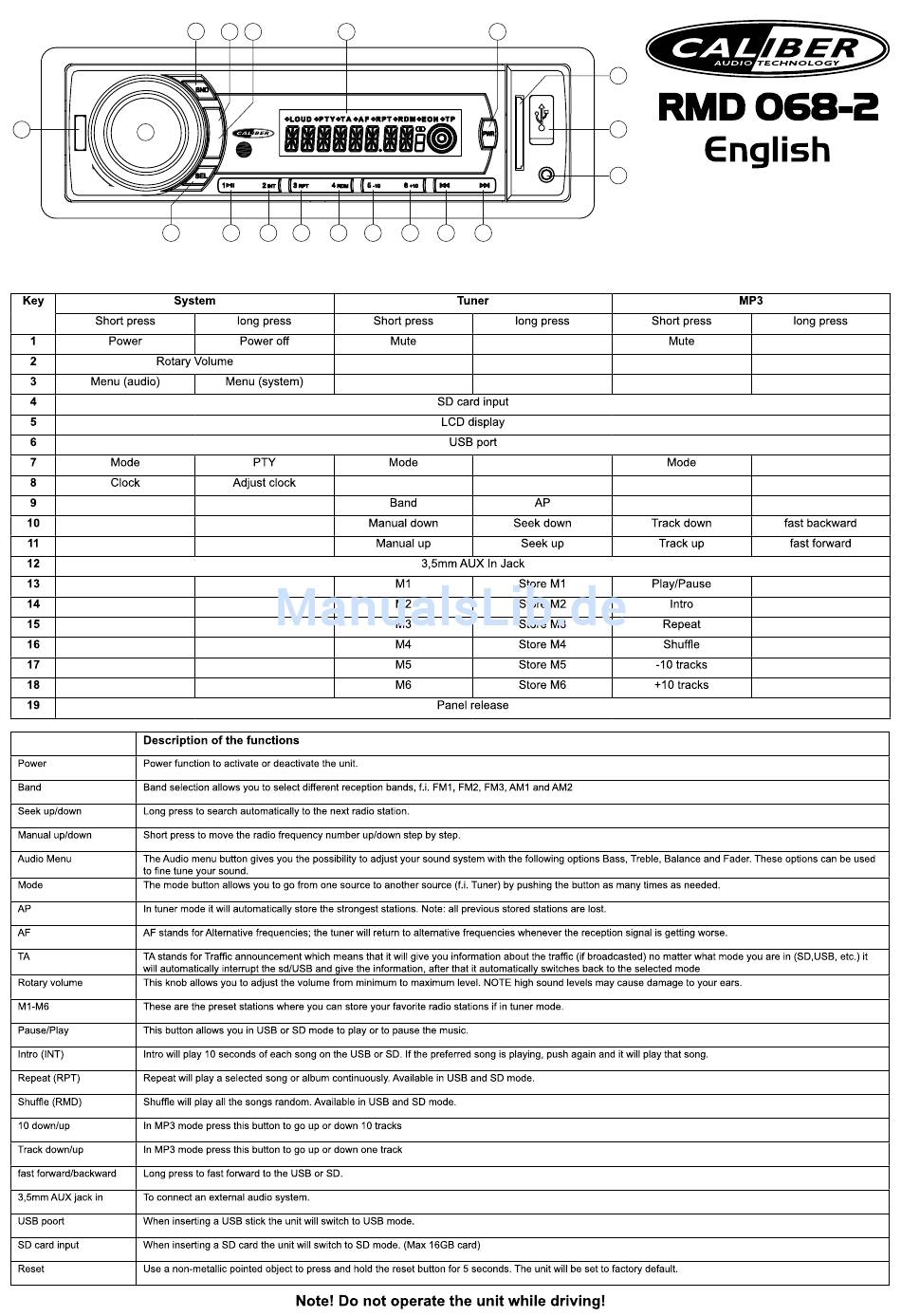

Caliber RMD 068-2 Schnellstartanleitung

REL
19
2
+
VOL
-
3
Key System
Short press
1
Power
2 Rotary Volume
3 Menu (audio)
4
5
6
7 Mode
8 Clock
9
10
11
12
13
14
15
16
17
18
19
Description of the functions
Power Power function to activate or deactivate the unit.
Band Band selection allows you to select different reception bands, f.i. FM1, FM2, FM3, AM1 and AM2
Seek up/down Long press to search automatically to the next radio station.
Manual up/down Short press to move the radio frequency number up/down step by step.
Audio Menu The Audio menu button gives you the possibility to adjust your sound system with the following options Bass, Treble, Balance and Fader. These options can be used
to fine tune your sound.
Mode The mode button allows you to go from one source to another source (f.i. Tuner) by pushing the button as many times as needed.
AP In tuner mode it will automatically store the strongest stations. Note: all previous stored stations are lost.
AF AF stands for Alternative frequencies; the tuner will return to alternative frequencies whenever the reception signal is getting worse.
TA TA stands for Traffic announcement which means that it will give you information about the traffic (if broadcasted) no matter what mode you are in (SD,USB, etc.) it
will automatically interrupt the sd/USB and give the information, after that it automatically switches back to the selected mode
Rotary volume This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears.
M1-M6 These are the preset stations where you can store your favorite radio stations if in tuner mode.
Pause/Play This button allows you in USB or SD mode to play or to pause the music.
Intro (INT) Intro will play 10 seconds of each song on the USB or SD. If the preferred song is playing, push again and it will play that song.
Repeat (RPT) Repeat will play a selected song or album continuously. Available in USB and SD mode.
Shuffle (RMD) Shuffle will play all the songs random. Available in USB and SD mode.
10 down/up In MP3 mode press this button to go up or down 10 tracks
Track down/up In MP3 mode press this button to go up or down one track
fast forward/backward Long press to fast forward to the USB or SD.
3,5mm AUX jack in To connect an external audio system.
USB poort When inserting a USB stick the unit will switch to USB mode.
SD card input When inserting a SD card the unit will switch to SD mode. (Max 16GB card)
Reset Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default.
9
8 7 5
AP

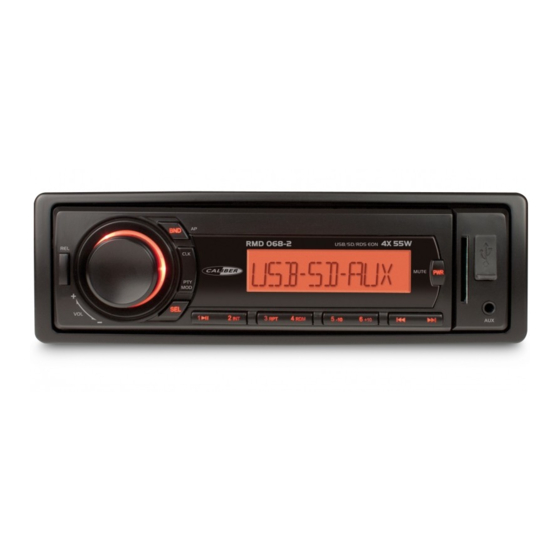

RMD 068-2
CLK
PTY
MOD
13 14 15 16
long press
Power off
Menu (system)
PTY
Adjust clock
1
4X 55W
USB/SD/RDS EON
MUTE
17 18 10 11
Tuner
Short press long press
Mute
SD card input
LCD display
USB port
Mode
Band AP
Manual down Seek down
Manual up Seek up
3,5mm AUX In Jack
M1 Store M1
M2 Store M2
M3 Store M3
M4 Store M4
M5 Store M5
M6 Store M6
Panel release
4
6
12
AUX
Short press
Mute
Mode
Track down
Track up
Play/Pause
Intro
Repeat
Shuffle
-10 tracks
+10 tracks
MP3
long press
fast backward
fast forward
