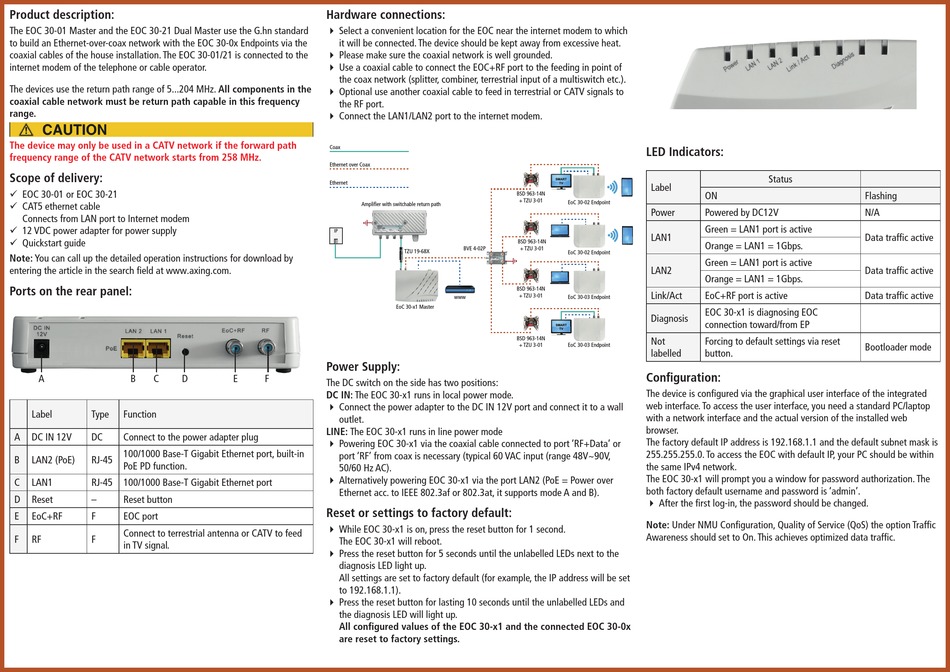

axing EOC 30-01 Installationsset-Anleitung Seite 4

Product description:
The EOC 30-01 Master and the EOC 30-21 Dual Master use the G.hn standard
to build an Ethernet-over-coax network with the EOC 30-0x Endpoints via the
coaxial cables of the house installation. The EOC 30-01/21 is connected to the
internet modem of the telephone or cable operator.
The devices use the return path range of 5...204 MHz. All components in the
coaxial cable network must be return path capable in this frequency
range.
The device may only be used in a CATV network if the forward path
frequency range of the CATV network starts from 258 MHz.
Scope of delivery:
9 EOC 30-01 or EOC 30-21
9 CAT5 ethernet cable
Connects from LAN port to Internet modem
9 12 VDC power adapter for power supply
9 Quickstart guide
Note: You can call up the detailed operation instructions for download by
entering the article in the search field at www.axing.com.
Ports on the rear panel:
A B C D
Label Type Function
A DC IN 12V DC Connect to the power adapter plug
100/1000 Base-T Gigabit Ethernet port, built-in
B LAN2 (PoE) RJ-45
PoE PD function.
C LAN1 RJ-45 100/1000 Base-T Gigabit Ethernet port
D Reset – Reset button
E EoC+RF F EOC port
Connect to terrestrial antenna or CATV to feed
F RF F
in TV signal.
Hardware connections:
 Select a convenient location for the EOC near the internet modem to which
it will be connected. The device should be kept away from excessive heat.
 Please make sure the coaxial network is well grounded.
 Use a coaxial cable to connect the EOC+RF port to the feeding in point of
the coax network (splitter, combiner, terrestrial input of a multiswitch etc.).
 Optional use another coaxial cable to feed in terrestrial or CATV signals to
the RF port.
 Connect the LAN1/LAN2 port to the internet modem.
Coax
Ethernet over Coax
Ethernet
Amplifier with switchable return path
IP
TZU 19-68X
EoC 30-x1 Master
Power Supply:
E F
The DC switch on the side has two positions:
DC IN: The EOC 30-x1 runs in local power mode.
 Connect the power adapter to the DC IN 12V port and connect it to a wall
outlet.
LINE: The EOC 30-x1 runs in line power mode
 Powering EOC 30-x1 via the coaxial cable connected to port 'RF+Data' or
port 'RF' from coax is necessary (typical 60 VAC input (range 48V~90V,
50/60 Hz AC).
 Alternatively powering EOC 30-x1 via the port LAN2 (PoE = Power over
Ethernet acc. to IEEE 802.3af or 802.3at, it supports mode A and B).
Reset or settings to factory default:
 While EOC 30-x1 is on, press the reset button for 1 second.
The EOC 30-x1 will reboot.
 Press the reset button for 5 seconds until the unlabelled LEDs next to the
diagnosis LED light up.
All settings are set to factory default (for example, the IP address will be set
to 192.168.1.1).
 Press the reset button for lasting 10 seconds until the unlabelled LEDs and
the diagnosis LED will light up.
All configured values of the EOC 30-x1 and the connected EOC 30-0x
are reset to factory settings.
SMART
TV
BSD 963-14N
+ TZU 3-01
EoC 30-02 Endpoint
BSD 963-14N
BVE 4-02P + TZU 3-01
EoC 30-02 Endpoint
BSD 963-14N
+ TZU 3-01
www EoC 30-03 Endpoint
SMART
TV
BSD 963-14N
+ TZU 3-01 EoC 30-03 Endpoint
LED Indicators:
Status
Label
ON
Power Powered by DC12V
Green = LAN1 port is active
LAN1
Orange = LAN1 = 1Gbps.
Green = LAN1 port is active
LAN2
Orange = LAN1 = 1Gbps.
Link/Act EoC+RF port is active
EOC 30-x1 is diagnosing EOC
Diagnosis
connection toward/from EP
Not Forcing to default settings via reset
labelled button.
Configuration:
The device is configured via the graphical user interface of the integrated
web interface. To access the user interface, you need a standard PC/laptop
with a network interface and the actual version of the installed web
browser.
The factory default IP address is 192.168.1.1 and the default subnet mask is
255.255.255.0. To access the EOC with default IP, your PC should be within
the same IPv4 network.
The EOC 30-x1 will prompt you a window for password authorization. The
both factory default username and password is 'admin'.
 After the first log-in, the password should be changed.
Note: Under NMU Configuration, Quality of Service (QoS) the option Traffic
Awareness should set to On. This achieves optimized data traffic.
Flashing
N/A
Data traffic active
Data traffic active
Data traffic active
Bootloader mode
