Dear Customer,
congratulations on your purchase of this high-qua-
lity HELIX amplifier, made in Germany. The new
Helix competition series amplifiers highlights best
quality, excellent manufacturing and state-of-the-
art technology. After 23 years of experiences in
the research & development of audio products this
amplifier generation sets new standards. The
attractive typical Helix design makes this amplifier
to an outstanding and top of the class product.
We wish you many hours of enjoyment with your
new HELIX amplifier.
Yours
AUDIOTEC FISCHER Team
General installation instructions for HELIX
amplifiers
To find out how HELIX amplifiers work best for
you, read this manual carefully and follow the
instructions for installation. We guarantee that this
product has been checked for proper functioning
before shipping.
Before you start installation, disconnect the car
battery at the minus pole. We would urge you to
have the installation work carried out by a specia-
list as verification of correct installation and
connection of the unit is a prerequisite for warran-
ty cover of the HELIX amplifier.
Install your amplifier at a dry location where there
is sufficient air circulation to ensure adequate coo-
ling of the equipment. For safety reasons, the
amplifier must be secured in a professional man-
ner. This is performed by means of four fixing
screws screwed into a mounting surface offering
sufficient retention and stability.
6
Before drilling the holes for the screws, carefully
examine the area around the installation position
and make sure that there are no electrical cables or
components, hydraulic brake lines or any part of
the petrol tank located behind the mounting surfa-
ce - otherwise these could be damaged. You should
be aware of the fact that such components may
also be concealed in the double-skin trim
panels/mouldings.
General instruction for connecting the ampli-
fiers
The HELIX amplifiers may only be installed in
motor vehicles which have a 12-volt minus pole
connected to the chassis ground. Any other system
could cause damage to the amplifier and the elec-
trical system of the vehicle.
The plus cable from the battery for the complete
system should be provided with a main fuse at a
distance of max. 30 cm from the battery. The value
of the fuse is calculated from the maximum total
current input of the car audio system.
Install the cabling in a manner which precludes
any danger of the leads being exposed to shear,
crushing or rupture forces. If there are sharp edges
in the vicinity (e.g. holes in the bodywork) all
cables must be cushioned and protected to prevent
fraying.
Never lay the power supply cables adjacent to
leads and lines connecting other vehicle equipment
(fan motors, fire detection modules, gas lines etc.).
In order to ensure safe installation, use only high-
quality connections and materials. Ask your dealer
for high quality accessories.
6
8
7
9
4
3
2 0
2 0
5
2 0
2
2 0
1
1

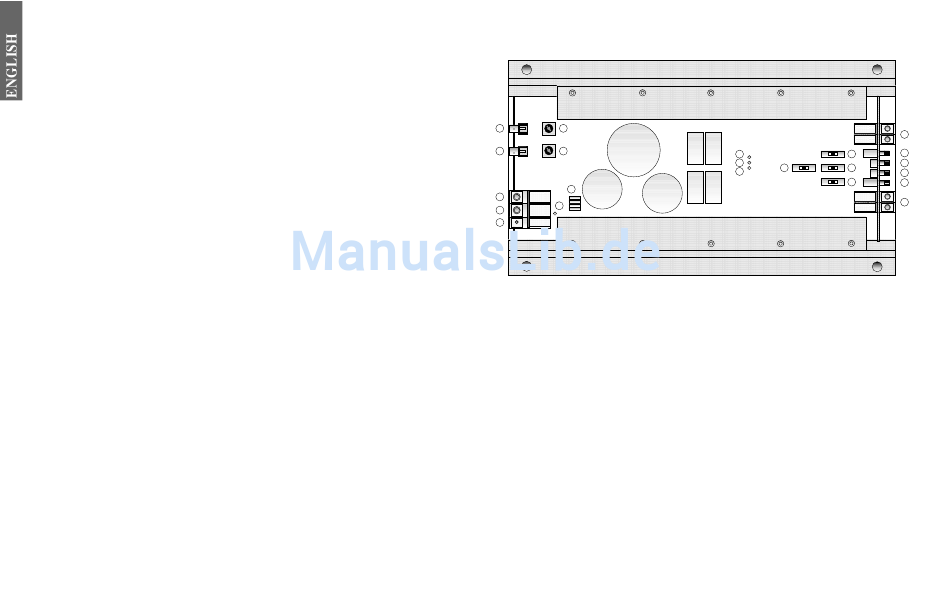

Connecting the remote lead
2
Connecting the battery cable
3
Connecting the ground cable
4
Fuses 4 x 20 Ampere
5
Fuse Function Indication
6
Signal input channel A
7
Signal input channel B
8-9
Level controls for input sensitivity
500 mV - 8 V
10-12
CPS-Colour Protection System
green
= in operation
yellow
= technical failure
red
= overheating
13
Switch for HP/ Linear/ LP
17
20
10
15
1
2
3
11
22
16
13
12
21
1
3
1
3
2
2
14
19
1
2
3
18
14
Control for frequency range for
Low Pass
15
Control for frequency range for
High Pass
16
Switch for Stereo/Bridged/Mono
17
Speaker terminal for channel A
18
Speaker terminal for channel B
19
Control for frequency range Low
Pass
20
Control for frequency range High
Pass
21
Control to raise the center fre-
quency
22
Adjustment of center frequencies
