Manual: Multi Color Module RB-1.5 / RB-3.0 / RB-3.8

6. Justage

If the single diodes in the array module aren't perfectly aligned anymore it is necessary to
realign them.
1. Reduce the power of the module to 30% or connect the module with a modulation
voltage between 2-3V (the adjustments can only be done with a static single beam).
2. The optimal alignment distance for this modules is between 15 and 20 met-
res. To have a better viwe on the laser beam while standing next to the projec-
tor, use a beam mirror to reflect the laser beam back to the projector. The re-
flected laser beam needs a vertical projection surface . If there are more than
one laser point visible on the surface ,alignment of the mocule is necessary.

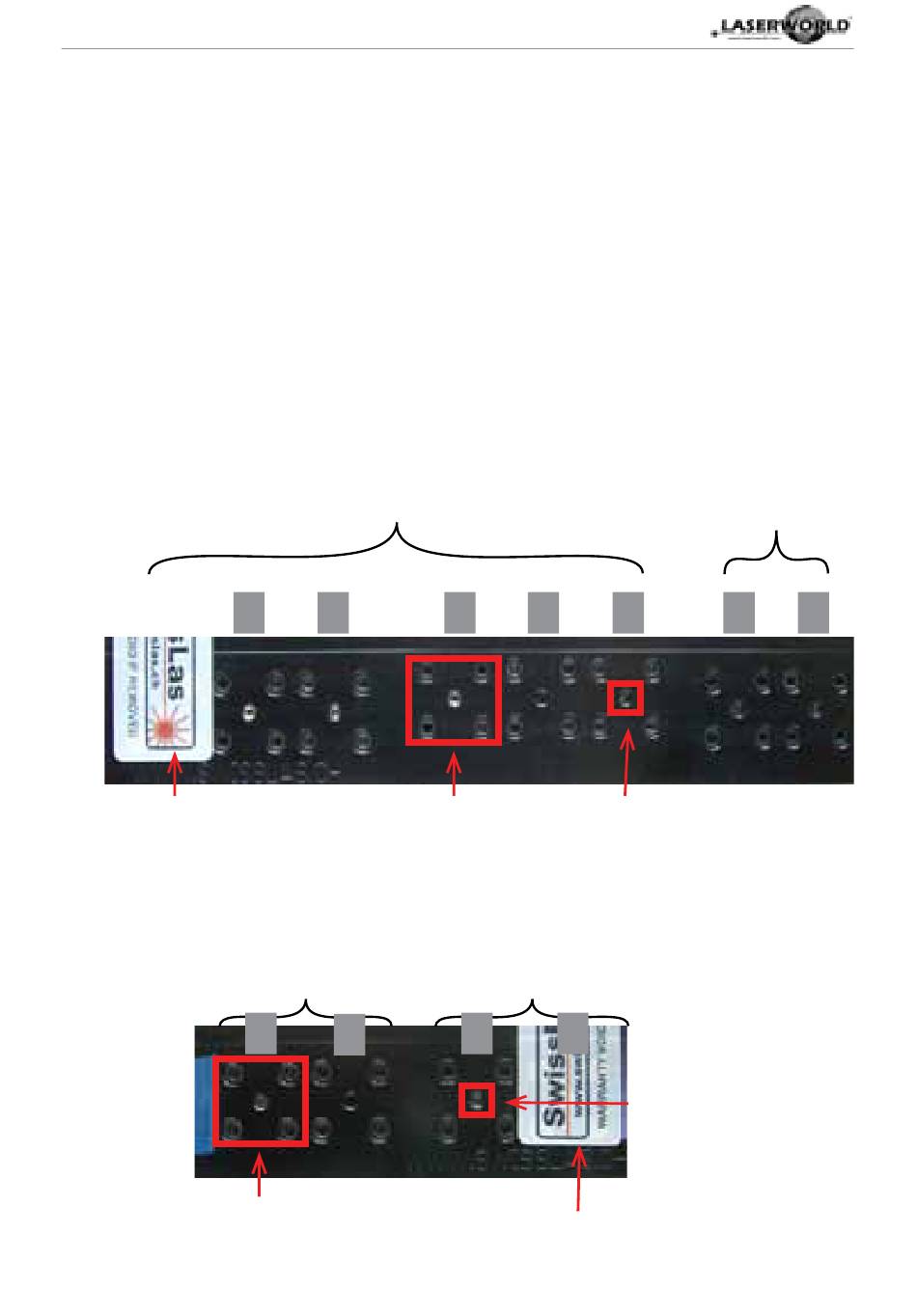

3. Description of the modules RB-3.0 / RB-3.8
Alignment screws of
the reference diode.
Do not use these screws!
Description of the modules RB-1.5
4-point mirror alignment.
page 6 / 17
Red 1 - 6
2 3
4-point mirror alignment.
Blaue Diodes 3 & 4
4
3
Alignment screws of the reference diode.
Do not use these screws!
4 5 6
The small locating central
screw ist the locating screw.
Do not touch this one!
Rote Diodes 1 - 2
2 1
Blue 1 & 2
7 8
The small locating central
screw ist the locating screw.
Do not touch this one!
