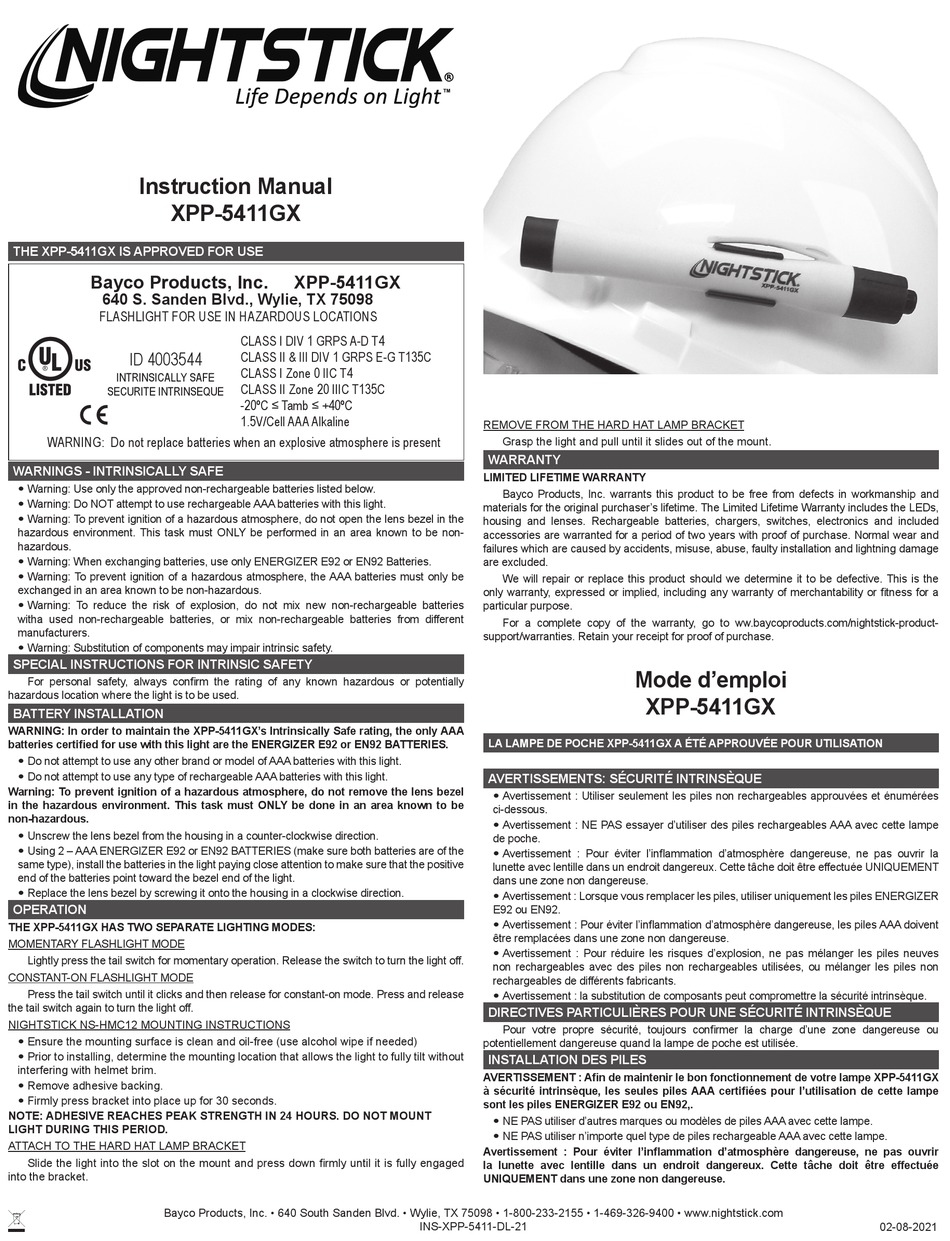

Instruction Manual
XPP-5411GX
THE XPP-5411GX IS APPROVED FOR USE
Bayco Products, Inc.
640 S. Sanden Blvd., Wylie, TX 75098
FLASHLIGHT FOR USE IN HAZARDOUS LOCATIONS
ID 4003544
INTRINSICALLY SAFE
SECURITE INTRINSEQUE
WARNING: Do not replace batteries when an explosive atmosphere is present
WARNINGS - INTRINSICALLY SAFE
y Warning: Use only the approved non-rechargeable batteries listed below.
y Warning: Do NOT attempt to use rechargeable AAA batteries with this light.
y Warning: To prevent ignition of a hazardous atmosphere, do not open the lens bezel in the
hazardous environment. This task must ONLY be performed in an area known to be non-
hazardous.
y Warning: When exchanging batteries, use only ENERGIZER E92 or EN92 Batteries.
y Warning: To prevent ignition of a hazardous atmosphere, the AAA batteries must only be
exchanged in an area known to be non-hazardous.
y Warning: To reduce the risk of explosion, do not mix new non-rechargeable batteries
witha used non-rechargeable batteries, or mix non-rechargeable batteries from different
manufacturers.
y Warning: Substitution of components may impair intrinsic safety.
SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
For personal safety, always confi rm the rating of any known hazardous or potentially
hazardous location where the light is to be used.
BATTERY INSTALLATION
WARNING: In order to maintain the XPP-5411GX's Intrinsically Safe rating, the only AAA
batteries certifi ed for use with this light are the ENERGIZER E92 or EN92 BATTERIES.
y Do not attempt to use any other brand or model of AAA batteries with this light.
y Do not attempt to use any type of rechargeable AAA batteries with this light.
Warning: To prevent ignition of a hazardous atmosphere, do not remove the lens bezel
in the hazardo us environment. This task must ONLY be done in an area known to be
non-hazardous.
y Unscrew the lens bezel from the housing in a counter-clockwise direction.
y Using 2 – AAA ENERGIZER E92 or EN92 BATTERIES (make sure both batteries are of the
same type), install the batteries in the light paying close attention to make sure that the positive
end of the batteries point toward the bezel end of the light.
y Replace the lens bezel by screwing it onto the housing in a clockwise direction.
OPERATION
THE XPP-5411GX HAS TWO SEPARATE LIGHTING MODES:
MOMENTARY FLASHLIGHT MODE
Lightly press the tail switch for momentary operation. Release the switch to turn the light off.
CONSTANT-ON FLASHLIGHT MODE
Press the tail switch until it clicks and then release for constant-on mode. Press and release
the tail switch again to turn the light off.
NIGHTSTICK NS-HMC12 MOUNTING INSTRUCTIONS
y Ensure the mounting surface is clean and oil-free (use alcohol wipe if needed)
y Prior to installing, determine the mounting location that allows the light to fully tilt without
interfering with helmet brim.
y Remove adhesive backing.
y Firmly press bracket into place up for 30 seconds.
NOTE: ADHESIVE REACHES PEAK STRENGTH IN 24 HOURS. DO NOT MOUNT
LIGHT DURING THIS PERIOD.
ATTACH TO THE HARD HAT LAMP BRACKET
Slide the light into the slot on the mount and press down fi rmly until it is fully engaged
into the bracket.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
XPP-5411GX
CLASS I DIV 1 GRPS A-D T4
CLASS II & III DIV 1 GRPS E-G T135C
CLASS I Zone 0 IIC T4
CLASS II Zone 20 IIIC T135C
-20ºC ≤ Tamb ≤ +40ºC
1.5V/Cell AAA Alkaline
INS-XPP-5411-DL-21
REMOVE FROM THE HARD HAT LAMP BRACKET
Grasp the light and pull until it slides out of the mount.
WARRANTY
LIMITED LIFETIME WARRANTY
Bayco Products, Inc. warrants this product to be free from defects in workmanship and
materials for the original purchaser's lifetime. The Limited Lifetime Warranty includes the LEDs,
housing and lenses. Rechargeable batteries, chargers, switches, electronics and included
accessories are warranted for a period of two years with proof of purchase. Normal wear and
failures which are caused by accidents, misuse, abuse, faulty installation and lightning damage
are excluded.
We will repair or replace this product should we determine it to be defective. This is the
only warranty, expressed or implied, including any warranty of merchantability or fi tness for a
particular purpose.
For a complete copy of the warranty, go to ww.baycoproducts.com/nightstick-product-
support/warranties. Retain your receipt for proof of purchase.
Mode d'emploi
XPP-5411GX
LA LAMPE DE POCHE XPP-5411GX A ÉTÉ APPROUVÉE POUR UTILISATION
AVERTISSEMENTS: SÉCURITÉ INTRINSÈQUE
y Avertissement : Utiliser seulement les piles non rechargeables approuvées et énumérées
ci-dessous.
y Avertissement : NE PAS essayer d'utiliser des piles rechargeables AAA avec cette lampe
de poche.
y Avertissement : Pour éviter l'infl ammation d'atmosphère dangereuse, ne pas ouvrir la
lunette avec lentille dans un endroit dangereux. Cette tâche doit être effectuée UNIQUEMENT
dans une zone non dangereuse.
y Avertissement : Lorsque vous remplacer les piles, utiliser uniquement les piles ENERGIZER
E92 ou EN92.
y Avertissement : Pour éviter l'infl ammation d'atmosphère dangereuse, les piles AAA doivent
être remplacées dans une zone non dangereuse.
y Avertissement : Pour réduire les risques d'explosion, ne pas mélanger les piles neuves
non rechargeables avec des piles non rechargeables utilisées, ou mélanger les piles non
rechargeables de différents fabricants.
y Avertissement : la substitution de composants peut compromettre la sécurité intrinsèque.
DIRECTIVES PARTICULIÈRES POUR UNE SÉCURITÉ INTRINSÈQUE
Pour votre propre sécurité, toujours confi rmer la charge d'une zone dangereuse ou
potentiellement dangereuse quand la lampe de poche est utilisée.
INSTALLATION DES PILES
AVERTISSEMENT : Afi n de maintenir le bon fonctionnement de votre lampe XPP-5411GX
à sécurité intrinsèque, les seules piles AAA certifi ées pour l'utilisation de cette lampe
sont les piles ENERGIZER E92 ou EN92,.
y NE PAS utiliser d'autres marques ou modèles de piles AAA avec cette lampe.
y NE PAS utiliser n'importe quel type de piles rechargeable AAA avec cette lampe.
Avertissement : Pour éviter l'infl ammation d'atmosphère dangereuse, ne pas ouvrir
la lunette avec lentille dans un endroit dangereux. Cette tâche doit être effectuée
UNIQUEMENT dans une zone non dangereuse.
