INTRODUCTION
The Air Excellent air distribution system is specially designed for central mechanical ventilation systems with heat
recovery and central mechanical extract units. It is a modular system composed of a manifold, semi-rigid duct and
various accessories. The semi-rigid duct is available in various circular and semi-circular dimensions.
"All work must be undertaken according to all local and national health and
safety regulations".
GENERAL INSTALLATION PROCESS
1. Design the installation.
2. Use the Ubbink configuration tool to calculate the ventilation capacities and system pressure loss and
determine the optimal location for the distribution boxes to minimize system pressure loss
3. Cut the semi-rigid ducts to the required length and lay them out according to the design. Allow 100 - 150 mm
extra length to ensure ease of assembly. Use vertical and horizontal bends if required.
4. Mark the semi-rigid ducts to indicate whether the ducts are used for either air supply or air extract.
5. Cut the valve adaptors to the required height and install them.
6. Use the mounting clips to fix the semi-rigid duct where necessary.
7. Use the red seal ring for each connection.
8. Measure the air flows after installation.

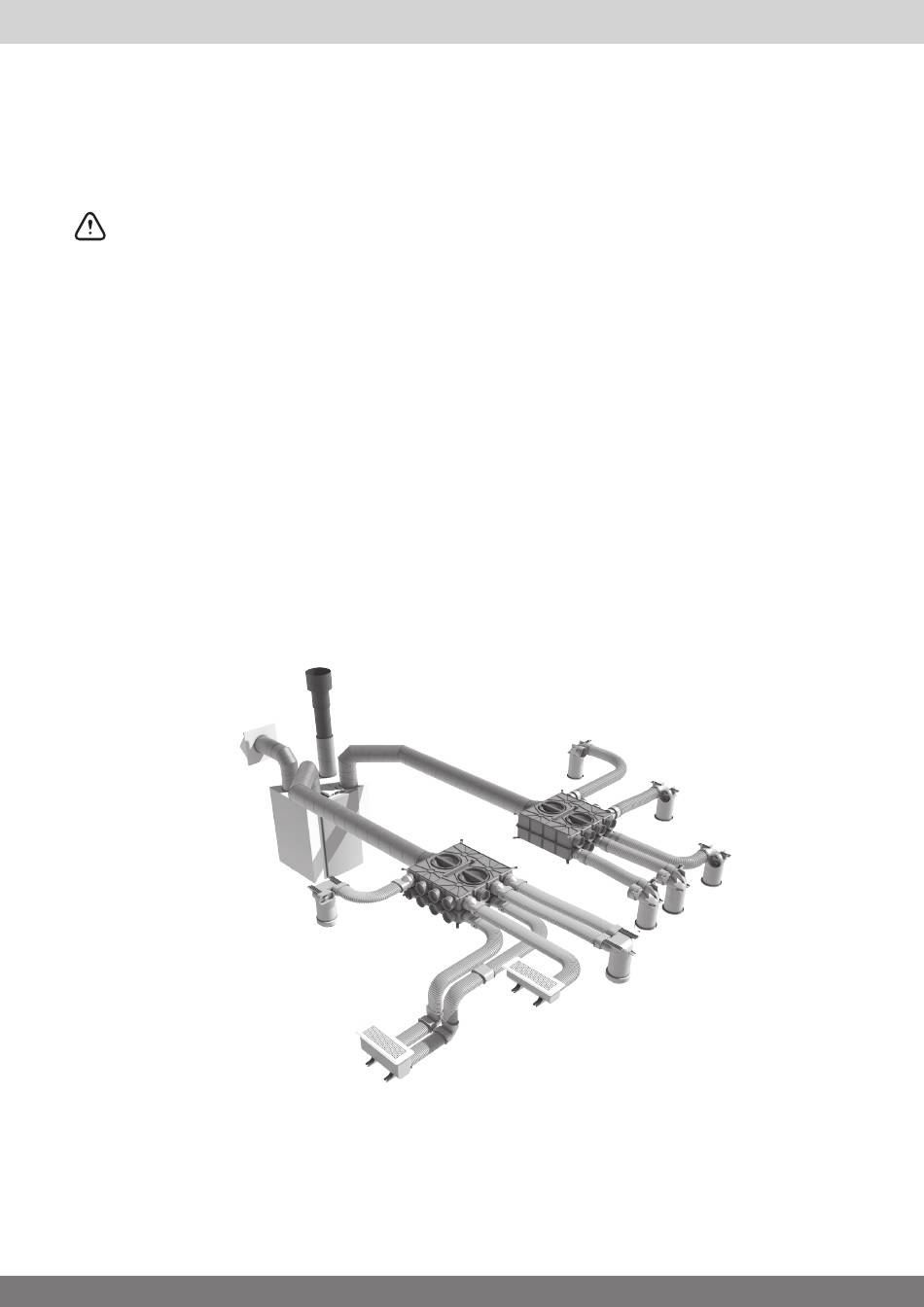

EXAMPLE INSTALLATION
