ITALIANO ATTENZIONE: In questo documento sono riportate solo alcune indicazioni essenziali sul prodotto. Per ulteriori e dettagliate informazioni fare riferimento ai manuali delle centrali 1067. DESCRIZIONE GENERALE L’interfaccia 1067/003 consente di collegare alla Centrale 1067, un computer per la sua programmazione e una Chiave USB (Pen Drive) per il salvataggio ed il recupero della completa programmazione del sistema, dello storico eventi, dei codici e delle chiavi.
CONNESSIONE AL PC Connettere l’interfaccia USB alla centrale prima di collegarla al PC. Inserire il cavo USB in dotazione nel connettore B (fig.3) e in una porta USB libera del PC. Se l’interfaccia viene riconosciuta dal sistema operativo (Windows 2000, XP, Vista, Windows 7, Windows 8) il PC aggiungerà...

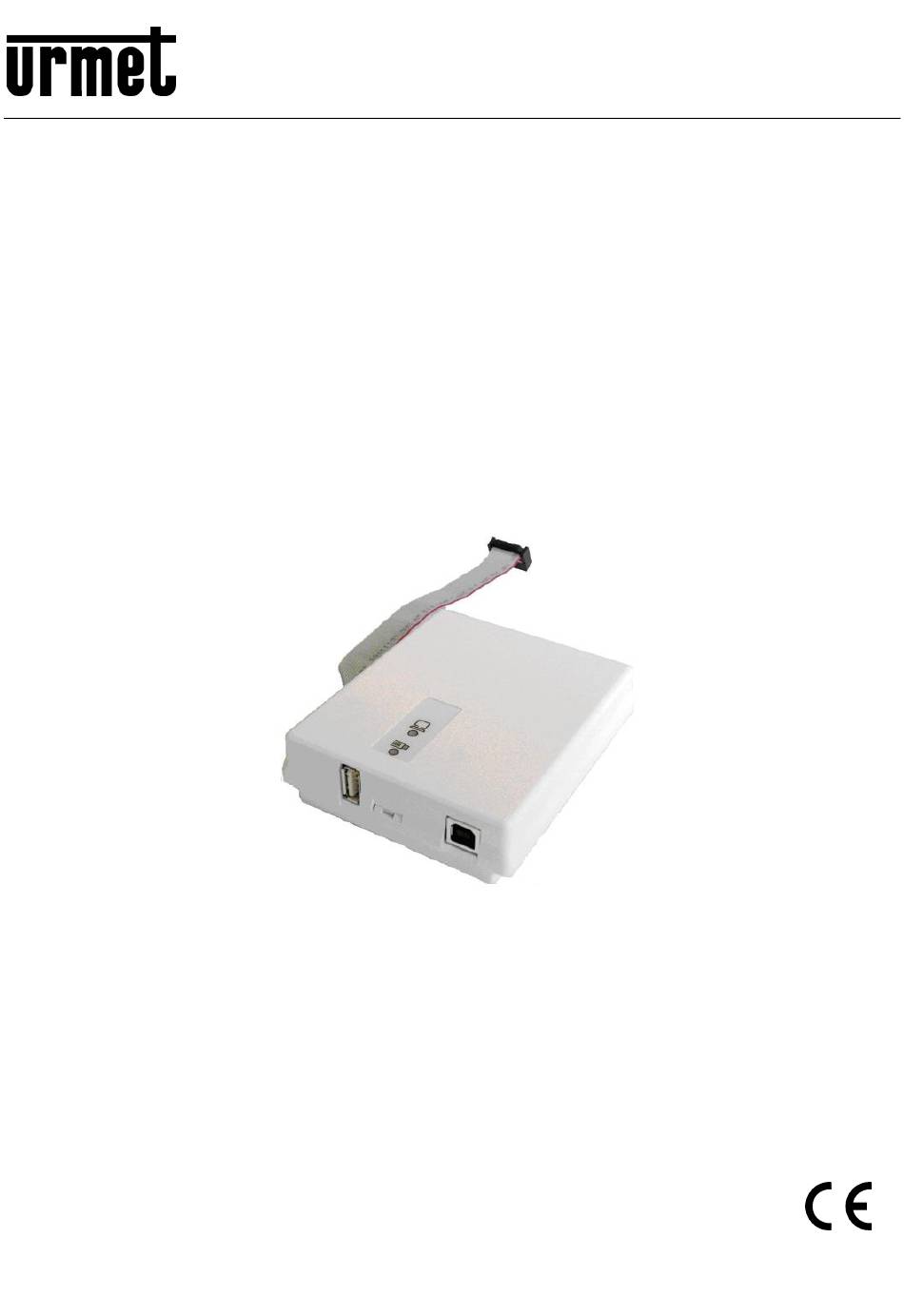

ENGLISH WARNING: This document provides only some essential product information. Refer to the 1067 control panel manuals for more detailed information. GENERAL DESCRIPTION The 1067/003 interface is used to connect a computer to the 1067 control panel in order to program the computer and a USB flash drive or memory key (Pen Drive) to save and retrieve the whole system programming, the history of events, codes and keys.
PC CONNECTION Connect the USB Interface to the control panel before connecting it to the PC. Insert the supplied USB cable into connector B (fig.3) and into a PC free USB port. If the interface is recognised by the operating system (Windows 2000, XP, Vista, Windows 7, Windows 8), the PC will add a COM port which will be assigned a number after the already existing port.
DEUTSCH ACHTUNG: In dieser unterlage sind nur einige hauptsächliche angaben über das Produkt enthalten, mehr und detailliertere Informationen finden sie in den Handbüchern der 1067-zentralen. ALLGEMEINE BESCHREIBUNG Die Schnittstelle 1067/003 ermöglicht den Anschluss eines Computers für die Programmierung und eines USB-Schlüssels (Pen Drive) für die Speicherung und das Backup der kompletten Programmierung des Systems, der historischen Vorgänge, der Kode und der Schlüssel an die 1067-Zentrale.
VERBINDUNG MIT DEM PC Die USB Schnittstelle zuerst mit der Zentrale und dann mit dem Compter verbinden. Das mitgelieferte USB-Kabel in den Steckverbinder B (Abb.3) und in ein freies USB-Port des Computers einstecken. Wenn die Schnittstelle von dem Anwendersystem (Windows 2000, XP, Vista, Windows 7, Windows 8) erkannt wird, fügt der Computer ein COM-Port mit der nächsten freien Nummer hinzu.
Seite 8
Cavo PC KEY USB (FLASH MEMORY) PC cable PC-Kabel Fig./Abb 3 DS1067-019B LBT8388 URMET S.p.A. Area tecnica 10154 TORINO (ITALY) servizio clienti +39. 011.23.39.810 VIA BOLOGNA 188/C http://www.urmet.com DS1067-019B Telef. +39. 011.24.00.000 (RIC.AUT.) e-mail: info@urmet.com +39. 011.24.00.300 - 323 MADE IN ITALY...
