Installing your DigiSender® XDHDMI

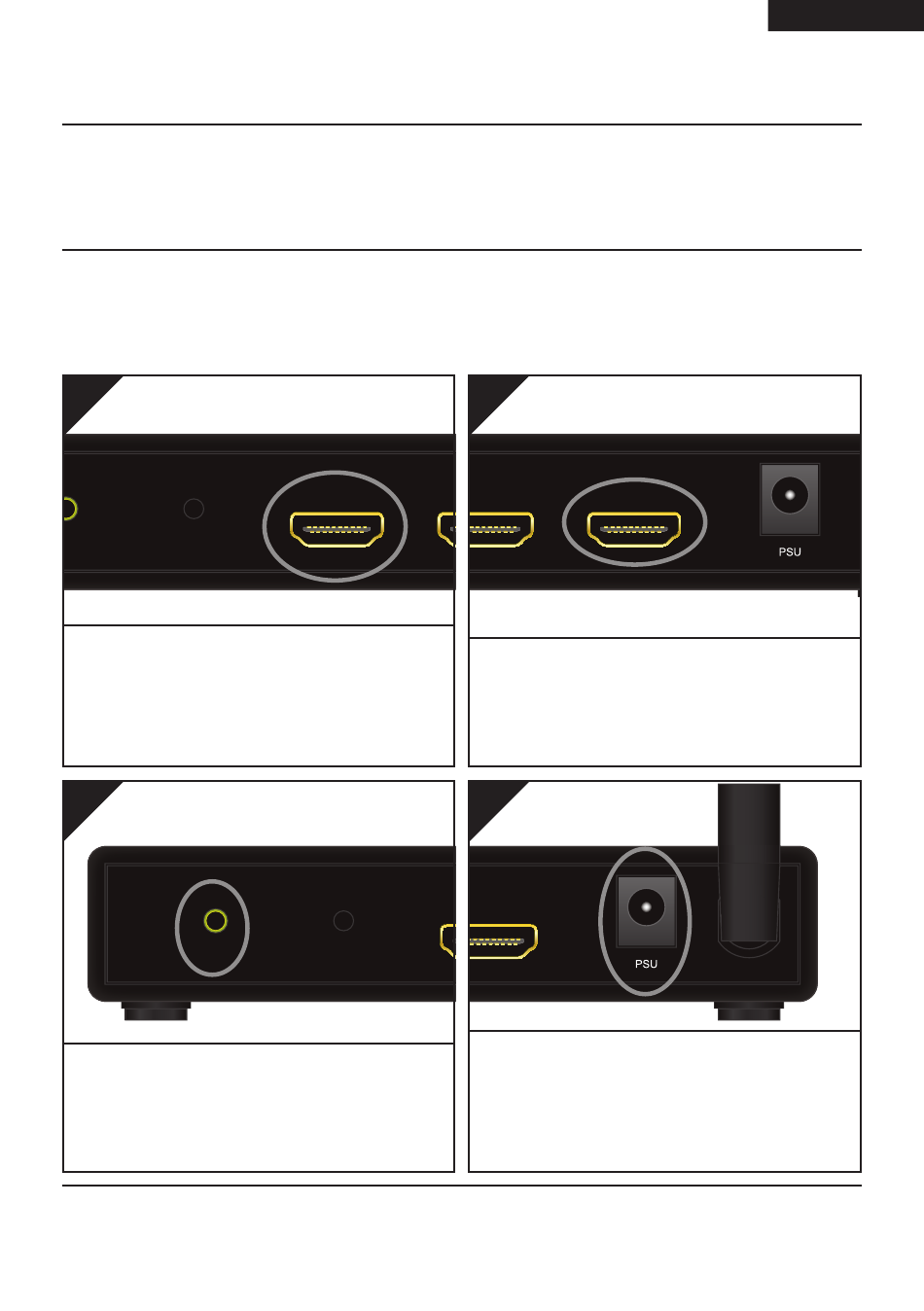

Step 2 - Install the Transmitter

The Transmitter will send the audio and video from a connected source (your Satellite Receiver for
example) to the Receiver, located in another room in your home.
1.
PAIR
IR IR
Locate the HDMI cable that goes from your Satellite
receiver or Cable box to your TV. Unplug the HDMI
cable from the back of your TV, and connect it to
the socket labelled 'HDMI IN' on the back of the
DigiSender® Transmitter.
3.
PAIR
IR IR
Connect the IR Emitter to the socket labelled 'IR' on
the back of the DigiSender® Transmitter. See Page
06 for more information on installing the IR Systeme
Technik™ Remote Relay Kit.
Please read the instructions carefully prior to installation
DGXDSDV112 - DigiSender® XDHDMI - Single Input HDMI AV Sender System
PAIR
HDMI IN
PAIR
HDMI IN
2.
HDMI OUT HDMI IN HDMI OUT
Use one of the included HDMI cables and connect
it to the socket labelled 'HDMI OUT' on the back
of the DigiSender® Transmitter and the HDMI input
on your TV.
4.
HDMI OUT HDMI IN HDMI OUT
Connect the Power Supply Unit (PSU) to the socket
labelled 'PSU' on the back of the DigiSender® Trans-
mitter and plug it into an available mains socket.
The Power Indicator will light up Red to indicate that
the unit is in Standby Mode.
ENGLISH (EN)
ANT ANT
ANT ANT
Page 05
