Walkstick / Walkstick Pipe

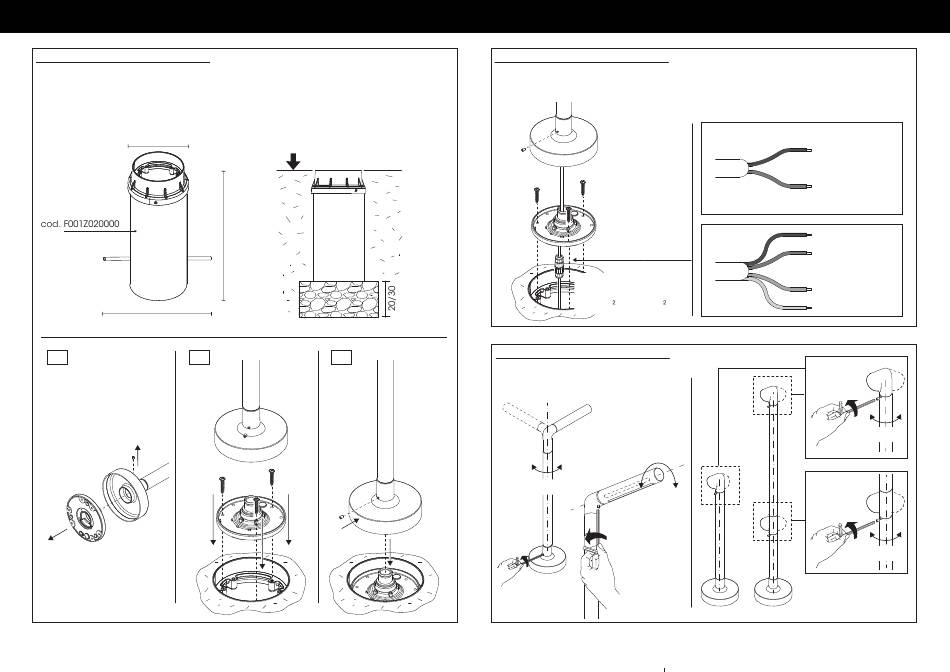

WALKSTICK / WALKSTICK PIPE
FISSAGGIO A TERRA - GROUND INSTALLATION
option 2: CODICE - CODE F001Z020000
ø170mm
300mm
1 2
A
C
B
LIVELLO 0
LEVEL 0
400mm
3
E
D
WALKSTICK / WALKSTICK PIPE
CABLAGGIO - WIRING
option 2: CODICE - CODE F001Z020000
<HAR> H05/07 RN-F
7<Ø<12 mm cable
2x1mm / 4x1,5mm
WALKSTICK / WALKSTICK PIPE
ROTAZIONE/ADJUSTABLE
max 350°
max 350°
ON - OFF
L= Marrone - Brown
N= Blu - Blue
DALI / 1...10V
L= Marrone - Brown
N= Blu - Blue
D(+)= Viola - Violet
D(−)= Grigio - Grey
max 350°
max 350°
