Installation Guide / Installationsanleitung
Danfoss Icon™ Master Controller 230V
EN
Danfoss Icon™ Hauptregler 230V
DE
EN

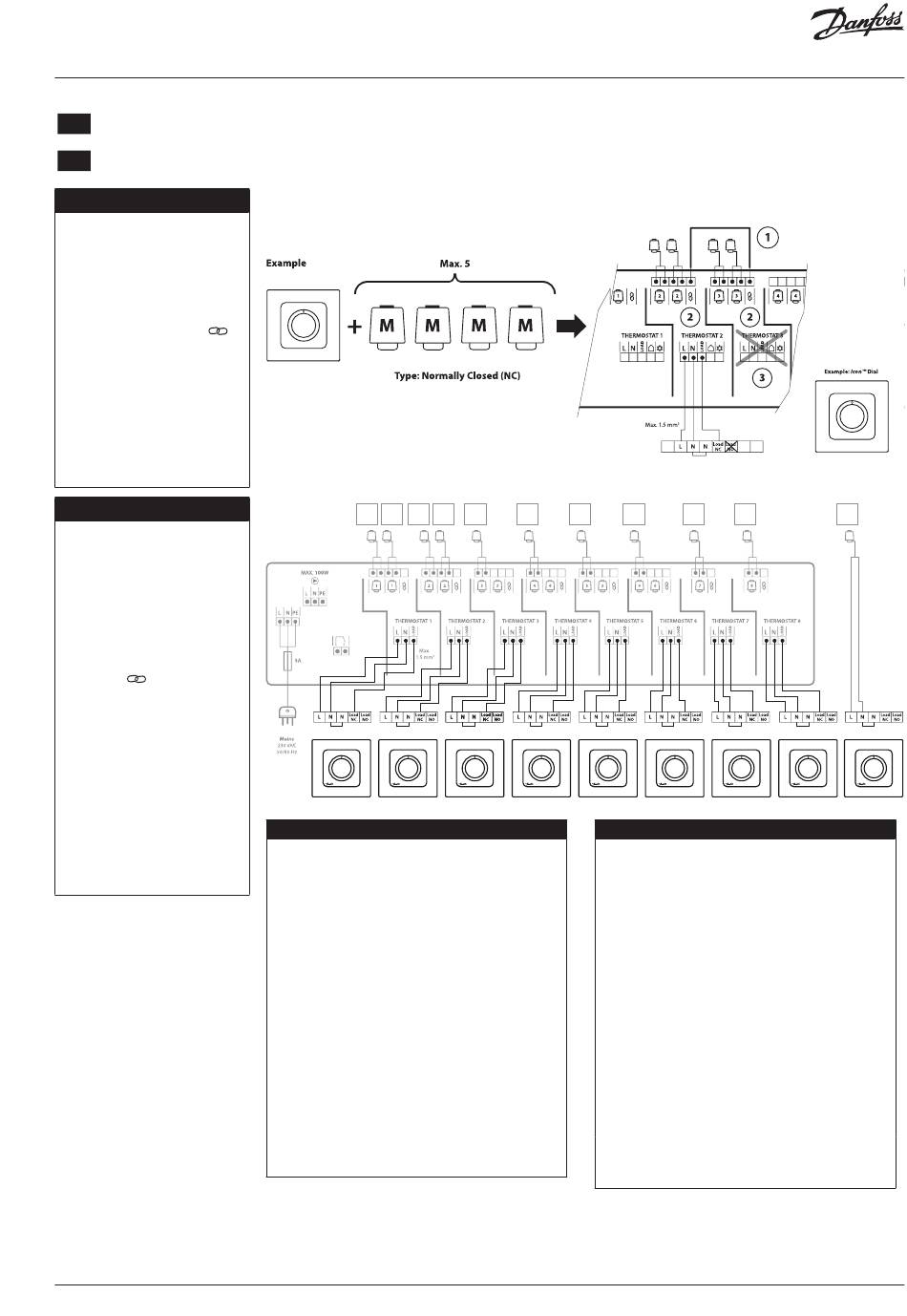

1. Bridge (wire) - allows
use of additional out-
puts (max. 5 totally per
thermostat)
2. Connect bridge to ter-
minal marked with
3. Don't connect a ther-
mostat to the channel
where you took the ad-
ditional outputs from!
4. You MUST use same
phase on all master
controllers!
DE
1. Verbindungsstück
(Kabel) - ermöglicht
die Verwendung zu-
sätzlicher Ausgänge
(insgesamt max. 5 pro
Thermostat).
2. Verbindungsstück mit
der mit
markierten
Klemme verbinden.
3. Verbinden Sie einen
Thermostat niemals mit
dem Kanal, aus dem
Sie die zusätzlichen
Ausgänge entnommen
haben!
4. Sie MÜSSEN an allen
Hauptreglern dieselbe
Phase verwenden!
© Danfoss | 2020.08
.
1
1
1
2
UK
Max. number of thermostats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Max. number of actuators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Supported actuator type . . . . . . . . . . . . Normally closed (NC)
Internal fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 A
Conforms with directives. . . . . . . . . . . LVD, EMC, RoHS, WEEE
Supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .220-240 VAC
Supply frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50/60 Hz
Output voltage, actuators . . . . . . . . . . . . . . . . . . . . . . . . 230 VAC
Ambient temp. range, in use . . . . . . . . . . . . . . . . . . . 0 to +50˚C
Storage temp. range . . . . . . . . . . . . . . . . . . . . . . . . . -20 to +60˚C
Output relay, pump . . . . . . . . . . . . . . . . . . . . . 230V, max. 100W
Output relay, boiler * . . . . . . . . . . . . . . .Potential free, max. 2A
Outputs, setback & cooling * . . . . . . . . . . . 230V, when active
Input, setback & cooling* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . Ext. switch input (230V rating)
Rated impulse voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 kV
Temp. for ball pressure test. . . . . . . . . . . . . . . . . . . . . . . . . . . 75˚C
Control polution degree . . . . . . . . . . . . . . . Polution degree 2
Disposal instructions . . . . . . . . . . . . . . . . . . As electronic waste
Operating time. . . . . . . . . . . . . . . . . . . . Permanent connection
* only available on featured versions, code no.:
088U1031,088U1033,088U1034.
Full data sheet available at www.danfoss.com.
UnoFloor
Connecting more than 2 actuators to a single thermostat/room
Anschluss von mehr als 2 Antrieben auf einen Raumthermostaten
2
2
3
4
5
3
4
5
6
7
6
7
8
8
9
10
DE
Max. Anzahl Thermostate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Max. Anzahl Stellantriebe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Unterstützter Stellantriebstyp. . . . . .Normal geschlossen (NC)
Interne Sicherung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 A
Übereinstimmend mit den Richtlinien LVD, EMC, RoHS, WEEE
Versorgungsspannung . . . . . . . . . . . . . . . . . . . . . . . . . 220-240 VAC
Netzfrequenz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50/60 Hz
Ausgangsspannung, Stellantriebe. . . . . . . . . . . . . . . . . . . 230 VAC
Umgebungstemperaturbereich, im Einsatz. . . . . . . 0 bis +50˚C
Lagerungstemperaturbereich . . . . . . . . . . . . . . . . . . -20 bis +60˚C
Ausgangsrelais, Pumpe . . . . . . . . . . . . . . . . . . . . 230V, Max. 100W
Ausgangsrelais, Kessel* . . . . . . . . . . . . . . . .Potentialfrei, Max. 2A
Ausgänge Zurückstellung und Kühlung* . . . . .230V (aktiviert)
Eingang Zurückstellung und Kühlung* . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . Ext. Schalteingang (230 V Leistung)
Bemessungsstoßspannung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 kV
Temperatur für Kugeldruckprüfung . . . . . . . . . . . . . . . . . . . . .75˚C
Einstellung Verschmutzungsgrad . . . .Verschmutzungsgrad 2
Hinweise zur Entsorgung. . . . . . . . . . . . . . . Als Elektronikschrott
Betriebszeit . . . . . . . . . . . . . . . . . . . . . . . . Permanente Verbindung
* nur verfügbar bei der Version mit Sonderfunktionen,
Best.-Nr.: 088U1031, 088U1033, 088U1034
Vollständiges Datenblatt unter www.danfoss.com erhältlich
