English – User Manual
This manual describes the KOBA Vision ZoomCam. The latest versions of the manual can be downloaded from
the KOBA Vision website: www.kobavision.be.
Installation

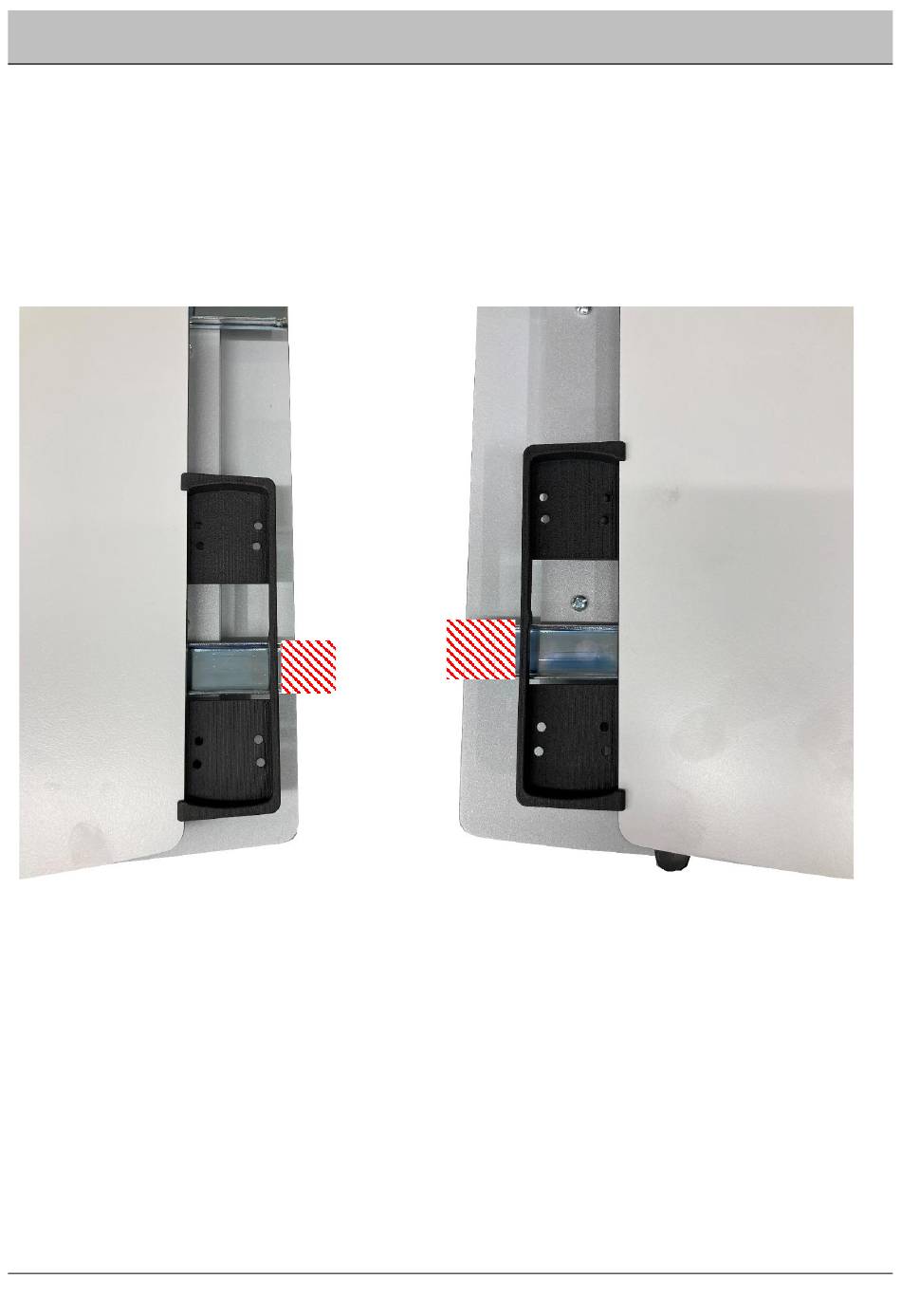

1. Position the holder on the sliding table without removing the tape protection. Pay attention with the slider. The
slider needs to fit in the opening of the holder.
Right installation Left installation
2. Remove the protection of the tape.
3. Paste the plastic remote holder on the left or on the right of the sliding table.
ZoomCam positioning
Slide the table forward and place the ZoomCam in the opening.
Cables
TIP: use the velcro cable ties to secure the cables so that the cables do not fall to the ground when the device is
removed from the sliding table.
XY Sliding table ZoomCam 2
