Channel Function
16 Gobo 1 Rotate
Gobo Wheel 1 Index
17
Fine
18 Gobo Wheel 2
19 Animation Wheel
Animation Wheel
20
Rotate
21 Blade 1-1
22 Blade 1-1Fine
23 Blade 1-2
24 Blade 1-2 Fine
25 Blade 2-1
26 Blade 2-1 Fine
27 Blade 2-2
28 Blade 2-2 Fine
29 Blade 3-1
30 Blade 3-1 Fine
31 Blade 3-2
32 Blade 3-2 Fine
33 Blade 4-1
34 Blade 4-1 Fine
35 Blade 4-2
36 Blade 4-2 Fine
37 Frame Rotate
38 Frame Fine Rotate
39 Focus
40 Fine Focus
9

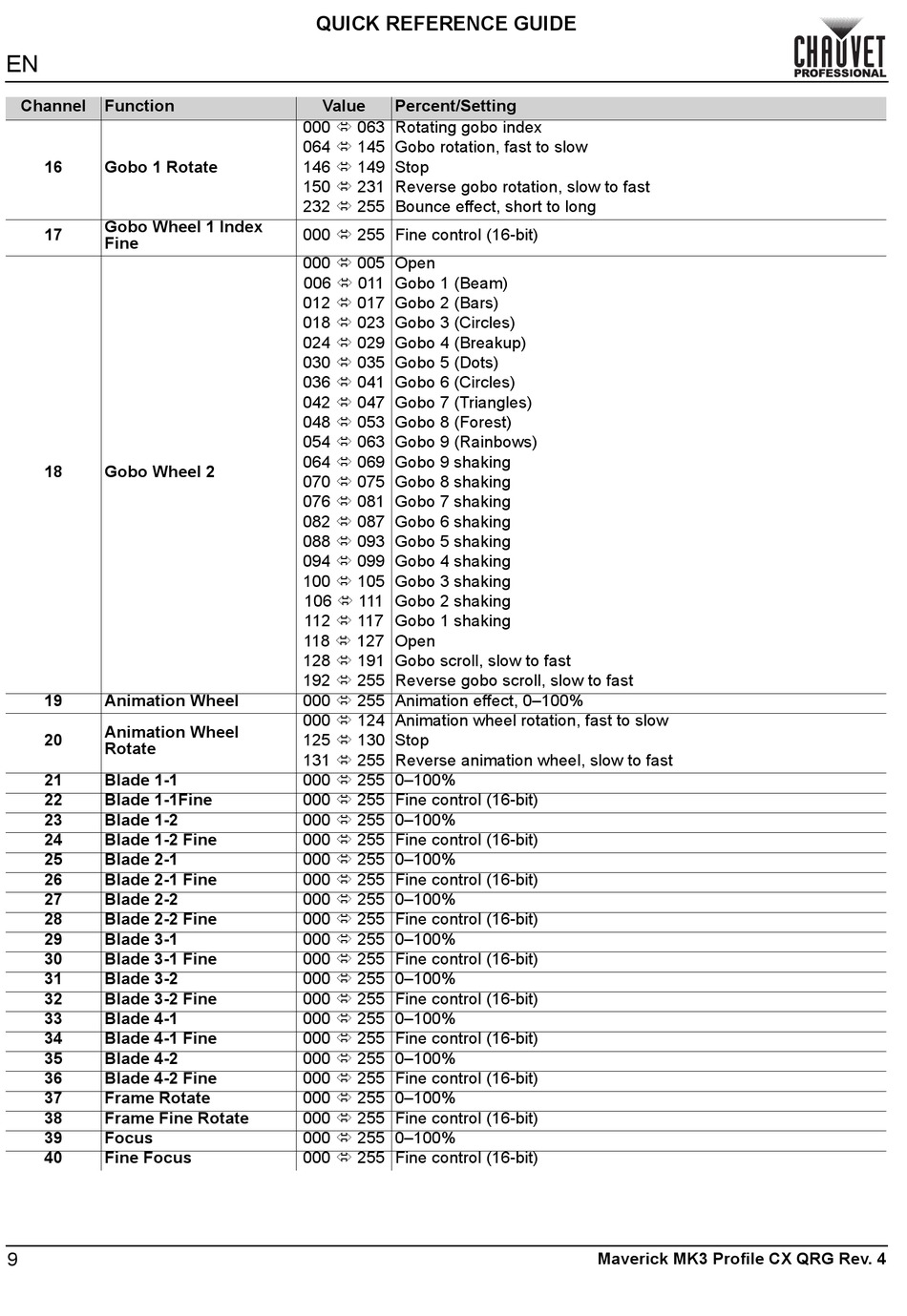

QUICK REFERENCE GUIDE
Value Percent/Setting
000  063 Rotating gobo index
064  145 Gobo rotation, fast to slow
146  149 Stop
150  231 Reverse gobo rotation, slow to fast
232  255 Bounce effect, short to long
000  255 Fine control (16-bit)
000  005 Open
006  011 Gobo 1 (Beam)
012  017 Gobo 2 (Bars)
018  023 Gobo 3 (Circles)
024  029 Gobo 4 (Breakup)
030  035 Gobo 5 (Dots)
036  041 Gobo 6 (Circles)
042  047 Gobo 7 (Triangles)
048  053 Gobo 8 (Forest)
054  063 Gobo 9 (Rainbows)
064  069 Gobo 9 shaking
070  075 Gobo 8 shaking
076  081 Gobo 7 shaking
082  087 Gobo 6 shaking
088  093 Gobo 5 shaking
094  099 Gobo 4 shaking
100  105 Gobo 3 shaking
106  111 Gobo 2 shaking
112  117 Gobo 1 shaking
118  127 Open
128  191 Gobo scroll, slow to fast
192  255 Reverse gobo scroll, slow to fast
000  255 Animation effect, 0–100%
000  124 Animation wheel rotation, fast to slow
125  130 Stop
131  255 Reverse animation wheel, slow to fast
000  255 0–100%
000  255 Fine control (16-bit)
000  255 0–100%
000  255 Fine control (16-bit)
000  255 0–100%
000  255 Fine control (16-bit)
000  255 0–100%
000  255 Fine control (16-bit)
000  255 0–100%
000  255 Fine control (16-bit)
000  255 0–100%
000  255 Fine control (16-bit)
000  255 0–100%
000  255 Fine control (16-bit)
000  255 0–100%
000  255 Fine control (16-bit)
000  255 0–100%
000  255 Fine control (16-bit)
000  255 0–100%
000  255 Fine control (16-bit)
