Automix system

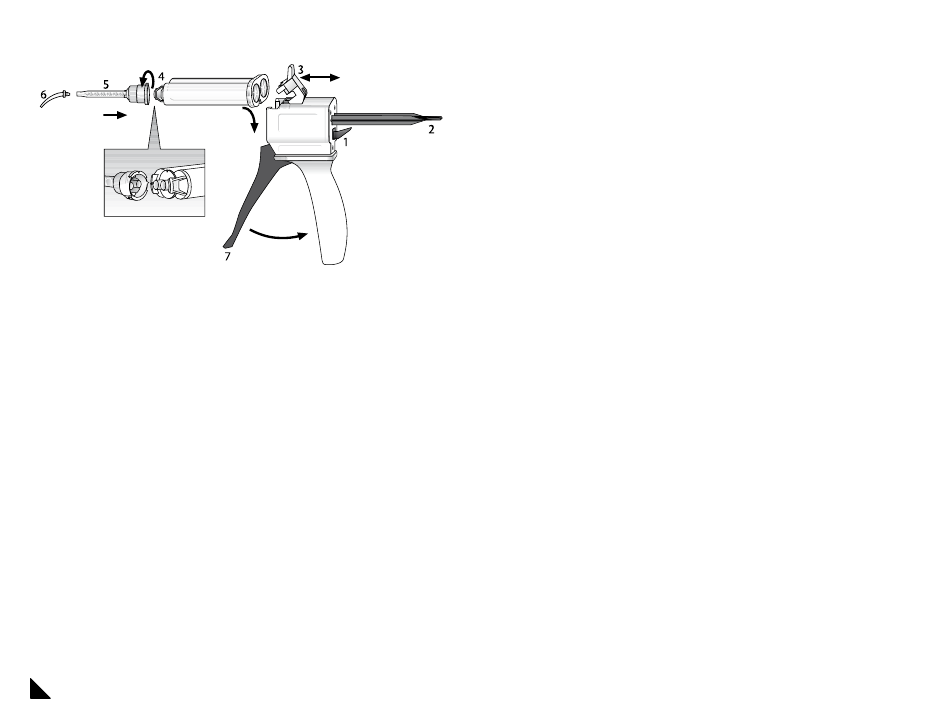

1. Insert cartridge
Push up the lever [1] at the back of the dispens-
ing gun and pull back the slide [2] completely.
Lift up the plastic lever [3], insert the cartridge
and lock it by pushing down the lever [3]. Make
sure that the notches on the cartridge line up
with those on the dispensing gun.
. Attach mixing tip
Remove the cartridge cap [4] or used tip by
turning it counter-clockwise 90°, and discard
it. Attach a new mixing tip [5]. Note the corre-
1
sponding notches. Turn the mixing tip clock-
wise 90° to lock it.
The Intraoral tips [6] are intended for direct
application onto the tooth.
. Apply material
The material is mixed in the mixing tip by pull-
ing the trigger [7] of the dispenser and can be
applied directly.
When using a cartridge for the first time
express a pea-size amount of material and
discard it.
Leave the used tip on the cartridge to serve as
a cap until the next use.
. Remove cartridge
Push up the lever [1] at the back of the dispens-
ing gun and pull back the slide [2] complete-
ly. Lift up the plastic lever [3] and remove the
cartridge.
