PowerLan 200
The following information is displayed for each device discovered :
• Device Name : shows the default device name. A user may change the
name by clicking the name, or by using the Rename button.
An icon is optionally shown with the name. A distinction in icons is made
between low-speed and high-speed devices (14 Mbps or 85 Mbps devices)
• MAC Address : shows the device's MAC address.
• Password : shows the user-supplied device password (initially left blank). A
user may enter the password by using the Enter Password button.
To enter the Password of the device (required when creating a private
network), first select the device by clicking on it's name in the lower panel and

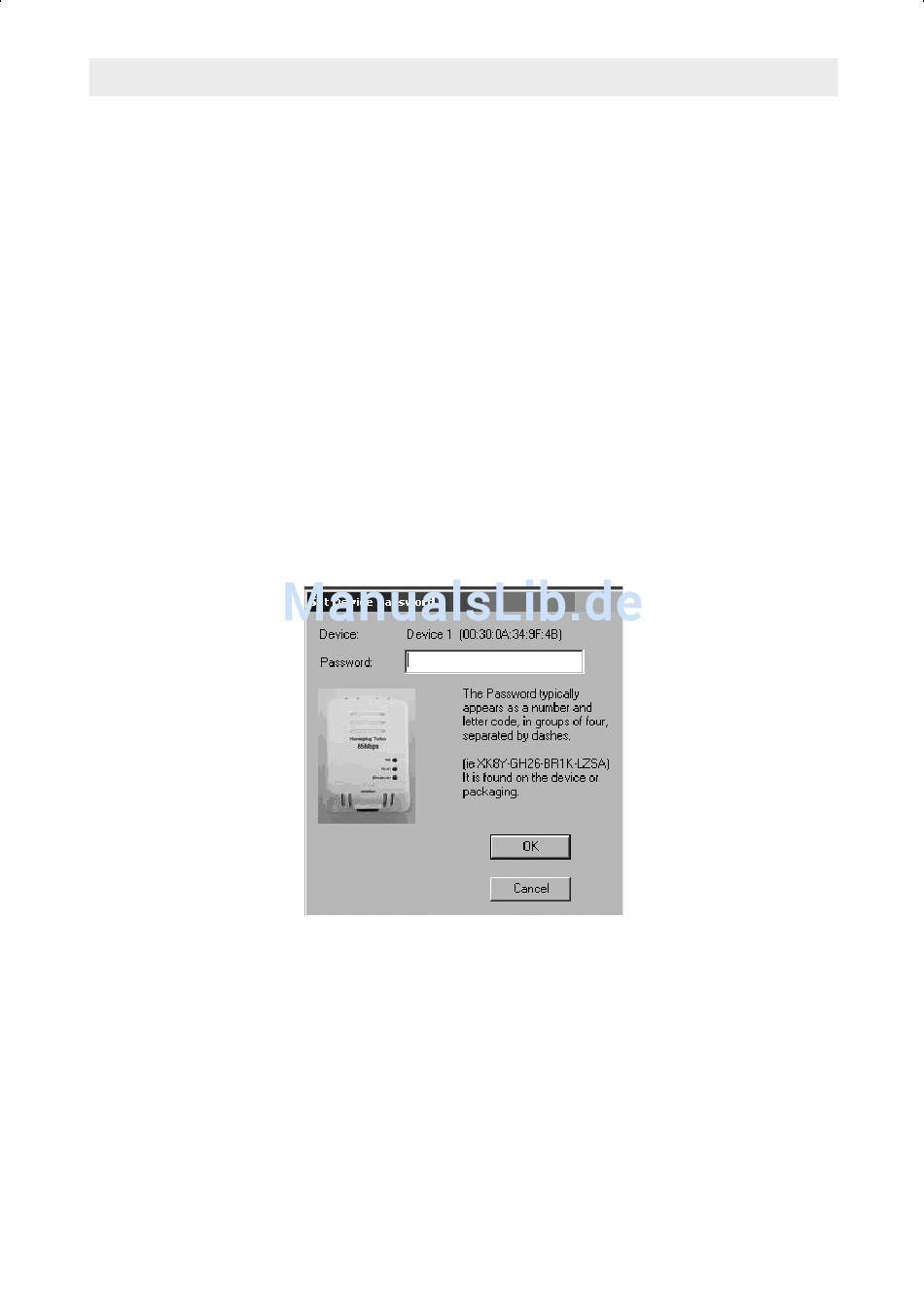

then click on the Enter Password button. A dialog box will appear. The
selected device name is shown. Now enter the password. (The password is
located at the bottom label of the device). Click OK to confirm the password.
A confirmation box will appear if the password was entered correctly.
The Add button is used to add a remote device to your network that is not on
the displayed list in the lower panel, for example, a device currently on another
logical network. Users are advised to locate the passwords for all devices they
wish to manage and add them to the local logical network by clicking on the
Add button. A dialog box will appear. Now enter both a device name and the
password.
