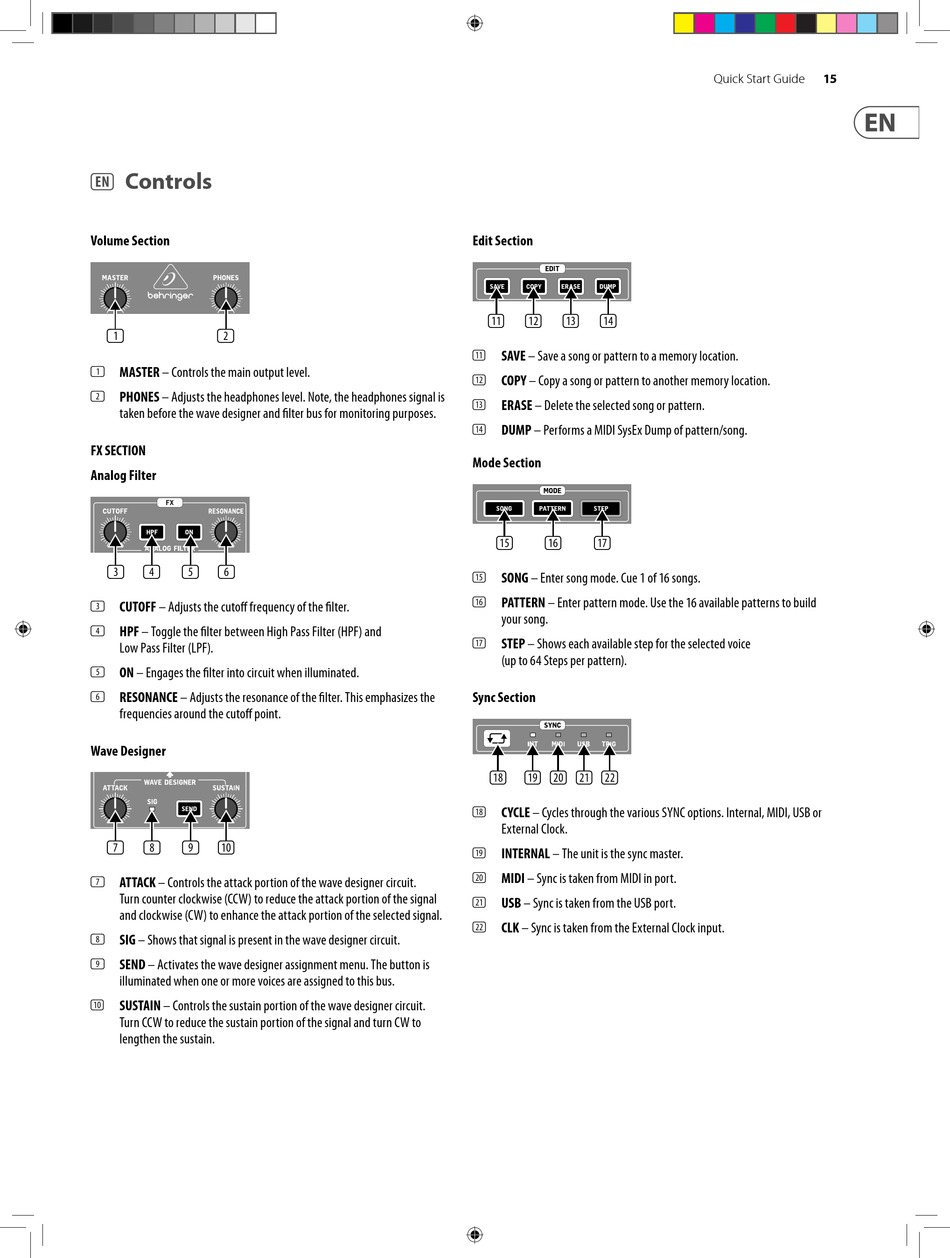

(EN) Controls
Volume Section
(1) (2)
(1) MASTER – Controls the main output level.
(2) PHONES – Adjusts the headphones level. Note, the headphones signal is
taken before the wave designer and filter bus for monitoring purposes.
FX SECTION
Analog Filter
(3) (4) (5) (6)
(3) CUTOFF – Adjusts the cutoff frequency of the filter.
(4) HPF – Toggle the filter between High Pass Filter (HPF) and
Low Pass Filter (LPF).
(5) ON – Engages the filter into circuit when illuminated.
(6) RESONANCE – Adjusts the resonance of the filter. This emphasizes the
frequencies around the cutoff point.
Wave Designer
(7) (8) (9) (10)
(7) ATTACK – Controls the attack portion of the wave designer circuit.
Turn counter clockwise (CCW) to reduce the attack portion of the signal
and clockwise (CW) to enhance the attack portion of the selected signal.
(8) SIG – Shows that signal is present in the wave designer circuit.
(9) SEND – Activates the wave designer assignment menu. The button is
illuminated when one or more voices are assigned to this bus.
SUSTAIN – Controls the sustain portion of the wave designer circuit.
(10)
Turn CCW to reduce the sustain portion of the signal and turn CW to
lengthen the sustain.
Edit Section
(11) (12) (13) (14)
SAVE – Save a song or pattern to a memory location.
(11)
COPY – Copy a song or pattern to another memory location.
(12)
ERASE – Delete the selected song or pattern.
(13)
DUMP – Performs a MIDI SysEx Dump of pattern/song.
(14)
Mode Section
(15) (16) (17)
SONG – Enter song mode. Cue 1 of 16 songs.
(15)
PATTERN – Enter pattern mode. Use the 16 available patterns to build
(16)
your song.
STEP – Shows each available step for the selected voice
(17)
(up to 64 Steps per pattern).
Sync Section
(18) (19) (20) (21) (22)
CYCLE – Cycles through the various SYNC options. Internal, MIDI, USB or
(18)
External Clock.
INTERNAL – The unit is the sync master.
(19)
MIDI – Sync is taken from MIDI in port.
(20)
USB – Sync is taken from the USB port.
(21)
CLK – Sync is taken from the External Clock input.
(22)
