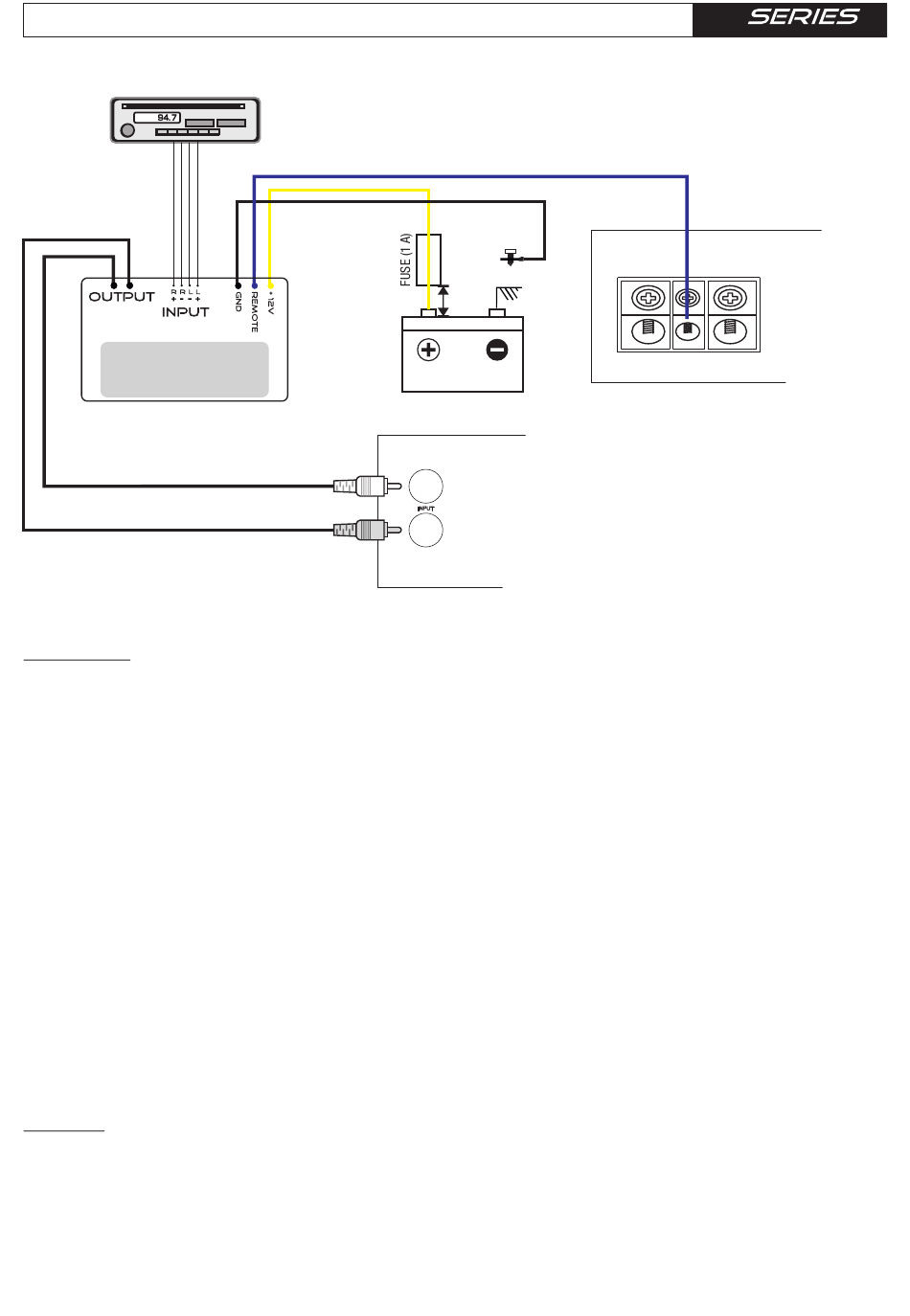

power connections
HEAD UNIT (OEM)
L+
White
L-
White/black
R+
Grey
R-
GRey/black
ATTENTION:
1. Battery disconnection
First disconnect the power supply of the vehicle. This works out the best by removing the ground cable of the
battery.
2. Ground connection
Connect the GND/ground (black) connection of the HLC 2 em with the car chassis. Use a suitable cross
section (0.75 - 2.5 mm ). Make sure, that the connection with the vehicle chassis is free of paint, dirt and dust.
3. +12 V Power connection
Connect the +12 V contact (yellow) of the High-Low adapter via a fuse (1 A) directly to +12 V. This fuse protects
the amplifier and the vehicle against the possibility of a short circuit in the power cable.
4. Remote connection
Connect the REM-terminal (blue) of the HLC 2 em to the remote-input of the amplifier. Therefore use a
0.5 - 1.5 mm power cable. The amplifier turns on as soon as music signal is generated at the input of the High-
Low Adapter.
5. Input
The HLC 2 em has High-Inputs, which have to be connected to speaker output of the head unit (OEM) or
amplifier (OEM).
6. Output
The RCA(Cinch)-outputs of the HLC 2 em have to be connected to the RCA(Cinch)-inputs of the amplifier.
Important in this respect is, that first the gain-control of the connected amplifier is put to minimum. Turn up
only if necessary.
In this regard, AUDIO SYSTEM germany recommends to adjust your amplifier through a
specialized service center, dealer or a specialist.
2
GROUND
Max.
30 cm
BATTERY
AMPLIFIER
3
z
accessoires
+12V
REM
GND
AMPLIFIER
