from Media Converter 1 TX to Media Converter 2 RX, and from
Media Converter 1 RX to Media Converter 2 TX. Maximum length
and fiber cable specification depend on the model. (See Models.)
POWER
Plug the power adapter into the 5 V DC input jack on the media
converter, then connect it to a regular power outlet. Only use
the included power adapter or one with matching specifications
(output of 5 V DC, at least 1 A).

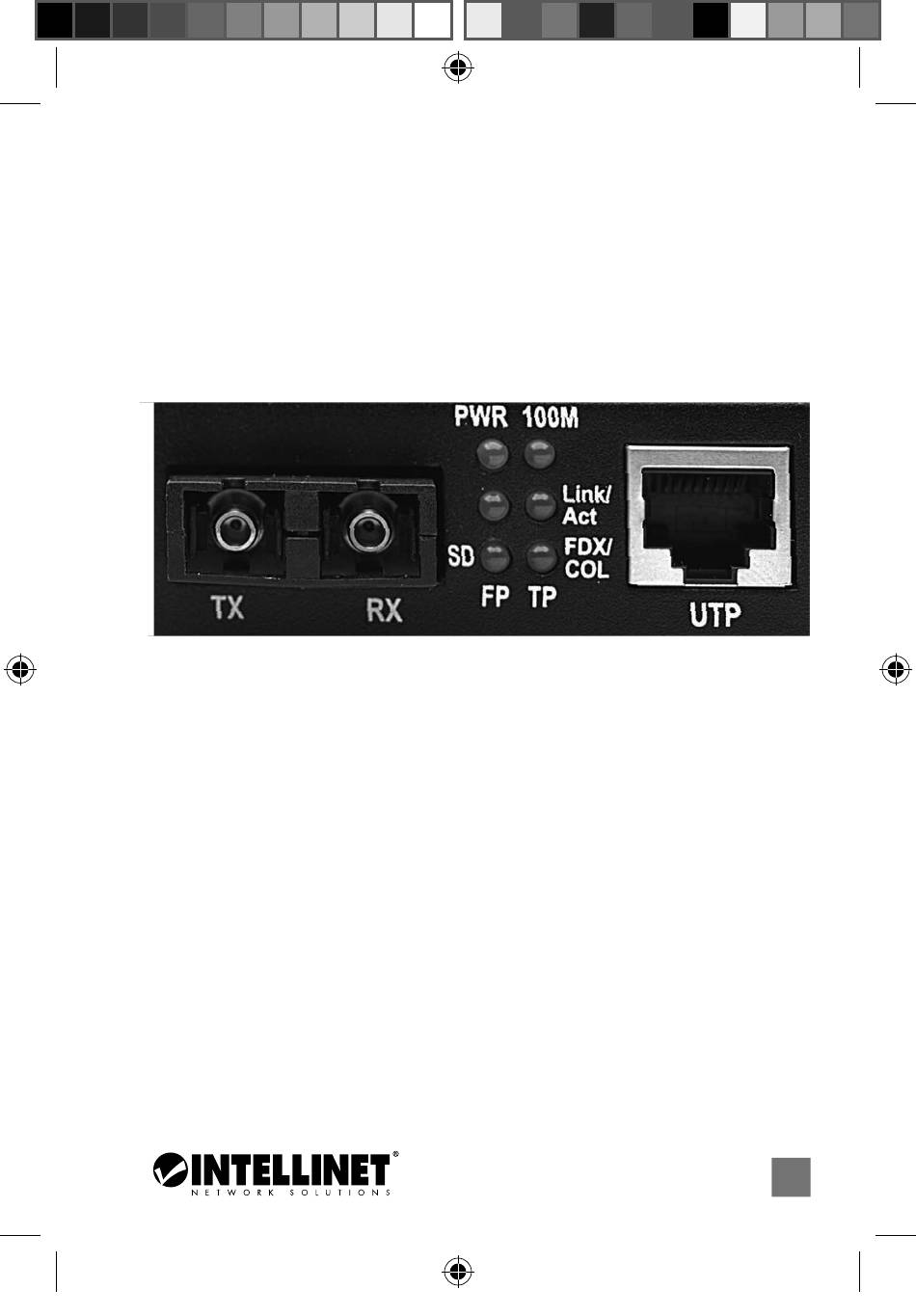

LEDS
PWR – The power adapter is connected when lit.
100M – 100 Mbps link on the twisted pair connection when lit;
10 Mbps link or no link if unlit.
Link/Act (TP = RJ45; FP = Fiber) – Active link when lit; data traffic
FDX/COL (for TP/RJ45) – Full duplex connection when lit; data
SD (for FP/Fiber) – Fiber optic signal is detected when lit; no
For specifications, go to intellinetnetwork.com.
506502_506519_507332_02_man_ML1.indd 3
when flashing; no active network link when unlit.
collisions when flashing; half duplex when unlit.
signal when unlit.
3
ENGLISH
