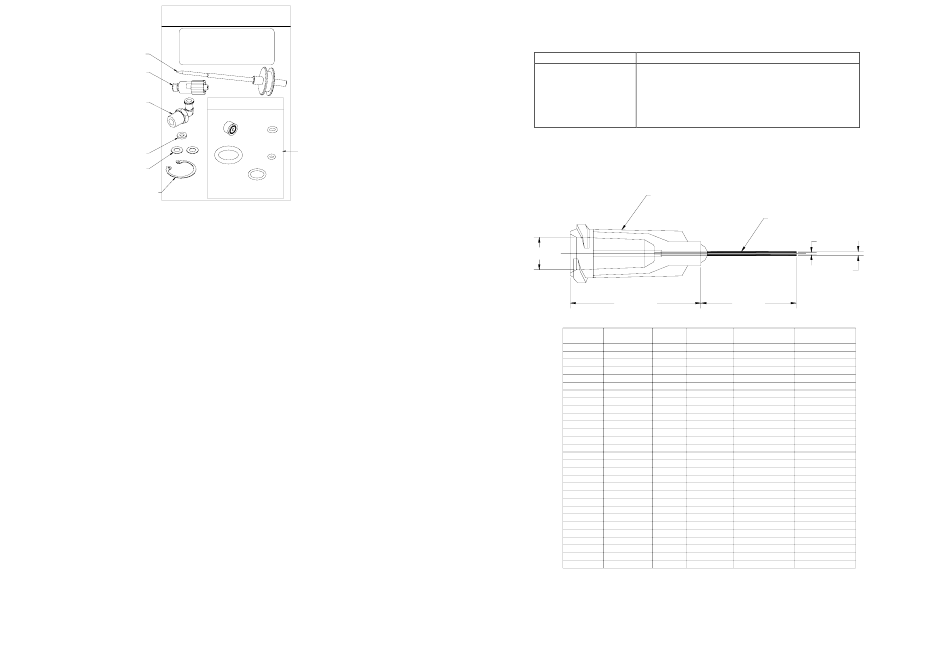

NEEDLE/PISTON ASSY (5)
LUER ADAPTER ASSY (9)
FLUID INLET FITTING
NYLON WASHER (12)
MYLAR WASHER (14)
RETAINING RING (3)
5420-VALVEKIT ==> 5420-VALVEKIT
Repair kit, needle valve ==> Kit de réparation pour valve à aiguille
NEEDLE/PISTON ASSEMBLY ==> Ensemble piston/aiguille
LUER ADAPTER ASSY ==> Adaptateur à baïonnette
FLUID INLET FITTING ==> Ensemble d'entrée de fluide
Nylon WASHER ==> Joint nylon
MYLAR WASHER ==> Joint Mylar
RETAINING RING ==> Circlip
SEALKIT ==> Kit de joints
Techcon Systems is an OK International Brand
Copyright © All Rights Reserved • TS941 Rev 04/04
5420-VALVEKIT
REPAIR KIT, NEEDLE VALVE
SEAL KIT
Figure 6.0
35
9.2 Accessoires
Kit de montage sur table:
RÉFÉRENCE DESCRIPTION
918-033-000 Support de production
918-000-012 Pince
1212-000-008 Barre de montage
(Ces trois composants sont nécessaires pour
réaliser un support de table)
Diagramme TE d'Aiguille
Hub... ==> Embout (polypropylène)
Cannula... ==> Canule (acier inox)
HUB (POLYPROPYLENE)
(Ø.170)
(.684±.025)
PART # COLOR HUB GAUGE
TE714050 OLIVE 14
TE714100 OLIVE 14
TE714150 OLIVE 14
TE715050 AMBER 15
TE715100 AMBER 15
TE715150 AMBER 15
TE718050 GREEN 18
TE718100 GREEN 18
TE718150 GREEN 18
TE720050 PINK 20
TE720100 PINK 20
TE720150 PINK 20
TE721050 PURPLE 21
TE721100 PURPLE 21
TE721150 PURPLE 21
TE722050 BLUE 22
TE722100 BLUE 22
TE722150 BLUE 22
TE723050 ORANGE 23
TE723100 ORANGE 23
TE723150 ORANGE 23
TE725050 RED 25
TE725100 RED 25
TE725150 RED 25
TE727025 CLEAR 27
TE727050 CLEAR 27
TE730025 LAVENDER 30
TE730050 LAVENDER 30
TE732025 YELLOW 32
Techcon Systems is an OK International Brand
Copyright © All Rights Reserved • TS941 Rev 04/04
CANNULA (STAINLESS STEEL)
"A" DIM.
"B" DIM.
"C" DIM.
"C" DIM. Ø"A" DIM. Ø"B" DIM.
1/2" 0.0610/0.0650 0.0820/0.0840
1.0" 0.0610/0.0650 0.0820/0.0840
1-1/2" 0.0610/0.0650 0.0820/0.0840
1/2" 0.0525/0.0555 0.0715/0.0725
1.0" 0.0525/0.0555 0.0715/0.0725
1-1/2" 0.0525/0.0555 0.0715/0.0725
1/2" 0.0315/0.0345 0.0495/0.0505
1.0" 0.0315/0.0345 0.0495/0.0505
1-1/2" 0.0315/0.0345 0.0495/0.0505
1/2" 0.0230/0.0245 0.0355/0.0360
1.0" 0.0230/0.0245 0.0355/0.0360
1-1/2" 0.0230/0.0245 0.0355/0.0360
1/2" 0.0195/0.0210 0.0320/0.0325
1.0" 0.0195/0.0210 0.0320/0.0325
1-1/2" 0.0195/0.0210 0.0320/0.0325
1/2" 0.0155/0.0170 0.0280/0.0285
1.0" 0.0155/0.0170 0.0280/0.0285
1-1/2" 0.0155/0.0170 0.0280/0.0285
1/2" 0.0125/0.0140 0.0250/0.0255
1.0" 0.0125/0.0140 0.0250/0.0255
1-1/2" 0.0125/0.0140 0.0250/0.0255
1/2" 0.0095/0.0110 0.0200/0.0205
1.0" 0.0095/0.0110 0.0200/0.0205
1-1/2" 0.0095/0.0110 0.0200/0.0205
1/4" 0.0075/0.0090 0.0160/0.0165
1/2" 0.0075/0.0090 0.0160/0.0165
1/4" 0.0055/0.0070 0.0120/0.0125
1/2" 0.0055/0.0070 0.0120/0.0125
1/4" 0.0035/0.0050 0.0090/0.0095
