Crouzet GNR Installationsanleitung

CROUZET SOLID STATE RELAYS - DIN RAIL MOUNT PRODUCTS have been developed to offer all the advantages of electronic switching technology. The 22.5 mm industrial
housing is quick to install. The product is compact and reliable. Please refer to the data sheet available on www.crouzet.com
GNR GNR+

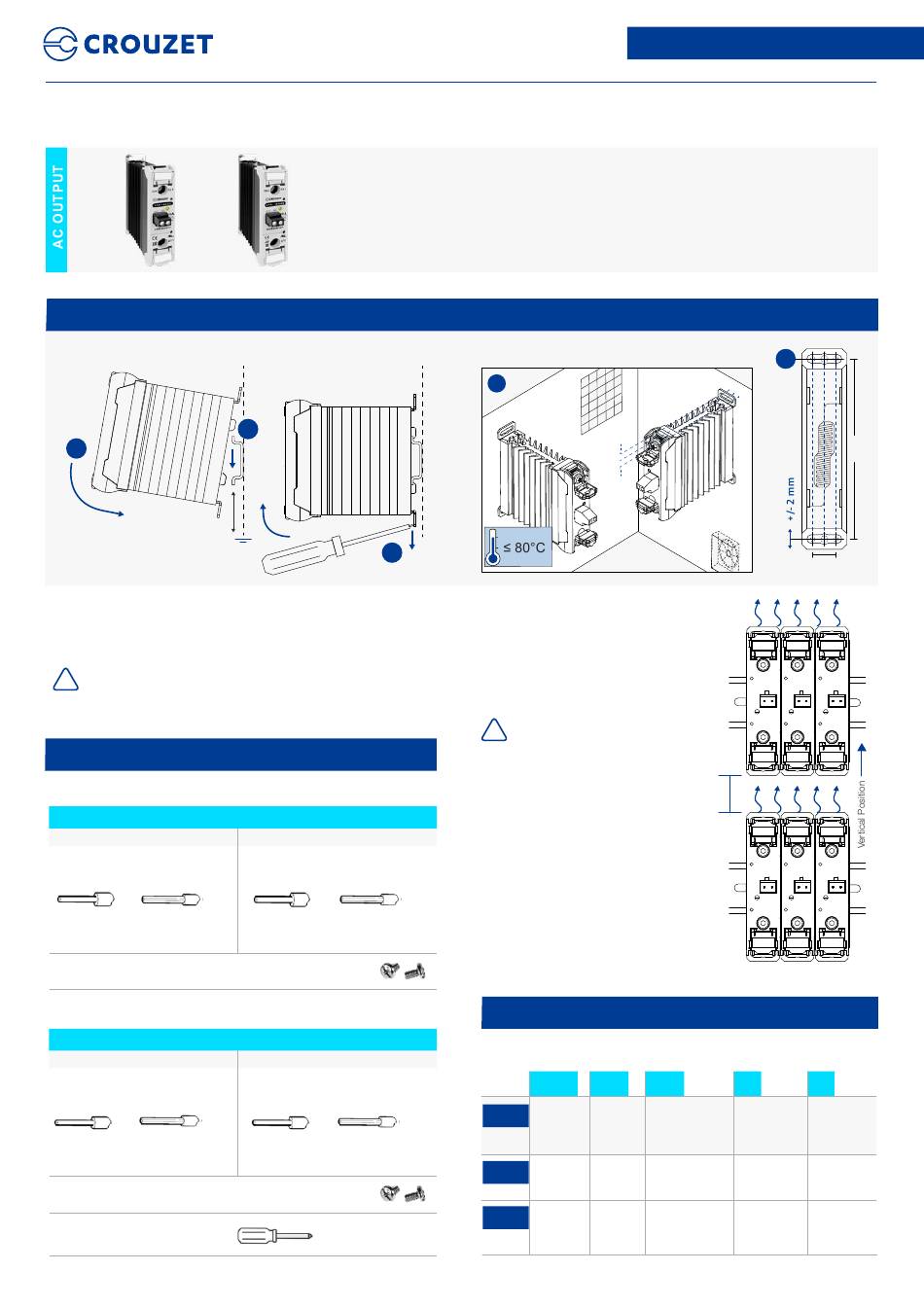

MOUNTING INSTRUCTIONS
MOUNTING ON DIN RAIL
2
DIN rail connected to protection
wire (ground)
1.
Locate rail and align with the top part of the DIN clip in the back of the SSR
2.
Using reasonable force, push the SSR in the direction of the arrows
3.
To remove, place the screwdriver on the clip and push in the direction shown
!
WARNING:
Removing product from RAIL DIN incorrectly by not using the
appropriate tool will damage the latching system
CONNECTION
OUTPUT WIRING
NUMBER OF WIRES - Direct connection with wires with or without ferrules
1
SOLID STRANDED
(No ferrule) (With ferrule)
1.5..10 mm² 1.5..6 mm²
AWG16..AWG8 AWG16..AWG10
RECOMMENDED TIGHTENING TORQUE:
INPUT WIRING
NUMBER OF WIRES - Direct connection with wires with or without ferrules
1
SOLID STRANDED
(No ferrule) (With ferrule)
0.75..2.5 mm² 0.2..2.5 mm²
AWG18..AWG14 AWG26..AWG12
RECOMMENDED TIGHTENING TORQUE:
SCREWDRIVER TYPE:
POZIDRIV 2
SSR - DIN-RAIL MOUNT
DIN Rail - AC Output Single Phase
• Output current of 20 and 30 Amps
• Output voltage of 24-280 VAC, 25-500 VAC
and 48-660 VAC
• Input voltage of 4-32 VDC, 80-140 VAC
and 180-280 VAC
DISMOUNTING
1
3
2
SOLID STRANDED
(No ferrule) (With ferrule)
1.5..10 mm² 1.5..6 mm²
AWG16..AWG8 AWG16..AWG10
M5 SCREW N.M
Min 1.2/Typ 1.7 /Max 2
2
SOLID STRANDED
(No ferrule) (With ferrule)
0.75..2.5 mm² 0.2..2.5 mm²
AWG18..AWG14 AWG26..AWG12
M5 SCREW N.M
Min 0.4 / Max 0.5
• Zero cross or random (instantaneous) switching
• Integrated IP20 touch-safe removable covers
• Built-in overvoltage protection
• LED input status indicator
MOUNTING ON PANEL
1
M4
M5
M4
DIN Rail SSR includes tabs for panel
mounting
1.
Align the SSR tabs with panel surface,
screw top and bottom sides
2.
Drill can be vertically adjusted +/- 2 mm
!
WARNING:
The user should protect
heat sensitive materials as well as people
against any contact with the heatsink.
For correct cooling, the SSR needs air
convection. Less air convection produces
an abnormal heating. In the event there is
no space between two SSRs, reduce the
load current. Forced cooling (ex. fan inside
the cabinet) significantly improves the
thermal performance.
Heatsink temperature should never exceed
90°C.
PART NUMBER NOMENCLATURE
Output Control
Channels Current Voltage
GNR 20
GNR:
20: 20 A DC:
GNR
Single
30: 30 A BC:
Channel
AC:
GNR:
25: DC:
30 A
GNR
Single
Channel
GNR: 30: DC:
30 A
GNR+
Single
32: BC:
32 A
Channel
45:
45 A
INSTALLATION SHEET
2
12.7 mm
80
mm
Switching Output
Type Voltage
DC R L
4-32 VDC Z: Zero Cross L: 280 VAC
80-140 VAC H: 660 VAC
180-280 VAC
R: H:
4-32 VDC Random 500 VAC
Z: P:
4-32 VDC Special 500 VAC
180-280 VAC Zero Cross
88
mm
