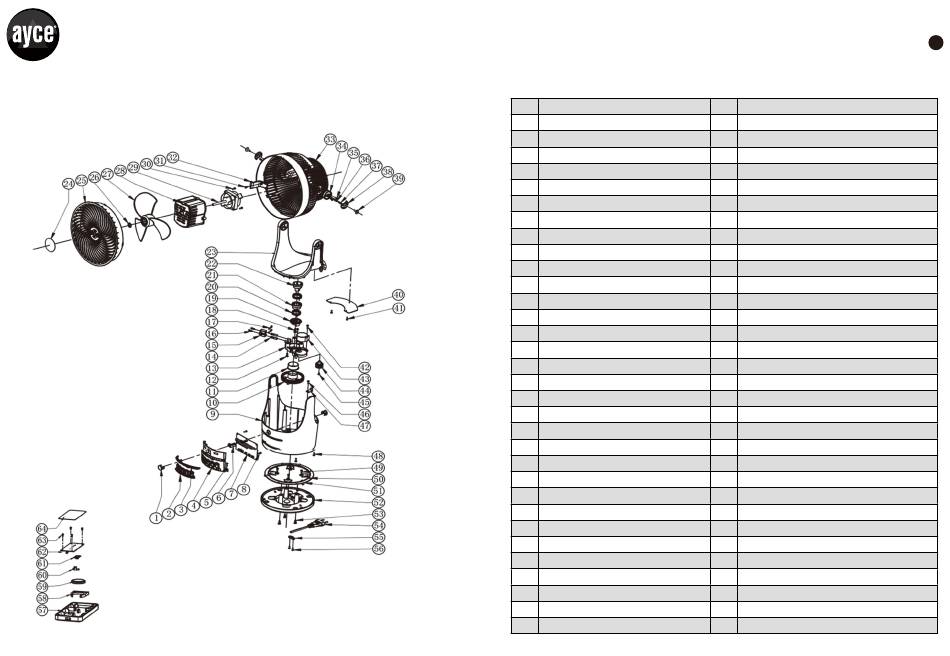

TECHNICAL DRAWING
SPARE PARTS LIST
NO.
DESCRIPTION
1
RECEIVING WINDOW
2
BUTTON
3
LED DISPLAY LIGHT BELT
4
PCB SUPPORT
5
SCREW
6
RECEIVING HEAD SEAT
7
CONTROL PANEL
8
SCREW
9
FUSELAGE
10
BIG GEAR
11
SLEEVE
12
SCREW
13
ROTATING SUPPORT
14
ELECTRIC BRUSH
15
ELECTRIC BRUSH BRACKET
16
SCREW
17
WIRE WAY
18
SCREW
19
INSULATING SLEEVE
20
COPPER RING
21
LOWER BUNDLE RING
22
UPPER BUNDLE RING
23
FUSELAGE
24
DECORATIVE SHEET
25
NET COVER
26
FAN LEAF CARD REED
27
BLADE
28
MOTOR COVER
29
MAIN MOTOR
30
SCREW
31
SCREW
32
FILE COVER
62 | 63
NO.
DESCRIPTION
33
REAR COVER
34
REAR AXLE
35
SCREW
36
SMALL SPRING
37
POSITIONING NAIL
38
SEPARATION BLADE
39
SCREW
40
POWER SUPPLY BOARD
41
SCREW
42
SCREW
43
PROGRESSIVE MOTOR
44
PINION
45
SCREW
46
SCREW
47
RECEIVING BOARD
48
SCREW
49
SCREW
50
STEEL BALL
51
WEAR RING
52
BASE COVER
53
SCREW
54
POWER CORD
55
LINE CODE
56
SCREW
57
REMOTE CONTROL BOX
58
BATTERY COVER
59
BATTERY
60
BATTERY POSITIVE CONTACT
61
BATTERY NEGATIVE CONTACT
62
REMOTE CONTROL PCB BOARD
63
SCREW
64
REMOTE CONTROL PANEL
