Super Audio CD / Blu-Ray Disc player
UD8004

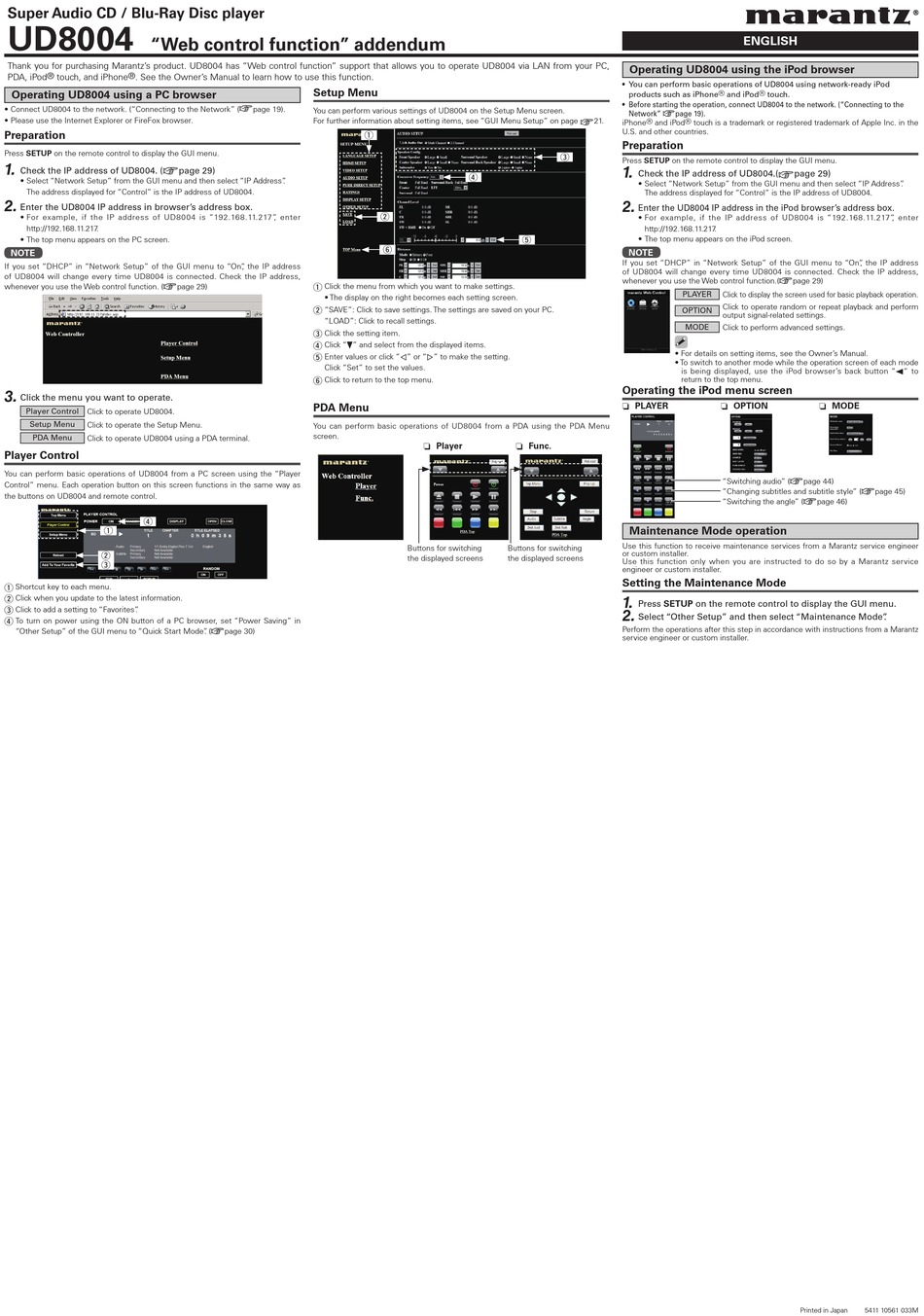

"Web control function" addendum
Thank you for purchasing Marantz's product. UD8004 has "Web control function" support that allows you to operate UD8004 via LAN from your PC,
PDA, iPod ® touch, and iPhone ® . See the Owner's Manual to learn how to use this function.
Operating UD8004 using a PC browser
• Connect UD8004 to the network. ("Connecting to the Network" ( v page 19).
• Please use the Internet Explorer or FireFox browser.
Preparation
Press SETUP on the remote control to display the GUI menu.
1.
Check the IP address of UD8004. (vpage 29)
• Select "Network Setup" from the GUI menu and then select "IP Address" .
The address displayed for "Control" is the IP address of UD8004.
2.
Enter the UD8004 IP address in browser's address box.
• For example, if the IP address of UD8004 is "192.168.11.217" , enter
http://192.168.11.217 .
• The top menu appears on the PC screen.
NOTE
If you set "DHCP" in "Network Setup" of the GUI menu to "On" , the IP address
of UD8004 will change every time UD8004 is connected. Check the IP address,
whenever you use the Web control function. (vpage 29)
3.
Click the menu you want to operate.
Player Control
Click to operate UD8004.
Setup Menu
Click to operate the Setup Menu.
PDA Menu Click to operate UD8004 using a PDA terminal.
Player Control
You can perform basic operations of UD8004 from a PC screen using the "Player
Control" menu. Each operation button on this screen functions in the same way as
the buttons on UD8004 and remote control.
r
q
w
e
q
Shortcut key to each menu.
w
Click when you update to the latest information.
e
Click to add a setting to "Favorites" .
r
To turn on power using the ON button of a PC browser, set "Power Saving" in
"Other Setup" of the GUI menu to "Quick Start Mode" . (vpage 30)
Setup Menu
You can perform various settings of UD8004 on the Setup Menu screen.
For further information about setting items, see "GUI Menu Setup" on page v 21.
q
r
w
y
q
Click the menu from which you want to make settings.
• The display on the right becomes each setting screen.
w
"SAVE": Click to save settings. The settings are saved on your PC.
"LOAD": Click to recall settings.
e
Click the setting item.
r
Click " f " and select from the displayed items.
t
Enter values or click " o " or " p " to make the setting.
Click "Set" to set the values.
y
Click to return to the top menu.
PDA Menu
You can perform basic operations of UD8004 from a PDA using the PDA Menu
screen.
n Player
Buttons for switching
the displayed screens
Operating UD8004 using the iPod browser
• You can perform basic operations of UD8004 using network-ready iPod
products such as iPhone ® and iPod ® touch.
• Before starting the operation, connect UD8004 to the network. ("Connecting to the
Network" vpage 19).
iPhone ® and iPod ® touch is a trademark or registered trademark of Apple Inc. in the
U.S. and other countries.
Preparation
e
Press SETUP on the remote control to display the GUI menu.
1.
Check the IP address of UD8004.( v page 29)
• Select "Network Setup" from the GUI menu and then select "IP Address" .
The address displayed for "Control" is the IP address of UD8004.
2.
Enter the UD8004 IP address in the iPod browser's address box.
• For example, if the IP address of UD8004 is "192.168.11.217" , enter
http://192.168.11.217 .
t
• The top menu appears on the iPod screen.
NOTE
If you set "DHCP" in "Network Setup" of the GUI menu to "On" , the IP address
of UD8004 will change every time UD8004 is connected. Check the IP address,
whenever you use the Web control function.(vpage 29)
PLAYER
OPTION
• For details on setting items, see the Owner's Manual.
• To switch to another mode while the operation screen of each mode
is being displayed, use the iPod browser's back button " 0 " to
return to the top menu.
Operating the iPod menu screen
n PLAYER
n Func.
Maintenance Mode operation
Use this function to receive maintenance services from a Marantz service engineer
Buttons for switching
or custom installer.
the displayed screens
Use this function only when you are instructed to do so by a Marantz service
engineer or custom installer.
Setting the Maintenance Mode
1.
Press SETUP on the remote control to display the GUI menu.
2.
Select "Other Setup" and then select "Maintenance Mode" .
Perform the operations after this step in accordance with instructions from a Marantz
service engineer or custom installer.
ENGLISH
Click to display the screen used for basic playback operation.
Click to operate random or repeat playback and perform
output signal-related settings.
MODE
Click to perform advanced settings.
n OPTION n MODE
"Switching audio" (vpage 44)
"Changing subtitles and subtitle style" (vpage 45)
"Switching the angle" (vpage 46)
Printed in Japan 5411 10561 033M
