2. ASSEMBLY

Cautiously remove each component's
protective packaging prior to assembly.
We recommend that the seat be assem-
bled on a soft surface, such as a carpet.

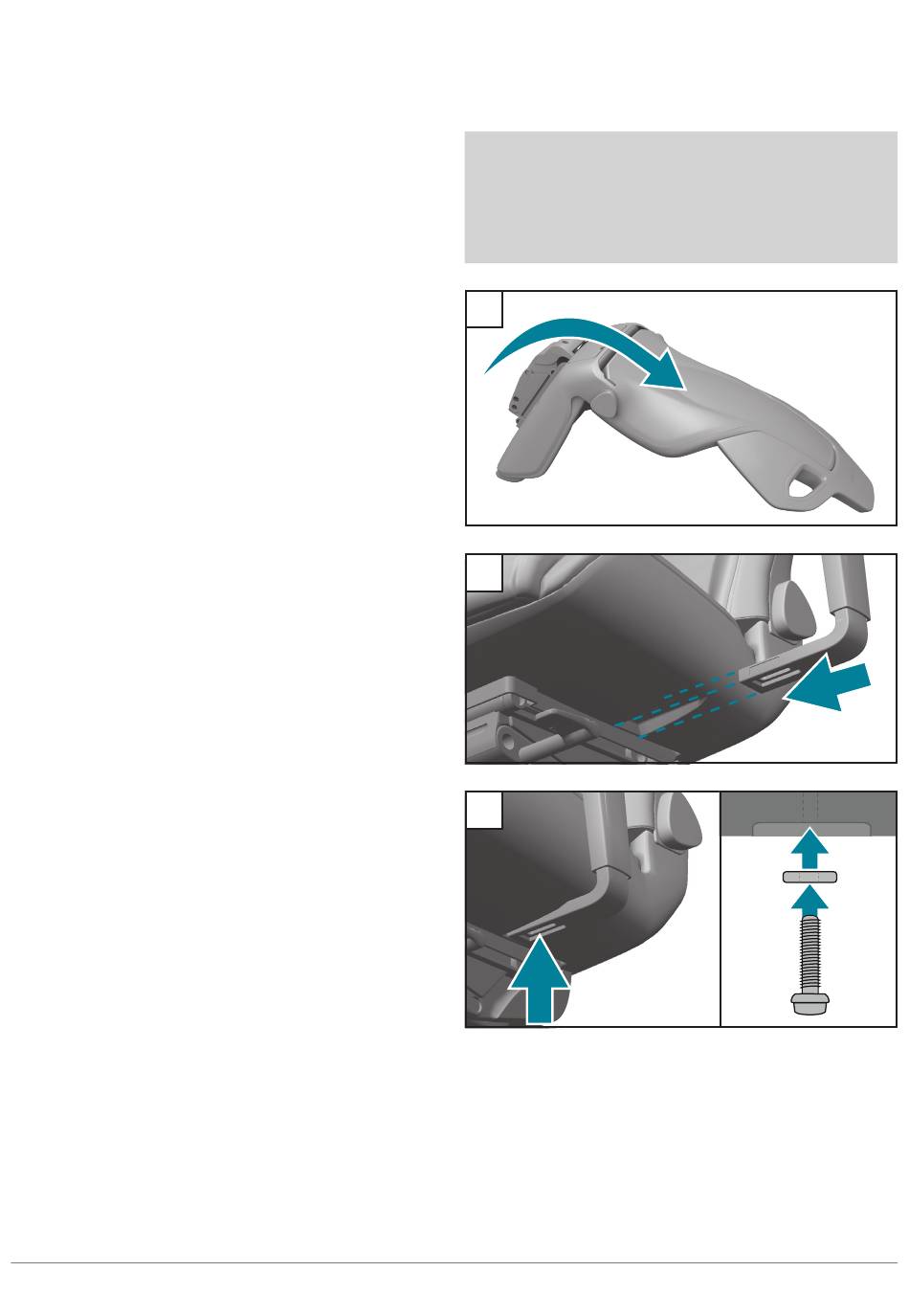

2.1 Attach armrests to the seat

1. To facilitate attaching the armrests,
we recommend that you tilt the module
forward. [1]
2. Insert each armrest's end piece into its
corresponding recess found on each side
of the seat shell's base. [2]
3. To fasten each armrest, use the hex key
and one of the two screws with washer
provided. First place the washer in the
groove of the armrest. Then push the
screw from below into the hole provided
in the seat cushion. Make sure that you
tighten the screw well with the hex key.
[3]
5. To attach the other armrest, repeat steps
2 through 3.
16
The following items are required for
this step: seat shell/backrest/mechanics
module, 2 armrests, 2 screws,
2 washers, hex key.
1
2
3
