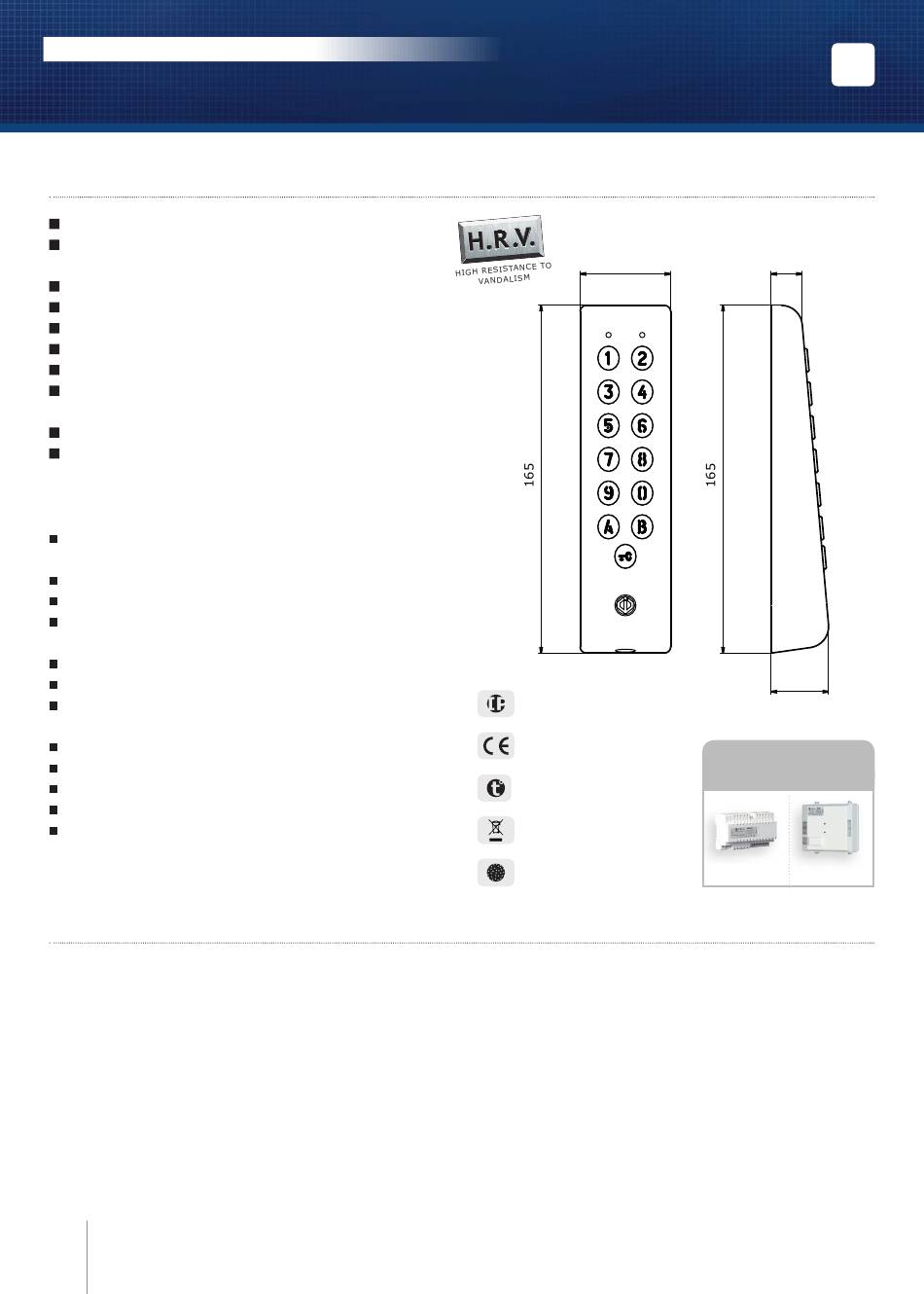

1] PRODUCT PRESENTATION

Construction: Stainless steel.
Capacity of 100 user codes
of 4 to 6 digits.
Stored in non-volatile EPROM memory.
Buzzer audible signal.
13-backlit keys.
Illumination mode: permanent or timed.
High resistance to vandalism (HRV).
Master code and the User codes can be
of 4 to 6-digit in length.
100 user codes.
2 Form «C» Relay outputs:
6A at 250V relay.
1A at 120V relay.
Adjustable time output :
1 to 99 seconds, select 00 for toggle mode.
1 Request-to-Exit input.
1 Requeest-to-Enter Key.
Operating voltage:
12 to 24V ac and 12 to 48V dc.
Input voltage: 12 to 24V ac or 12 to 48V dc.
Consumption: 25 to 80mA.
Recommended for activating
and desactivating your alarm system.
Surface-mount.
Free voltage.
Mounting with Diax
Dimensions (L x W x D): 165 x 43 x 27 mm.
User modification of codes.
2] NOTES & RECOMMENDATIONS
Recommended power supplies
suitable for the PROFIL100EINT
- ARD12 (230V input), BS60 (230V input).
- Separate power supply for the control elements.
Mounting recommendations
Mount the keypad on a flat surface to avoid
any vandalism and to insure the best mounting.
Wiring reminder
Make sure to insulate any unused wires.
2
cdvigroup.com
screws.
®
43
IP64
CE Certification
-25°C to +70°C
WEEE & RoHS
Suitable for use in
marine environments
Security advice
For security advice reasons, change
the factory default master code.
When selecting a master code
and user code avoid simple codes
(example : 3 4 5 6 7).
Back EMF protection
To secure the system from back electromagnetic
fields do not forget to mount the varistor
in parallel on the lock.
