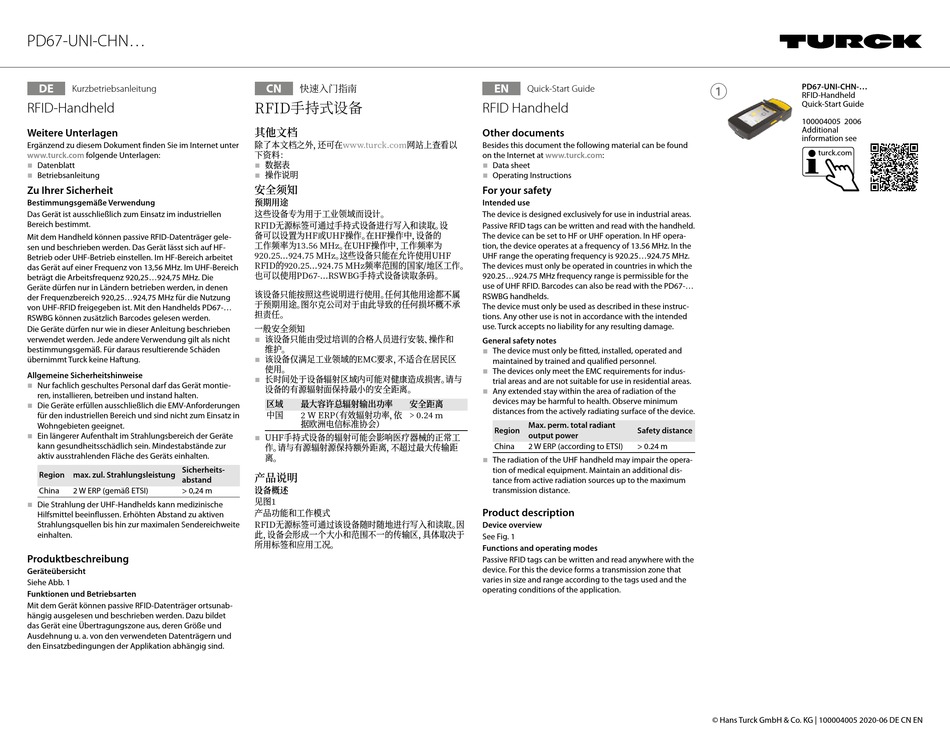

PD67-UNI-CHN...
DE
Kurzbetriebsanleitung
RFID-Handheld
Weitere Unterlagen
Ergänzend zu diesem Dokument finden Sie im Internet unter
www.turck.com
folgende Unterlagen:
Datenblatt
Betriebsanleitung
Zu Ihrer Sicherheit
Bestimmungsgemäße Verwendung
Das Gerät ist ausschließlich zum Einsatz im industriellen
Bereich bestimmt.
Mit dem Handheld können passive RFID-Datenträger gele-
sen und beschrieben werden. Das Gerät lässt sich auf HF-
Betrieb oder UHF-Betrieb einstellen. Im HF-Bereich arbeitet
das Gerät auf einer Frequenz von 13,56 MHz. Im UHF-Bereich
beträgt die Arbeitsfrequenz 920,25...924,75 MHz. Die
Geräte dürfen nur in Ländern betrieben werden, in denen
der Frequenzbereich 920,25...924,75 MHz für die Nutzung
von UHF-RFID freigegeben ist. Mit den Handhelds PD67-...
RSWBG können zusätzlich Barcodes gelesen werden.
Die Geräte dürfen nur wie in dieser Anleitung beschrieben
verwendet werden. Jede andere Verwendung gilt als nicht
bestimmungsgemäß. Für daraus resultierende Schäden
übernimmt Turck keine Haftung.
Allgemeine Sicherheitshinweise
Nur fachlich geschultes Personal darf das Gerät montie-
ren, installieren, betreiben und instand halten.
Die Geräte erfüllen ausschließlich die EMV-Anforderungen
für den industriellen Bereich und sind nicht zum Einsatz in
Wohngebieten geeignet.
Ein längerer Aufenthalt im Strahlungsbereich der Geräte
kann gesundheitsschädlich sein. Mindestabstände zur
aktiv ausstrahlenden Fläche des Geräts einhalten.
Sicherheits-
Region max. zul. Strahlungsleistung
abstand
China
2 W ERP (gemäß ETSI)
> 0,24 m
Die Strahlung der UHF-Handhelds kann medizinische
Hilfsmittel beeinflussen. Erhöhten Abstand zu aktiven
Strahlungsquellen bis hin zur maximalen Sendereichweite
einhalten.
Produktbeschreibung
Geräteübersicht
Siehe Abb. 1
Funktionen und Betriebsarten
Mit dem Gerät können passive RFID-Datenträger ortsunab-
hängig ausgelesen und beschrieben werden. Dazu bildet
das Gerät eine Übertragungszone aus, deren Größe und
Ausdehnung u. a. von den verwendeten Datenträgern und
den Einsatzbedingungen der Applikation abhängig sind.
快速入门指南
CN
RFID手持式设备
其他文档
除了本文档之外, 还可在www.turck.com网站上查看以
下资料:
数据表
操作说明
安全须知
预期用途
这些设备专为用于工业领域而设计。
RFID无源标签可通过手持式设备进行写入和读取。 设
备可以设置为HF或UHF操作。 在HF操作中, 设备的
工作频率为13.56 MHz。 在UHF操作中, 工作频率为
920.25...924.75 MHz。 这些设备只能在允许使用UHF
RFID的920.25...924.75 MHz频率范围的国家/地区工作。
也可以使用PD67-...RSWBG手持式设备读取条码。
该设备只能按照这些说明进行使用。 任何其他用途都不属
于预期用途。 图尔克公司对于由此导致的任何损坏概不承
担责任。
一般安全须知
该设备只能由受过培训的合格人员进行安装、 操作和
维护。
该设备仅满足工业领域的EMC要求, 不适合在居民区
使用。
长时间处于设备辐射区域内可能对健康造成损害。 请与
设备的有源辐射面保持最小的安全距离。
区域
最大容许总辐射输出功率
安全距离
中国
2 W ERP (有效辐射功率, 依
> 0.24 m
据欧洲电信标准协会)
UHF手持式设备的辐射可能会影响医疗器械的正常工
作。 请与有源辐射源保持额外距离, 不超过最大传输距
离。
产品说明
设备概述
见图1
产品功能和工作模式
RFID无源标签可通过该设备随时随地进行写入和读取。 因
此, 设备会形成一个大小和范围不一的传输区, 具体取决于
所用标签和应用工况。
EN
Quick-Start Guide
RFID Handheld
Other documents
Besides this document the following material can be found
on the Internet at www.turck.com:
Data sheet
Operating Instructions
For your safety
Intended use
The device is designed exclusively for use in industrial areas.
Passive RFID tags can be written and read with the handheld.
The device can be set to HF or UHF operation. In HF opera-
tion, the device operates at a frequency of 13.56 MHz. In the
UHF range the operating frequency is 920.25...924.75 MHz.
The devices must only be operated in countries in which the
920.25...924.75 MHz frequency range is permissible for the
use of UHF RFID. Barcodes can also be read with the PD67-...
RSWBG handhelds.
The device must only be used as described in these instruc-
tions. Any other use is not in accordance with the intended
use. Turck accepts no liability for any resulting damage.
General safety notes
The device must only be fitted, installed, operated and
maintained by trained and qualified personnel.
The devices only meet the EMC requirements for indus-
trial areas and are not suitable for use in residential areas.
Any extended stay within the area of radiation of the
devices may be harmful to health. Observe minimum
distances from the actively radiating surface of the device.
Max. perm. total radiant
Region
Safety distance
output power
China
2 W ERP (according to ETSI)
> 0.24 m
The radiation of the UHF handheld may impair the opera-
tion of medical equipment. Maintain an additional dis-
tance from active radiation sources up to the maximum
transmission distance.
Product description
Device overview
See Fig. 1
Functions and operating modes
Passive RFID tags can be written and read anywhere with the
device. For this the device forms a transmission zone that
varies in size and range according to the tags used and the
operating conditions of the application.
PD67-UNI-CHN-...
RFID-Handheld
Quick-Start Guide
100004005 2006
Additional
information see
turck.com
© Hans Turck GmbH & Co. KG | 100004005 2020-06 DE CN EN
