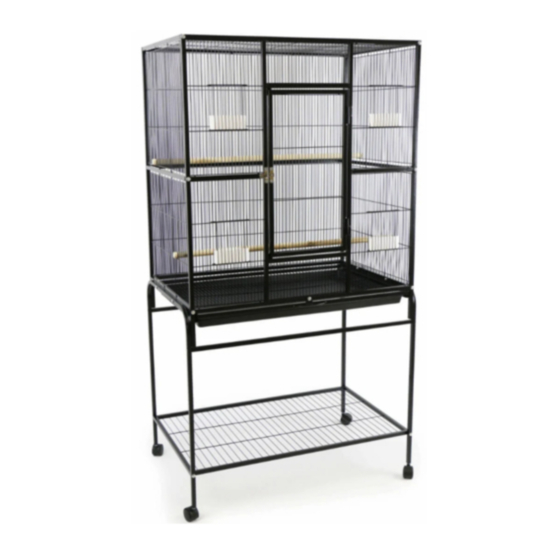

Zolia Conga Montageanleitung

Assembly Instruction/ Notice de montage/ Intrucciones de montaje / Montageanleitung/ Intruzioni per
EN- Accessory details:
A- Font Mesh x1/ B- Back Mesh x1/ C- Side Mesh x2/ D- Top Stand x6/ E- Bottom tray x1/ F- Bottom Grate x1/ G- Long Side Board
x2/ H- Short Side Board x2/ I- Caster x4/ Stainless Steel Cup x3/ Cup ring x3/ Wood perch x2/ 6x10mm Screw x8/ 6mm Screw Nut
x8/ 6x25mm Screw x24
FR- Liste des accessoires​ :
A- Devant x1/ B- Fond x1/ C- Panneaux de côtés x2/ D- Panneaux de dessus x6/ E- Tiroir x1/ F- Grille de fond x1/ G- Grands
panneaux de côté x2/ H- Petits panneaux de côté x2/ I- Roulettes x4/ Mangeoires x3/ Fixations mangeoires x3/ Perchoirs en bois x2/
Vis 6x10mm x8/ Ecrous 6mm x8/ Vis 6x25mm x24
ES- Lista de accesorios:
A- Frontal x1 / B- Inferior x1 / C- Paneles laterales x2 / D- Paneles superiores x6 / E- Cajón x1 / F- Rejilla inferior x1 / G- Paneles
laterales grandes x2 / H- Paneles laterales pequeños x2 / I- Ruedas x4 / Comedero x3 / Fijación comedero x3 / Perchas Madera x2 /
Tornillos 6x10mm x8 / Tuercas 6mm x8 / Tornillos 6x25mm x24
DE- Zubehörliste:
A- Vorderseite x1 / B- Unterseite x1 / C- Seitenwände x2 / D- Oberseite x6 / E- Schublade x1 / F- Bodengitter x1 / G- Große
Seitenwände x2 / H- Kleine Seitenwände x2 / I-Rollen x4 / Näpfe x3 /Napfhalterungen x3 /Sitzstangen x2 / Schrauben 6x10mm x8 /
Muttern 6mm x8 / Schrauben 6x25mm x24
IT- Lista degli accesori:
A-Davanti x1/ B- Fondo x1/ C- Pannelli laterali x2/ D- Pannelli superiori x6/ E- Cassetto x1/ F- Griglia fondo x1/ G- Grandi pannelli
laterali x2/ H- Piccoli pannelli laterali x2/ I - route x4/ Mangiatoia x3/ Fissazioni mangiatoia x3/ Asta in legno x2/ Viti 6 x 10 mm x8/
Bulloni 6 mm x8/ Viti 6 x 25 mm x24
PT- Lista de acessórios:
A- Frente x1/B- Fundo x1/ C- Painéis laterais x2/D- Painéis superiores x6/ E- Gaveta x1/F- Grelha de fundo x1/G- Painéis laterais
grandes x2/H- Painéis laterais pequenos x2/ I- Rodas x4/ Comedouros x3/ Fixações comedouros x3/ Poleiros de madeira x2/
6x10mm parafusos x8/ Porcas 6mm x8/ Parafusos 6x25mm
NL- Lijst met accessoires:
​ A - Voorzijde x1 / B- Bodem x1 / C- Zijpanelen x2 / D- Bovenste panelen x6 / E- Bodemplaat x1 / F- Bodemrooster x1 / G- Grote
zijpanelen x2 / H- Kleine zijpanelen x2 / I- Wielen x4 / Voerbakken x3 / Bevestigingen voor voerbakken x3 / Houten zitstokken x2 /
Schroeven 6x10mm x8 / Moeren 6mm x8 / Schroeven 6x25mm x24
l'uso / Instruções / Montage instructies
