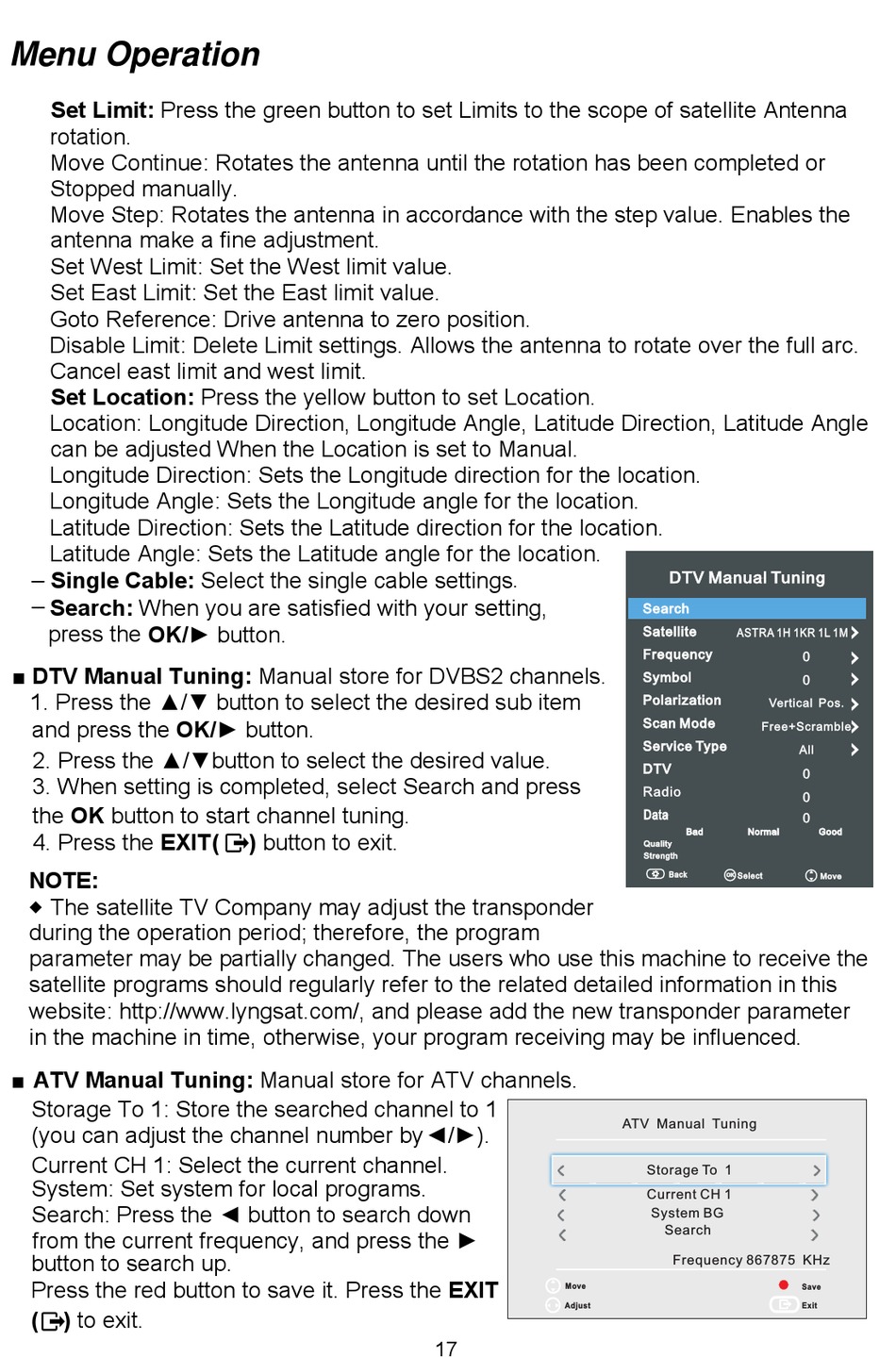

Menu Operation
Set Limit: Press the green button to set Limits to the scope of satellite Antenna
rotation.
Move Continue: Rotates the antenna until the rotation has been completed or
Stopped manually.
Move Step: Rotates the antenna in accordance with the step value. Enables the
antenna make a fine adjustment.
Set West Limit: Set the West limit value.
Set East Limit: Set the East limit value.
Goto Reference: Drive antenna to zero position.
Disable Limit: Delete Limit settings. Allows the antenna to rotate over the full arc.
Cancel east limit and west limit.
Set Location: Press the yellow button to set Location.
Location: Longitude Direction, Longitude Angle, Latitude Direction, Latitude Angle
can be adjusted When the Location is set to Manual.
Longitude Direction: Sets the Longitude direction for the location.
Longitude Angle: Sets the Longitude angle for the location.
Latitude Direction: Sets the Latitude direction for the location.
Latitude Angle: Sets the Latitude angle for the location.
– Single Cable: Select the single cable settings .
–
Search: When you are satisfied with your setting,
press the OK/► button.
■ DTV Manual Tuning: Manual store for DVBS2 channels.
1. Press the ▲/▼ button to select the desired sub item
and press the OK/► button.
2. Press the ▲/▼button to select the desired value.
3. When setting is completed, select Search and press
the OK button to start channel tuning.
4. Press the EXIT (
NOTE:
 The satellite TV Company may adjust the transponder
during the operation period; therefore, the program
parameter may be partially changed. The users who use this machine to receive the
satellite programs should regularly refer to the related detailed information in this
website: http://www.lyngsat.com/, and please add the new transponder parameter
in the machine in time, otherwise, your program receiving may be influenced.
■ ATV Manual Tuning: Manual store for ATV channels.
Storage To 1: Store the searched channel to 1
(you can adjust the channel number by◄/►).
Current CH 1: Select the current channel.
System: Set system for local programs.
Search: Press the ◄ button to search down
from the current frequency, and press the ►
button to search up.
Press the red button to save it. Press the EXIT
( ) to exit.
) button to exit.
Move
Adjust
17
DTV Manual Tuning
Search
Satellite
ASTRA 1H 1KR 1L 1M
Frequency
Symbol
Polarization
Vertical Pos.
Scan Mode
Free+Scramble
Service Type
DTV
Radio
Data
Bad Normal
Quality
Strength
Back
Select
OK
ATV Manual Tuning
Storage To 1
Current CH 1
System BG
Search
Frequency 867875 KHz
0
0
All
0
0
0
Good
Move
Save
Exit
