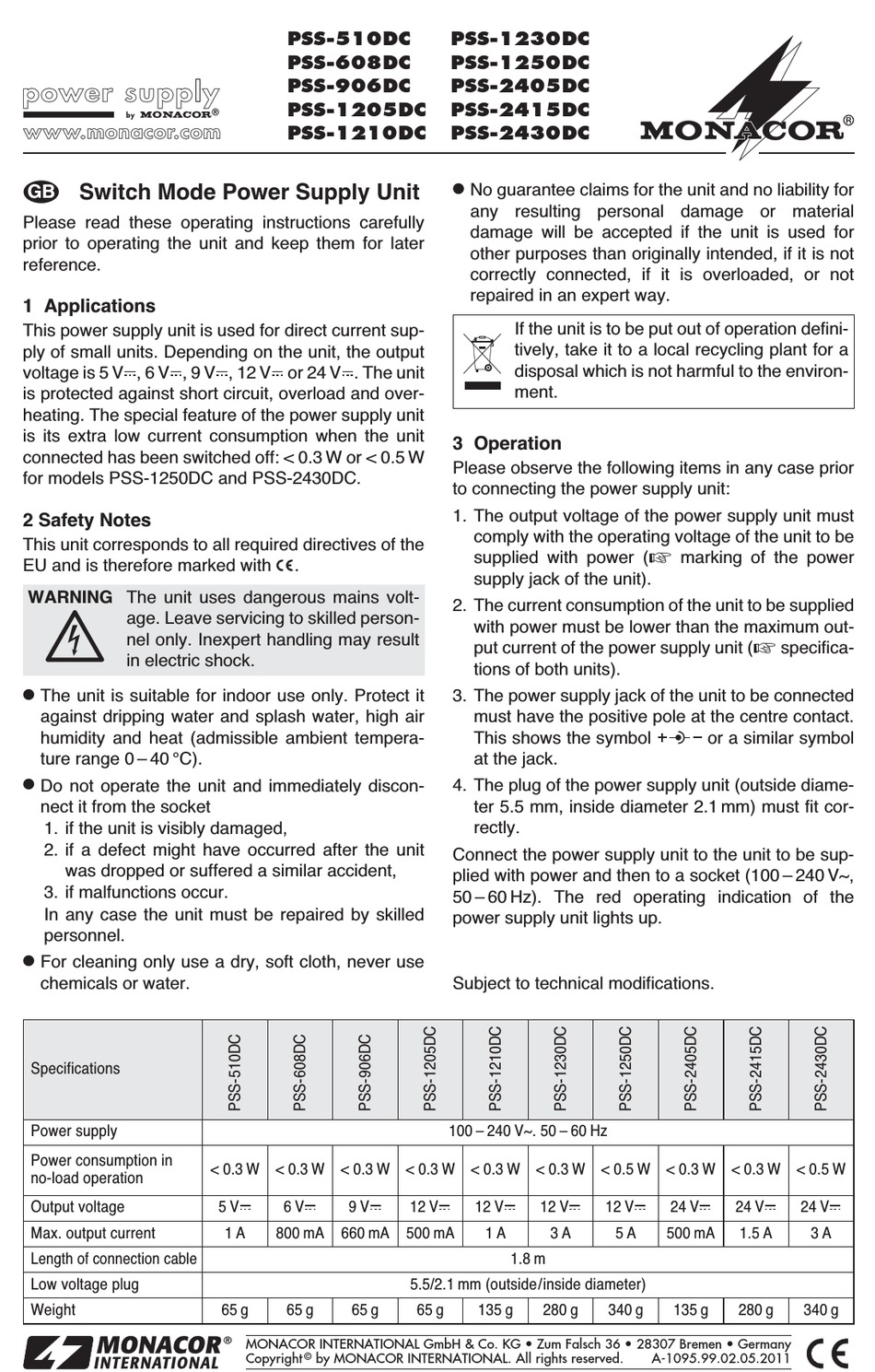

Switch Mode Power Supply Unit
GB
Please read these operating instructions carefully
prior to operating the unit and keep them for later
reference.
1 Applications
This power supply unit is used for direct current sup-
ply of small units. Depending on the unit, the output
voltage is 5 V , 6 V , 9 V , 12 V or 24 V . The unit
is protected against short circuit, overload and over-
heating. The special feature of the power supply unit
is its extra low current consumption when the unit
connected has been switched off: < 0.3 W or < 0.5 W
for models PSS-1250DC and PSS-2430DC.

2 Safety Notes

This unit corresponds to all required directives of the
EU and is therefore marked with
WARNING The unit uses dangerous mains volt -
age. Leave servicing to skilled person-
nel only. Inexpert handling may result
in electric shock.
G
The unit is suitable for indoor use only. Protect it
against dripping water and splash water, high air
humidity and heat (admissible ambient tempera-
ture range 0 – 40 °C).
G
Do not operate the unit and immediately discon-
nect it from the socket
1. if the unit is visibly damaged,
2. if a defect might have occurred after the unit
was dropped or suffered a similar accident,
3. if malfunctions occur.
In any case the unit must be repaired by skilled
personnel.
G
For cleaning only use a dry, soft cloth, never use
chemicals or water.
Specifications
Power supply
Power consumption in
no-load operation
Output voltage
Max. output current
Length of connection cable
Low voltage plug
Weight
PSS-510 DC
PSS-608 DC
PSS-906 DC
PSS-1205 DC
®
PSS-1210 DC
.
< 0.3 W < 0.3 W < 0.3 W < 0.3 W < 0.3 W < 0.3 W < 0.5 W < 0.3 W < 0.3 W < 0.5 W
5 V 6 V 9 V
1 A 800 mA 660 mA 500 mA
65 g 65 g 65 g
®
MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
Copyright © by MONACOR INTERNATIONAL. All rights reserved.
PSS-1230 DC
PSS-1250 DC
PSS-2405 DC
PSS-2415 DC
PSS-2430 DC
G
No guarantee claims for the unit and no liability for
any resulting personal damage or material
damage will be accepted if the unit is used for
other purposes than originally intended, if it is not
correctly connected, if it is overloaded, or not
repaired in an expert way.
If the unit is to be put out of operation defini-
tively, take it to a local recycling plant for a
disposal which is not harmful to the environ-
ment.

3 Operation

Please observe the following items in any case prior
to connecting the power supply unit:
1. The output voltage of the power supply unit must
comply with the operating voltage of the unit to be
supplied with power (
supply jack of the unit).
2. The current consumption of the unit to be supplied
with power must be lower than the maximum out-
put current of the power supply unit (
tions of both units).
3. The power supply jack of the unit to be connected
must have the positive pole at the centre contact.
This shows the symbol
at the jack.
4. The plug of the power supply unit (outside diame-
ter 5.5 mm, inside diameter 2.1 mm) must fit cor-
rectly.
Connect the power supply unit to the unit to be sup-
plied with power and then to a socket (100 – 240 V~,
50 – 60 Hz). The red operating indication of the
power supply unit lights up.
Subject to technical modifications.
100 – 240 V~. 50 – 60 Hz
12 V 12 V 12 V
1 A 3 A
1.8 m
5.5/2.1 mm (outside / inside diameter)
65 g 135 g 280 g
marking of the power
or a similar symbol
12 V 24 V 24 V
5 A 500 mA 1.5 A
340 g 135 g 280 g
A-1095.99.02.05.2011
specifica-
24 V
3 A
340 g
