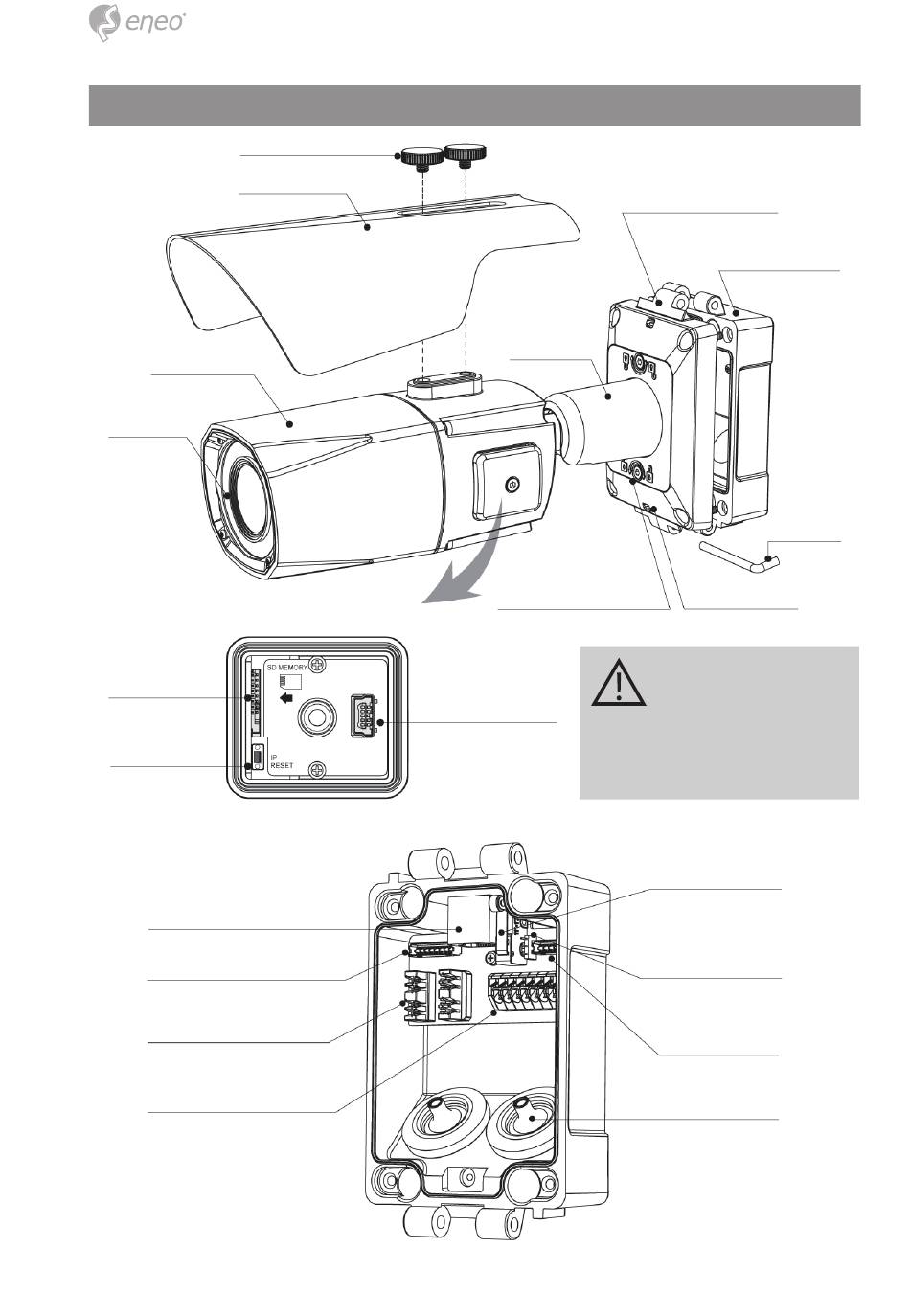

Part names

Sunshield bolt
Sunshield
Body Case
Dual window
Inside of Opening Cover
Micro SD Card slot
IP Reset
(Default)
Junction Box Base
User Network connector
Ethernet from Cam.
Network wiring Connector (LSA)
for user network
Power/ Alarm/ Audio
6
Bracket
2x Lock/Unlock Screw
Wireless adapter
Connector port
Junction Box Top
Junction Box Base
Hinge Pin
2x Water drain
Please close the cover
after setting up and
tighten it properly.
Otherwise, moisture
can get inside the
housing.
Cover opening alarm switch
(Sabotage alarm)
Alarm Input selection jumper
Power & I/O from Cam.
Grommet
