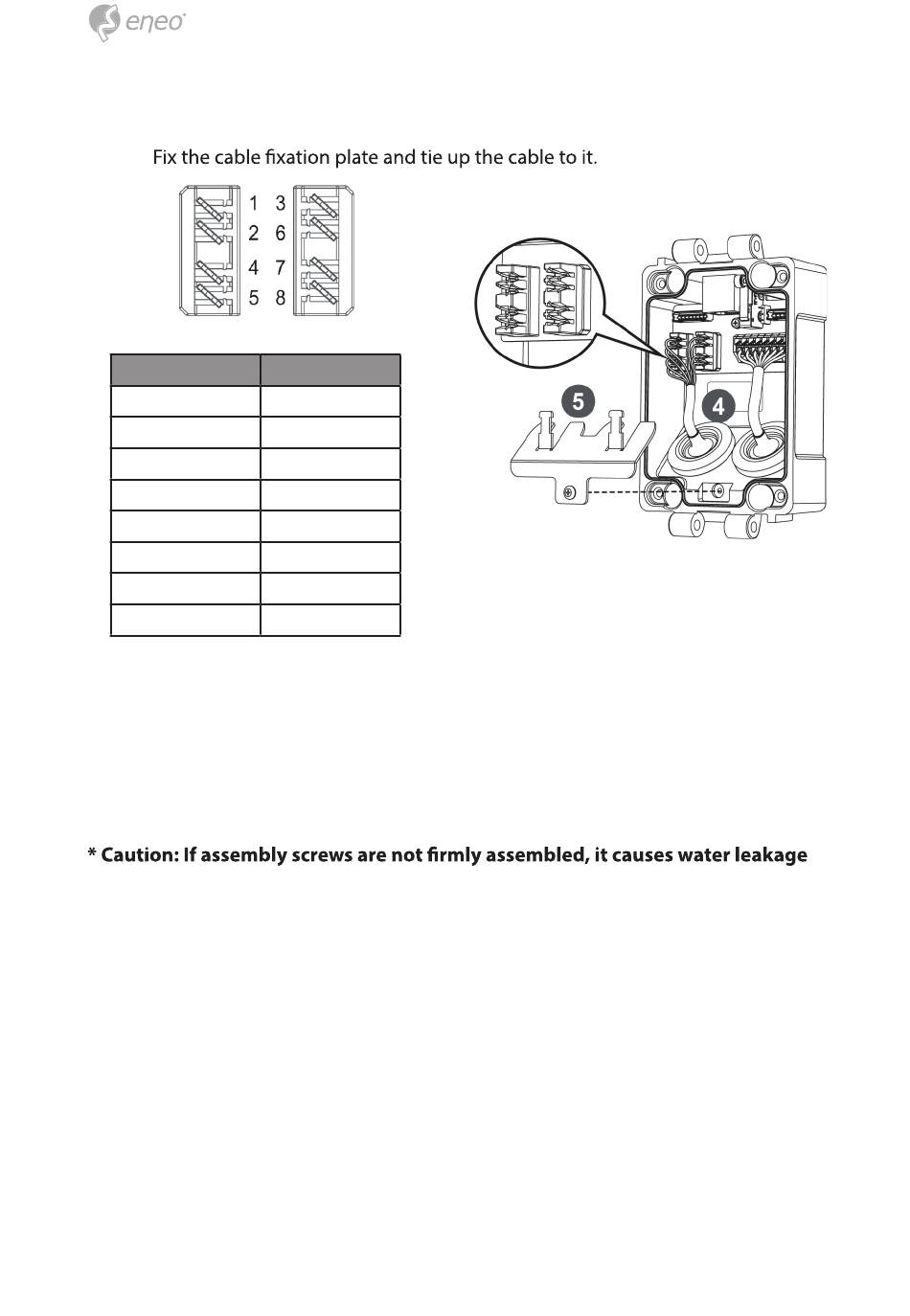

4. Hook up the Power & I/O wires and Network cable to the connectors. Network
cable can be connected to either RJ-45 connector or LSA connectors.
5.
TIA/EIA 568A
1. Green-White
2. Green
3. Orange-White
4. Blue
5. Blue-White
6. Orange
7. Brown-White
8. Brown
6. Assemble the Junction box top to the Junction box base using a hinge pin. Hinge
can be inserted at either side for convinience.
7. Connects the Power/Ethernet cables from camera.
8. Set Alarm Input Selection Jumper. ( Refer to 'Cover Opening Alarm and External
Alarm Input' )
9. Cover the Junction box top and tighten with assembly screws (4pcs).
10
TIA/EIA 568B
1. Orange-White
2. Orange
3. Green-White
4. Blue
5. Blue-White
6. Green
7. Brown-White
8. Brown
Connections to LSA connectors
