Ba�ery capacity:
Volts:
Charging:
Max simultaneous output: 270W (11A)
Power output (PTO):
VBG/15-pin ISO 12098
+24V
12/9
Gnd(-)
1/4
58L
5/5
58R
6/6
Cable area connec�on P-LIGHT:
In
3. 2,5 mm
2
4. 2,5 mm
2
6. 2,5 mm
2
Out
5. Max 100W
7. Max 100W
9. Max 200W
30. Solenoid 1 Front cover
31. Radio AUX,
(30, 31 0ch 32 max 200W)
32. Solenoid 2 Rear cover
34. Gnd (-) power (PTO)
41. Power output (PTO) Solenoid 80A
NOTE! APPLIES TO MAXI XL HYCOVER
In-line fuse holders, mounted between the batteries and fuses (20 A), must be installed after connection
and before P-LIGHT® is put into service. (Note: Sparks may occur when the controller starts and charges).
The obvious choice to cover the load on a hook lift trailer.
This is the original that has been around since the start of
the company.
A robust system that quickly covers the load without
the driver having to leave the ground. Even though
development is constantly progressing in terms of materials
P-LIGHT Maxi XL HyCover Ängsgården

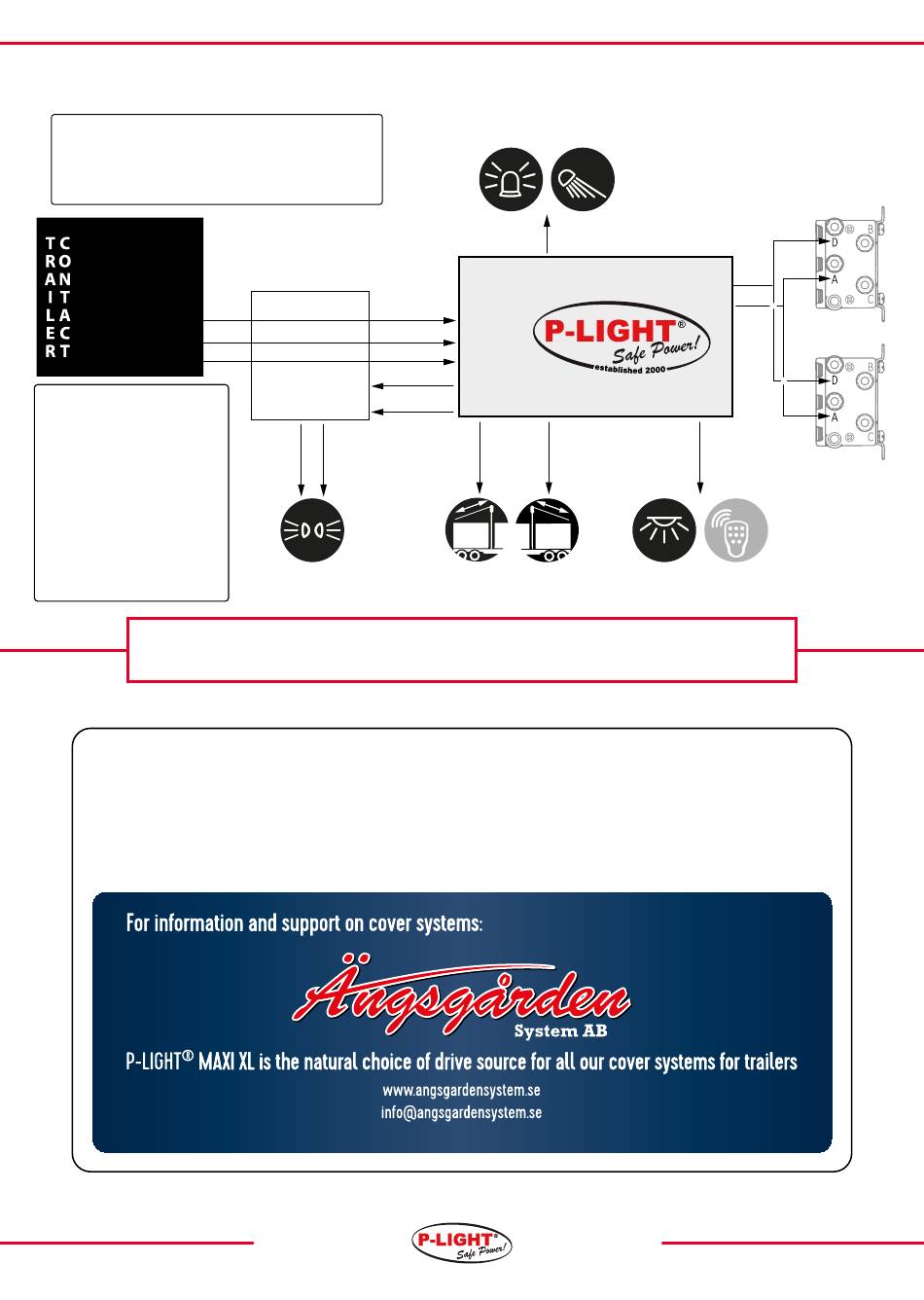

Connection Maxi XL HyCover Ängsgården
45Ah
24V
10A
80A
58 L
Clutch box
on trailer
58 R
58 L
58 R
Outgoing→
←Outgoing
ligh�ng
ligh�ng
circuit 1
circuit 2
support.p-light.com
HyCover tarp coverage with P-LIGHT Maxi XL
www.p-light.com
P-LIGHT must be connected in series in the ligh�ng circuit.
9
3
3
Control
4
unit
10A
6
5
Maxi XL HyCover
7
30
32
Front
Rear
and production the principle remains unchanged.
A cassette on a stand is raised with a lift, and a net is then
pulled forward covering the load. Simple. The system
is available in several designs to suit as many vehicle
combinations as possible.
+46 581-80 300
established 2000
41
Solenoid
34
1 och 2
31 AUX
13
