KWC ONO highflex 10.151.413.000 Montage- Und Serviceanleitung Seite 11

'TUCV\VGKNG
2KÄEGU FG TGEJCPIG
2G\\K FK TKECODKQ
4GRWGUVQU
5RCTG RCTVU

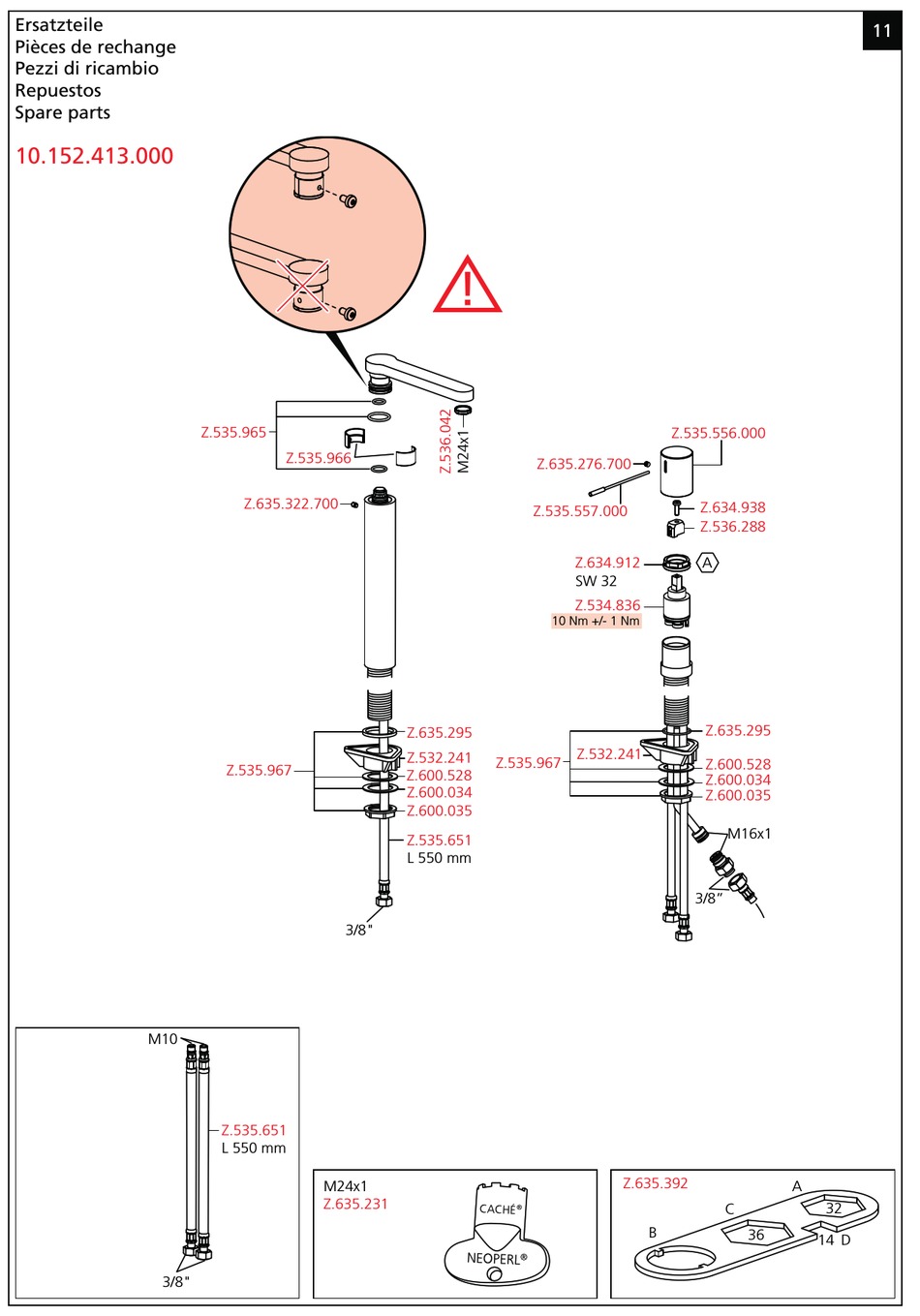

10.152.413.000
M10
3/8"
Z.535.965
Z.535.966
Z.635.322.700
Z.535.967
3/8"
Z.535.651
L 550 mm
M24x1
Z.635.231
Z.635.276.700
Z.535.557.000
Z.634.912
SW 32
Z.534.836
10 Nm +/- 1 Nm
Z.635.295
Z.532.241
Z.532.241
Z.535.967
Z.600.528
Z.600.034
Z.600.035
Z.535.651
L 550 mm
Z.535.556.000
Z.634.938
Z.536.288
A
Z.635.295
Z.600.528
Z.600.034
Z.600.035
M16x1
3/8"
Z.635.392
A
C
B
36
11
32
14 D
