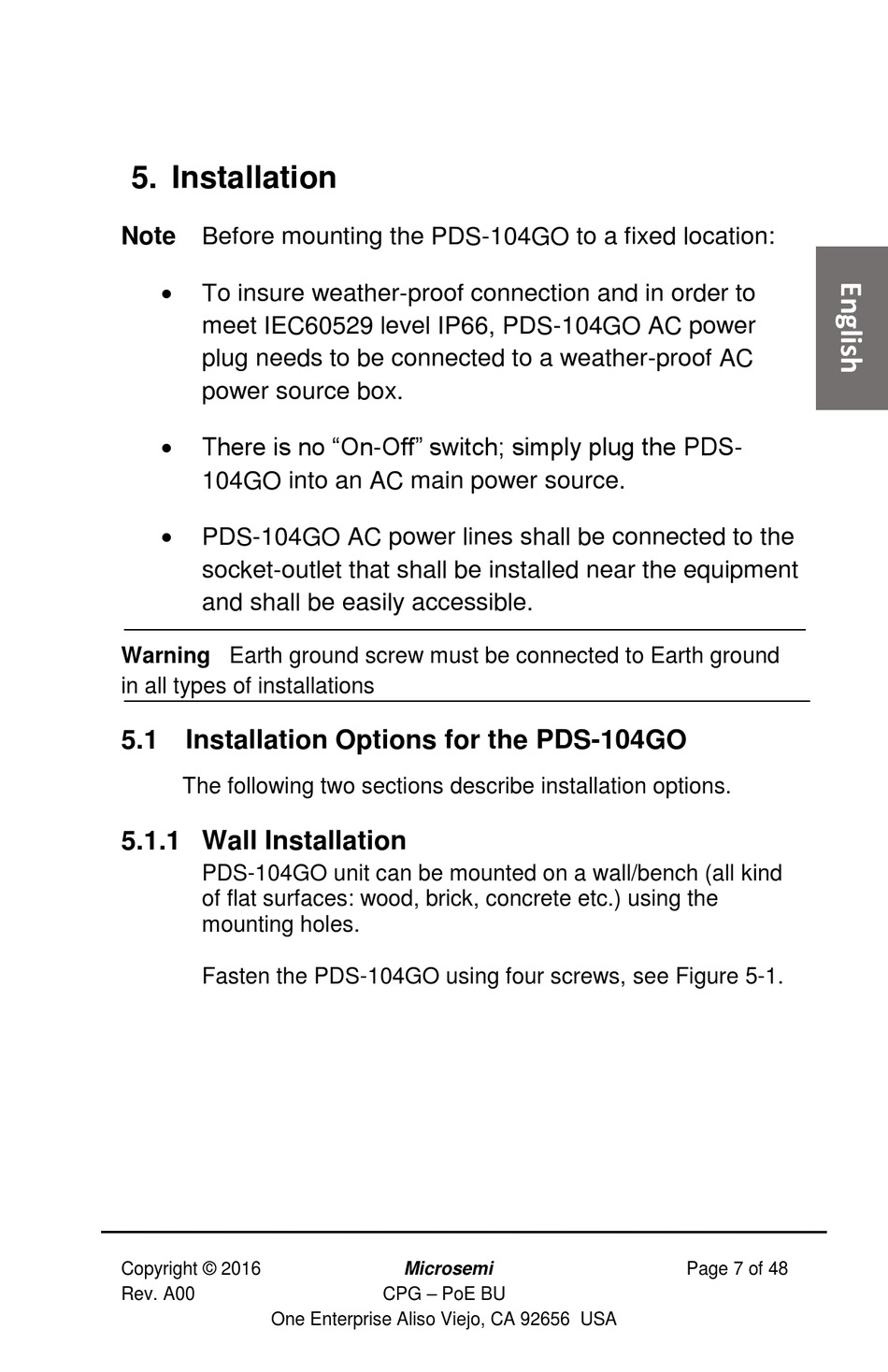

5. Installation

Note Before mounting the PDS-104GO to a fixed location:

To insure weather-proof connection and in order to
meet IEC60529 level IP66, PDS-104GO AC power
plug needs to be connected to a weather-proof AC
power source box.

There is no "On-Off" switch; simply plug the PDS-
104GO into an AC main power source.

PDS-104GO AC power lines shall be connected to the
socket-outlet that shall be installed near the equipment
and shall be easily accessible.
Warning Earth ground screw must be connected to Earth ground
in all types of installations

5.1 Installation Options for the PDS-104GO

The following two sections describe installation options.

5.1.1 Wall Installation

PDS-104GO unit can be mounted on a wall/bench (all kind
of flat surfaces: wood, brick, concrete etc.) using the
mounting holes.
Fasten the PDS-104GO using four screws, see Figure ‎ 5 -1.
