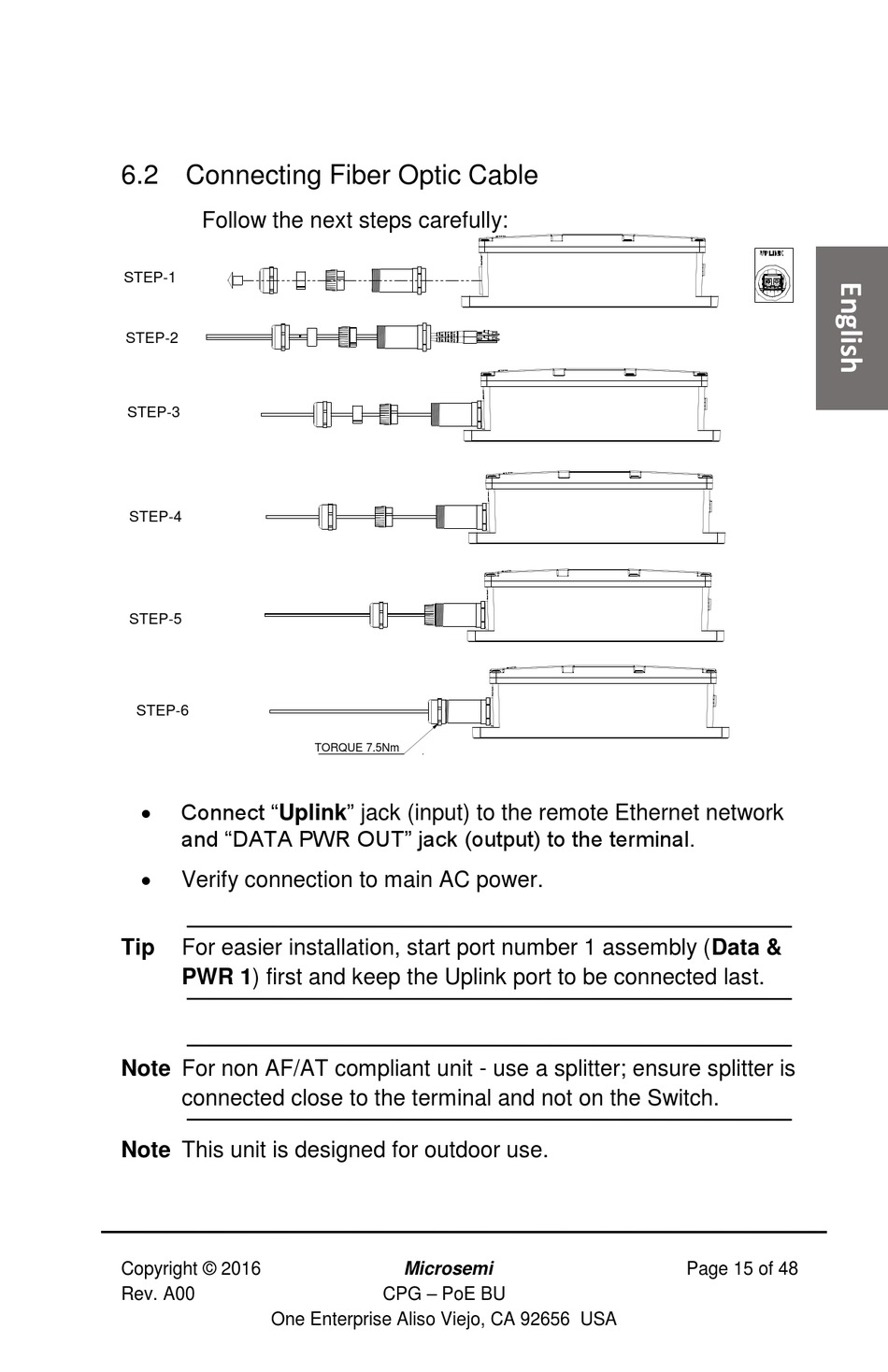

6.2 Connecting Fiber Optic Cable
Follow the next steps carefully:
STEP-1
STEP-2
STEP-3
STEP-4
STEP-5
STEP-6
Connect "Uplink" jack (input) to the remote Ethernet network
and "DATA PWR OUT" jack (output) to the terminal.
Verify connection to main AC power.
Tip
For easier installation, start port number 1 assembly (Data &
PWR 1) first and keep the Uplink port to be connected last.
Note For non AF/AT compliant unit - use a splitter; ensure splitter is
connected close to the terminal and not on the Switch.
Note This unit is designed for outdoor use.
