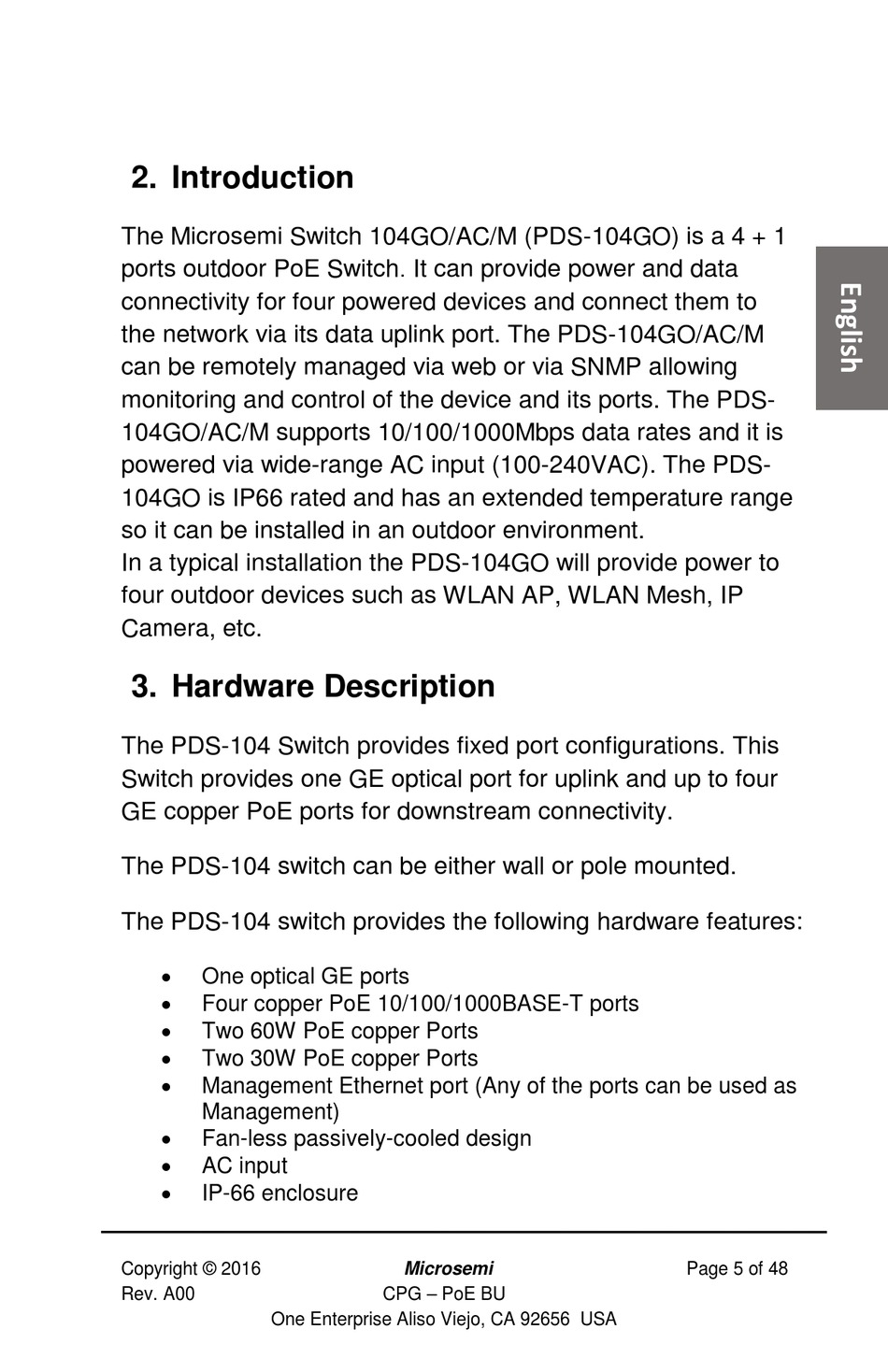

2. Introduction

The Microsemi Switch 104GO/AC/M (PDS-104GO) is a 4 + 1
ports outdoor PoE Switch. It can provide power and data
connectivity for four powered devices and connect them to
the network via its data uplink port. The PDS-104GO/AC/M
can be remotely managed via web or via SNMP allowing
monitoring and control of the device and its ports. The PDS-
104GO/AC/M supports 10/100/1000Mbps data rates and it is
powered via wide-range AC input (100-240VAC). The PDS-
104GO is IP66 rated and has an extended temperature range
so it can be installed in an outdoor environment.
In a typical installation the PDS-104GO will provide power to
four outdoor devices such as WLAN AP, WLAN Mesh, IP
Camera, etc.

3. Hardware Description

The PDS-104 Switch provides fixed port configurations. This
Switch provides one GE optical port for uplink and up to four
GE copper PoE ports for downstream connectivity.
The PDS-104 switch can be either wall or pole mounted.
The PDS-104 switch provides the following hardware features:

One optical GE ports

Four copper PoE 10/100/1000BASE-T ports

Two 60W PoE copper Ports

Two 30W PoE copper Ports

Management Ethernet port (Any of the ports can be used as
Management)

Fan-less passively-cooled design

AC input

IP-66 enclosure
