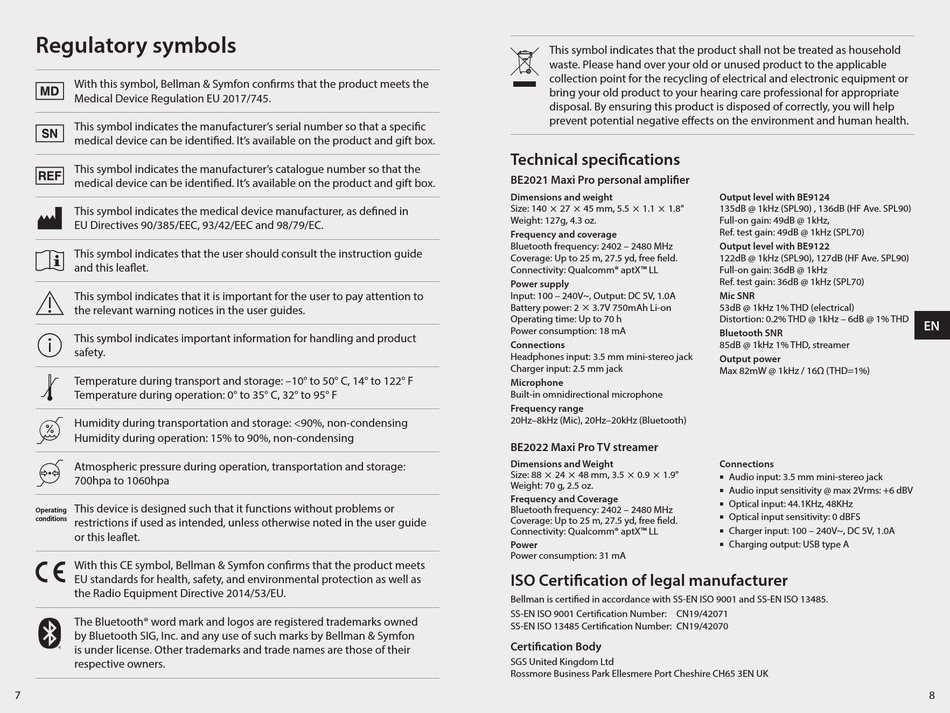

Regulatory symbols
With this symbol, Bellman & Symfon confirms that the product meets the
Medical Device Regulation EU 2017/745.
This symbol indicates the manufacturer's serial number so that a specific
medical device can be identified. It's available on the product and gift box.
This symbol indicates the manufacturer's catalogue number so that the
medical device can be identified. It's available on the product and gift box.
This symbol indicates the medical device manufacturer, as defined in
EU Directives 90/385/EEC, 93/42/EEC and 98/79/EC.
This symbol indicates that the user should consult the instruction guide
and this leaflet.
This symbol indicates that it is important for the user to pay attention to
the relevant warning notices in the user guides.
This symbol indicates important information for handling and product
safety.
Temperature during transport and storage: –10° to 50° C, 14° to 122° F
Temperature during operation: 0° to 35° C, 32° to 95° F
Humidity during transportation and storage: <90%, non-condensing
Humidity during operation: 15% to 90%, non-condensing
Atmospheric pressure during operation, transportation and storage:
700hpa to 1060hpa
This device is designed such that it functions without problems or
Operating
conditions
restrictions if used as intended, unless otherwise noted in the user guide
or this leaflet.
With this CE symbol, Bellman & Symfon confirms that the product meets
EU standards for health, safety, and environmental protection as well as
the Radio Equipment Directive 2014/53/EU.
The Bluetooth® word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc. and any use of such marks by Bellman & Symfon
is under license. Other trademarks and trade names are those of their
respective owners.
7
This symbol indicates that the product shall not be treated as household
waste. Please hand over your old or unused product to the applicable
collection point for the recycling of electrical and electronic equipment or
bring your old product to your hearing care professional for appropriate
disposal. By ensuring this product is disposed of correctly, you will help
prevent potential negative effects on the environment and human health.
Technical specifications
BE2021 Maxi Pro personal amplifier
Dimensions and weight
Size: 140  27  45 mm, 5.5  1.1  1.8"
Weight: 127g, 4.3 oz.
Frequency and coverage
Bluetooth frequency: 2402 – 2480 MHz
Coverage: Up to 25 m, 27.5 yd, free field.
Connectivity: Qualcomm® aptX™ LL
Power supply
Input: 100 – 240V~, Output: DC 5V, 1.0A
Battery power: 2  3.7V 750mAh Li-on
Operating time: Up to 70 h
Power consumption: 18 mA
Connections
Headphones input: 3.5 mm mini-stereo jack
Charger input: 2.5 mm jack
Microphone
Built-in omnidirectional microphone
Frequency range
20Hz–8kHz (Mic), 20Hz–20kHz (Bluetooth)
BE2022 Maxi Pro TV streamer
Dimensions and Weight
Size: 88  24  48 mm, 3.5  0.9  1.9"
Weight: 70 g, 2.5 oz.
Frequency and Coverage
Bluetooth frequency: 2402 – 2480 MHz
Coverage: Up to 25 m, 27.5 yd, free field.
Connectivity: Qualcomm® aptX™ LL
Power
Power consumption: 31 mA
ISO Certification of legal manufacturer
Bellman is certified in accordance with SS-EN ISO 9001 and SS-EN ISO 13485.
SS-EN ISO 9001 Certification Number: CN19/42071
SS-EN ISO 13485 Certification Number: CN19/42070
Certification Body
SGS United Kingdom Ltd
Rossmore Business Park Ellesmere Port Cheshire CH65 3EN UK
Output level with BE9124
135dB @ 1kHz (SPL90) , 136dB (HF Ave. SPL90)
Full-on gain: 49dB @ 1kHz,
Ref. test gain: 49dB @ 1kHz (SPL70)
Output level with BE9122
122dB @ 1kHz (SPL90), 127dB (HF Ave. SPL90)
Full-on gain: 36dB @ 1kHz
Ref. test gain: 36dB @ 1kHz (SPL70)
Mic SNR
53dB @ 1kHz 1% THD (electrical)
Distortion: 0.2% THD @ 1kHz – 6dB @ 1% THD
Bluetooth SNR
85dB @ 1kHz 1% THD, streamer
Output power
Max 82mW @ 1kHz / 16Ω (THD=1%)
Connections
Audio input: 3.5 mm mini-stereo jack

Audio input sensitivity @ max 2Vrms: +6 dBV

Optical input: 44.1KHz, 48KHz

Optical input sensitivity: 0 dBFS

Charger input: 100 – 240V~, DC 5V, 1.0A

Charging output: USB type A

