3. Unpacking and checking the device

1. Carefully unpack the scope of delivery.
2. Check whether the scope of delivery is complete:
Mantona Turnaround 360 Advanced 3
Micro USB cable for external power supply
Transport and storage bag
1/4 to 3/8 adapter (screwed into the bottom)
Screwing aid for the adapter
GoPro adapter
Smartphone holder
3. Check whether the scope of delivery is free of damage.
NOTE
If the scope of delivery is incomplete or damaged, please contact info@walser.de.
NOTE
Within the scope of product improvements we reserve the right for technical and
optical changes. Illustrations may differ slightly. Labelling as per
DIR (EG) 2017/1369 is not obligatory – specially developed for photo and video
requirements.
NOTE
Keep the original packaging for storing and carrying the device.

4. Summary of components and control elements

1
2
18
9
5
7
6

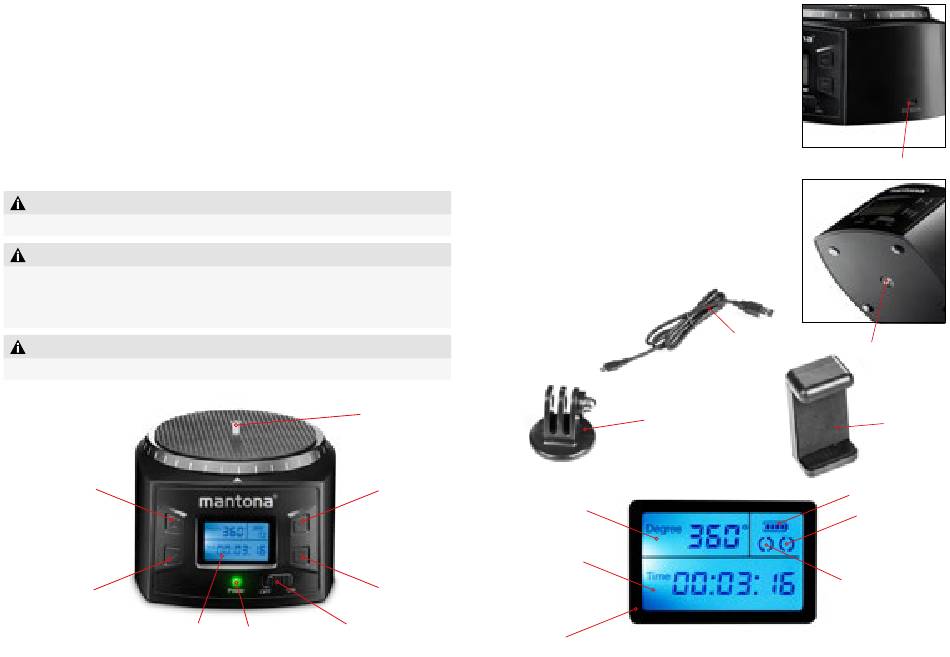

4.1 Overview of the control elements
1. Setting the parameters: „increase" button
2. Setting the parameters: „decrease" button
3. Menu button „SET"
4. Start/Stop button
5. On/off switch
6. LED indicator "Power"
7. LCD screen
8. Micro USB power port (DC in 5V/1A)
9. 1/4" screw thread (with protector) on the turntable
10. 3/8" thread with mounted 1/4" adapter
LCD screen function
11. Battery level display
12. Rotation angle
13. Rotation time
14. Clockwise rotation
15. Counter-clockwise rotation
Accessories
16. Micro USB cable
17. GoPro holder
18. Smartphone holder
