SCXI USB Modules
SCXI USB modules are plug-and-play, integrated signal conditioning modules that communicate
between an SCXI system and a USB-compatible computer or USB hub, so no intermediate DAQ device
is needed. SCXI USB modules, such as the SCXI-1600, cannot be used in a PXI/SCXI combination
chassis or in multichassis systems. After you install the module in the chassis, complete the following
steps:
1. Connect the USB cable from the computer port or from any other USB hub to the USB port on the
SCXI USB module.
2. Attach the cable to the strain relief using a cable tie.
1 Personal Computer
2 USB Hub
Adding a Module to an Existing SCXI System
You also can add a module to an existing SCXI system in multiplexed mode. If your system already has
a controller established, you can simply install additional SCXI modules in any available chassis slots
as previously described. Refer to the list of SCXI modules in
determine which module to connect to the cable adapter, if applicable.
1 New SCXI Module
2 Existing SCXI Module
© National Instruments Corporation
®
4 5
3
2
1
3
4

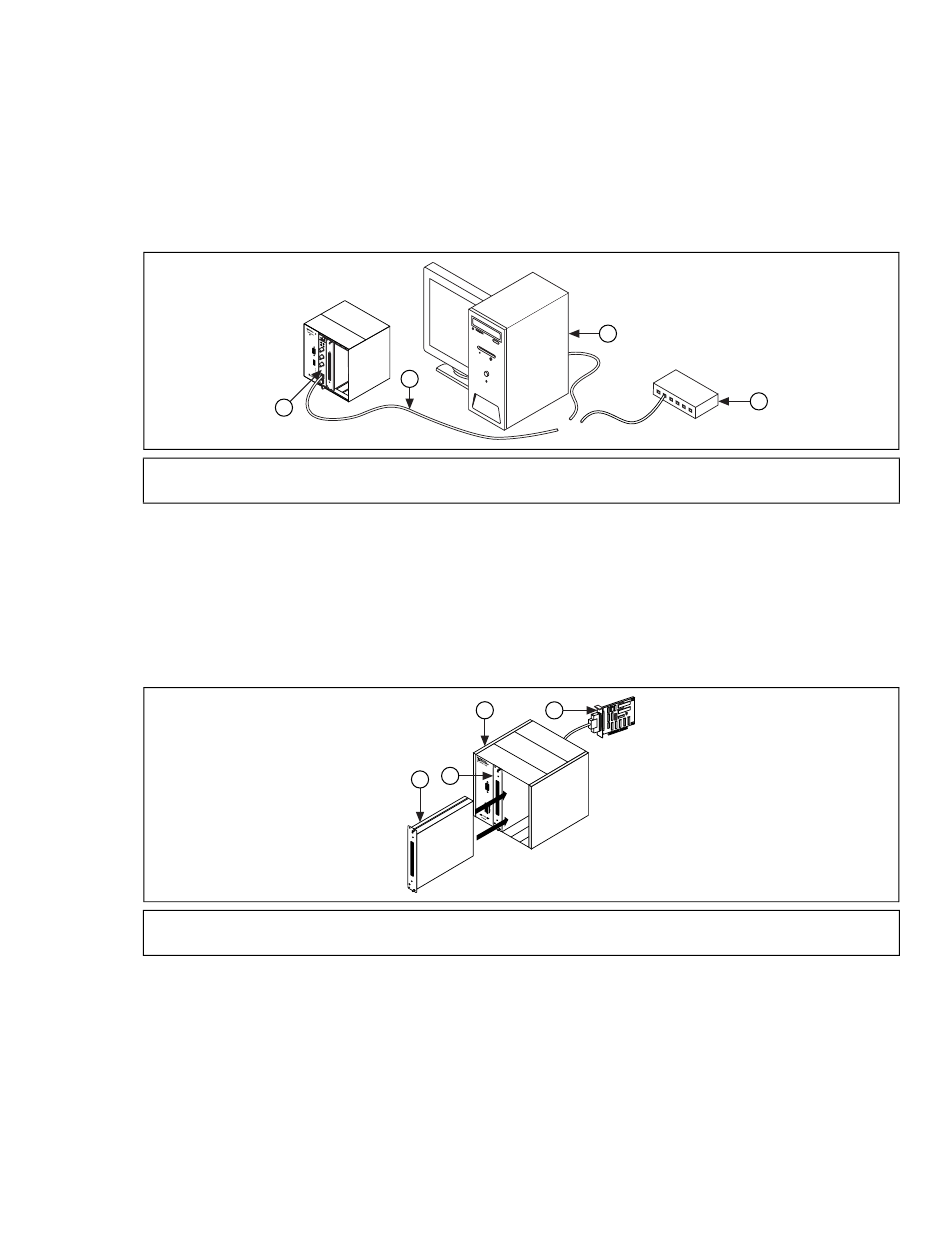

Figure 6. Installing an SCXI USB Module
2
1
Figure 7. Installing the SCXI Module in an Existing System
1
Or
3 USB Cable
4 SCXI USB Device
Step 7. Install the Cable Adapter
3 4
12
11
9 10
8
6 7
5
3 4
2
1
ON
3 SCXI Chassis
4 Existing DAQ Device
5
2
to
