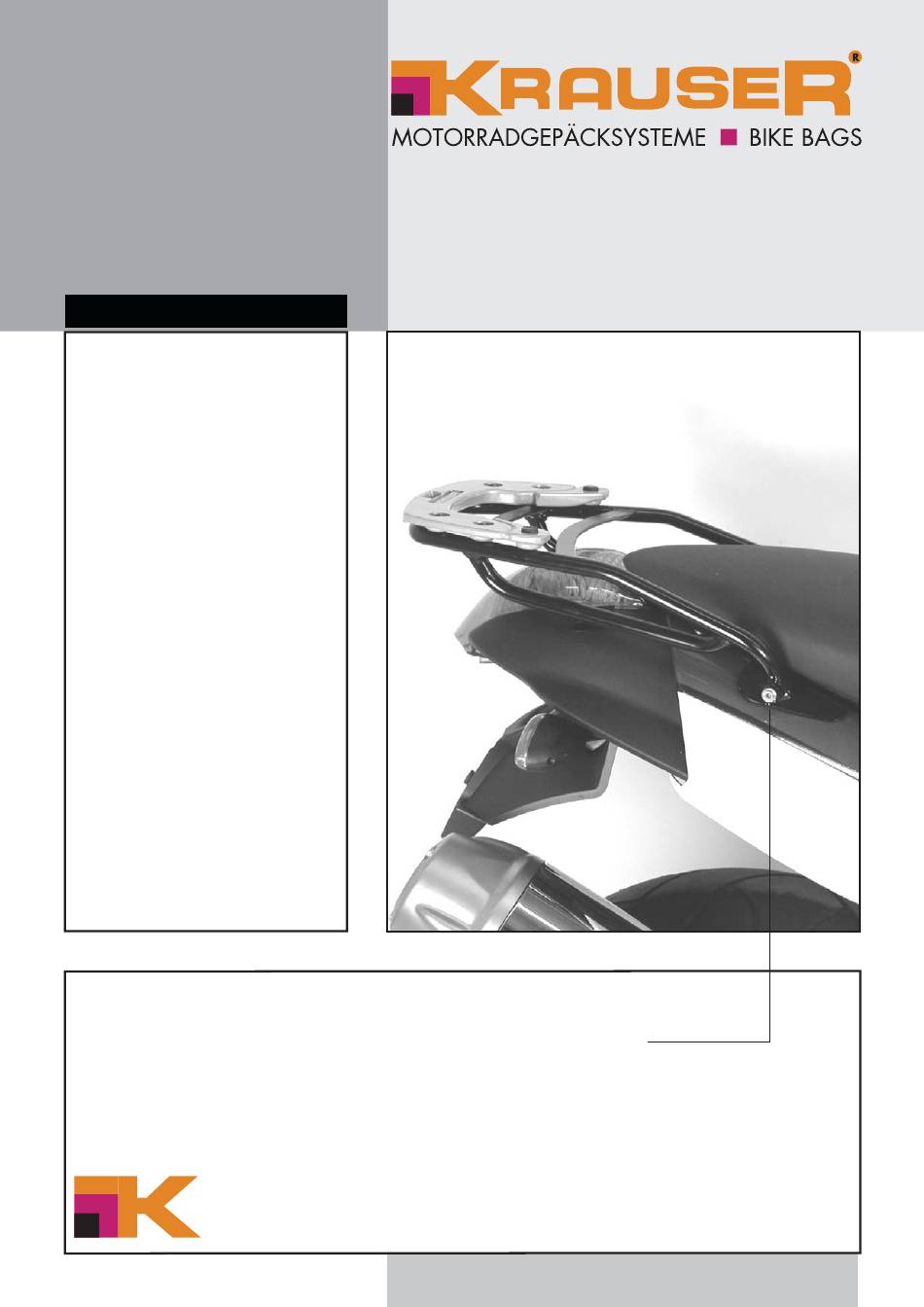

Krauser 4005.009.201 Montage Seite 3

Rear rack
BMW K 1200 S
Item - No.: 4005.009.201
BMW K 1300 S
Item - No.: 4005.021.201
Assembling instructions
quant item no. description
1 705.109 rear carrier
1 150.533 carrier part K-Wing
2 150.941 allen screw
M 5 x 20
2 270.112 washer ø5,4
1 270.109 rubber buffer
20 cm long
4 150.733 flange screw
M 6 x20
4 150.986 body washer
ø6,4 x ø18 mm
2 270.102 plastic-plug 16mm
1 330.300 emblem „Krauser"
Control all screw connections after the assembly for tightness!
Please notice our enclosed service information.
Notice:
This rear rack can be used with original BMW cases. In this case, use the original adapters
and fix them in the thraded holes in the Krauser rear rack.
