Program Setting - Reflecta 86801 Bedienungsanleitung

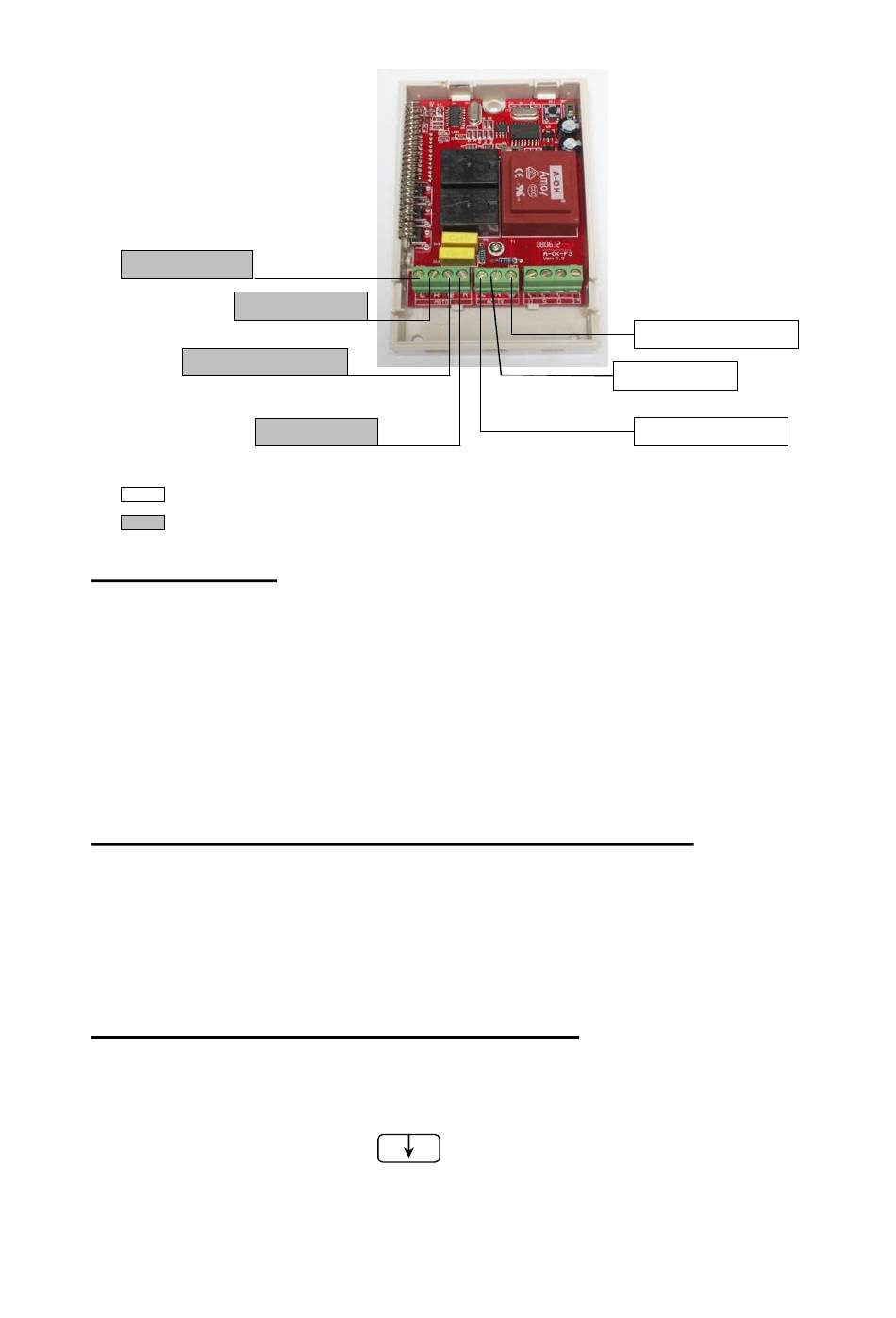

1 L: Brown
3 E: Green-Yellow
AC IN – MAINS PLUG
MOTOR – MOTOR CABLE

Program Setting

(4) Press the round button on the emitter to choose the channel needed to be set
(5) Press the setting button (KEY) till the (LED1) light of the receiver begins
flashing (the receiver will return to the original state if no operation is done
after 10 seconds)
(6) Press the program setting button on the rear of the emitter by ball pen till the
LED1 light of the receiver Stops flashing; now program is complete
The receiver can only store 20 channels. If trying to input the 21th channel, the
command will be ignored and the LED2 light of the receiver won't flash.
Delete all stored channels' memory from the receiver
(3) Press the program setting button (KEY) of the receiver for about 4 seconds till
the (LED1) light begins flashing quickly then loose it
(4) Press this button (KEY) again within six second still the (LED1) light stops
flashing. Now all the stored memory of the receiver have been deleted (within
10 seconds, when the LED1 light is flashing quickly. If no operation is done
the receiver will return to original state.
Delete the stored memeory of any channel
(3) Press the round button on the emitter to choose the channel needed to be
deleted
(4) Press the program setting button (KEY) of the receiver till the (LED!) begins
flashing. Now the receiver is waiting for the delete command of the emitter
(3) Press the „Down" button
receiver stops flashing means the memory has been deleted (the same way to
delete other channels)
2 R: Black
4 N: Blue
Seite 5 von 6 04.03.2016 reflecta gmbh
of the emitter. Now the (LED1) light of the
7 E: Green-Yellow
Black
6 N: Blue
5 L: Brown / Black
