Universal-Remote Control 86801
(The remote Control is fitted on the CrystalLine Motor Screens series)
Technical Characteristics
Mains Supply: AC200V-AC240V / AC100V-AC120V
Operating Temperature: -10 °C to 50 °C
Motor Control receiver RF 315 MHz / 433 MHz
NOTE: RF 315 MHz rang is not compatible with RF 433 MHz
Mounting of the Receiver (Recommendations)
Install the receiver with the cables entry pointing downwards to avoid water
infiltration. Do not install the receiver against or sheltered by a metallic part (it could
affect the radio transmission).
Minimum distance between the receiver and the floor: 150cm
Minimum distance between the receiver and the roof : 30cm
Minimum distance between the receiver and the transmitter: 30cm
Minimum distance between two receivers: 20cm

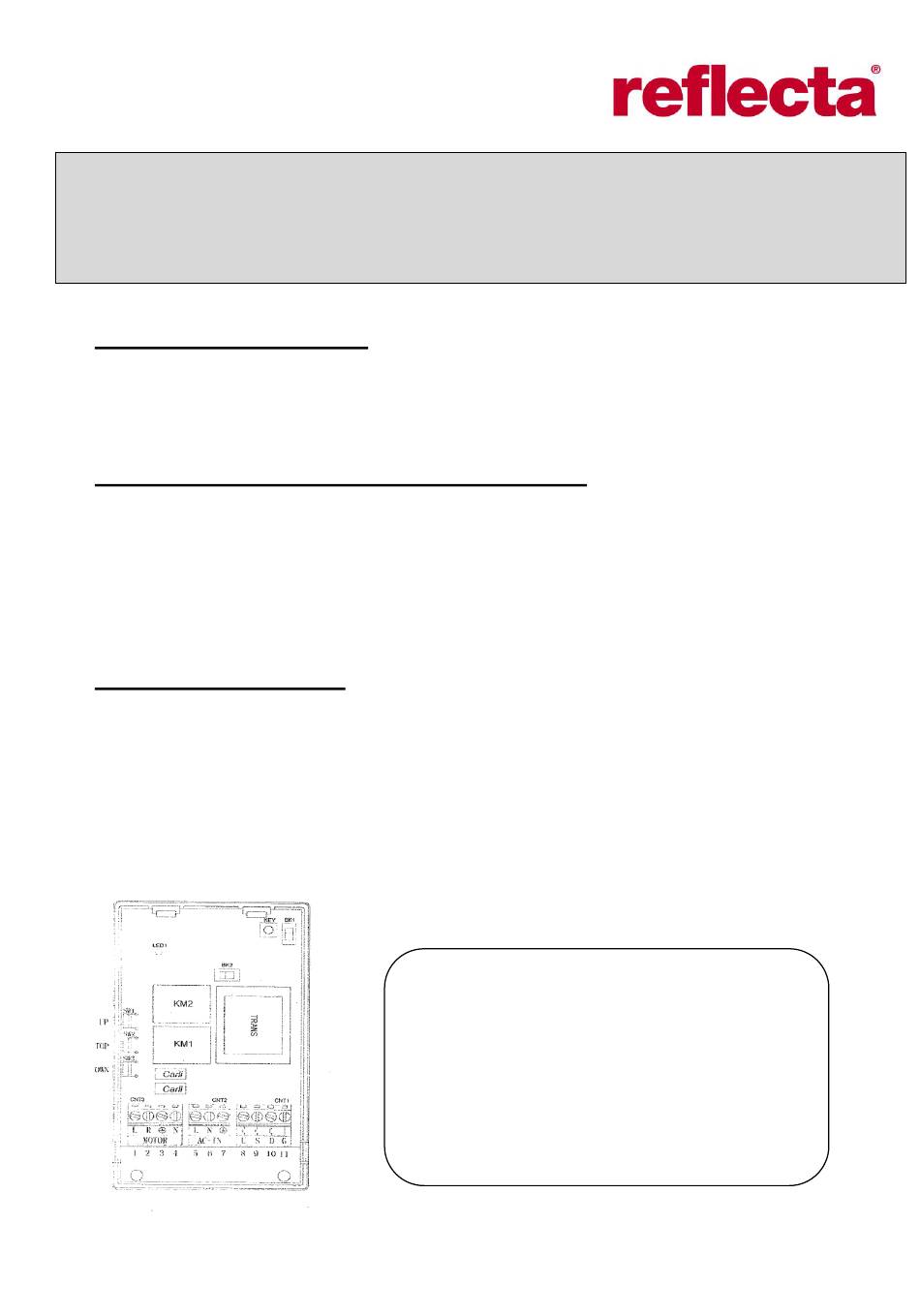

Cabling of the Receiver
The receiver is compatible with all standard A-OK tubular motors. Cabling
arrangements are shown in the diagram below. Respect the electrical standards in
force as well as the following points:
Disconnect the mains supply before carrying out any work
-
Be careful to avoid static electricity which could damage some electronic
-
components.
Use flexible cables
-
Ensure that no longitudinal forces act on the cable carriers after installation
-
Do not forget to connect the earth wires
-
Manual
Functions
LED 1: Operation LED
KEY:
BK1:
BK2:
Seite 4 von 6 04.03.2016 reflecta gmbh
Program setting button
Selection Switch
Motor: rotation UP / DOWN exchange
Selection Switch
Embedded switch: UP / DOWN exchange
-Radio Controlled
